TP-Link TL-SG2210MP
  • TP-Link TL-SG2210MP
  • TP-Link TL-SG2210MP
  • TP-Link TL-SG2210MP

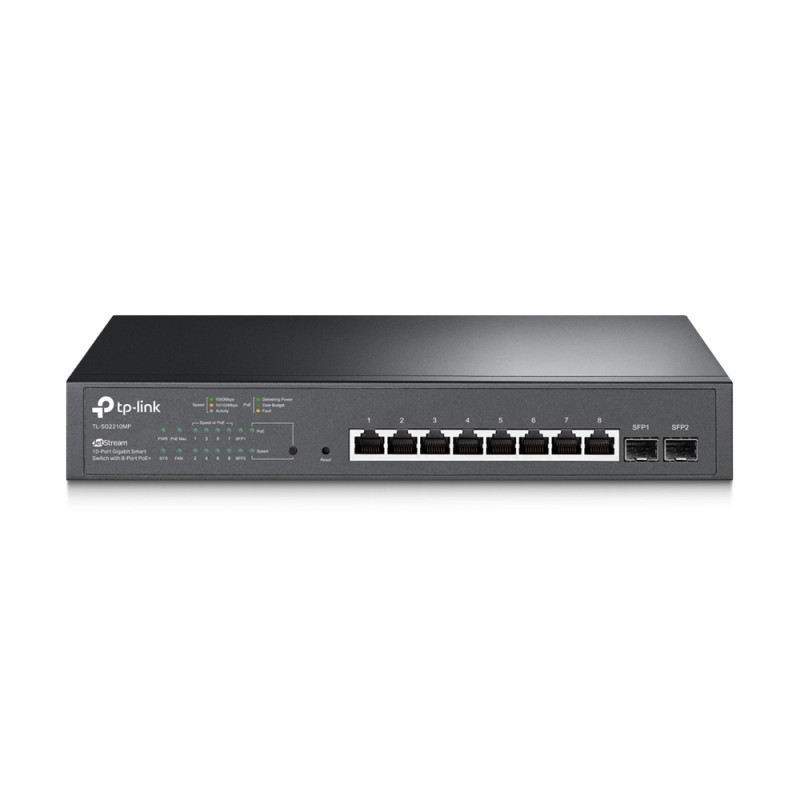

TP-Link TL-SG2210MP

JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
In Stock
Reference: TL-SG2210MP

Require Project Pricing?

Click here to email your parts list and we will send you a quote
  • 150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
  • Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.



Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

TP-Link
TL-SG2210MP

Data sheet

Certification
CE, FCC, RoHS
Network Media
10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m), 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m), 100BASE-FX: MMF, SMF, 1000BASE-X: MMF, SMF
PoE+ Ports(RJ45)
Standard: 802.3at/af compliant, PoE+ Ports: 8 Ports, Power Supply: 150 W
Packet Forwarding Rate
14.9 Mpps
Quality of Service
802.1p CoS/ DSCP priority, 8 priority queues, Priority Schedule Mode, SP (Strict Priority), WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control, Port/Flow based Rating Limit. Smoother Performance, Actions for flows, Mirror(to supported i...
L2 and L2+ Features
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports
per group
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux.
Physical Security Lock
Yes
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
L2 Features
Link Aggregation, static link aggregation, Up to 8 aggregation groups and up to 8 ports per group, 802.3ad LACP, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Prot...
L2 Multicast
512 IPv4,IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication, Static Group Config, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Multicas...
IPv6 Support
IPv6 Dual IPv4/IPv6

Specific References

EAN13
6935364030681
