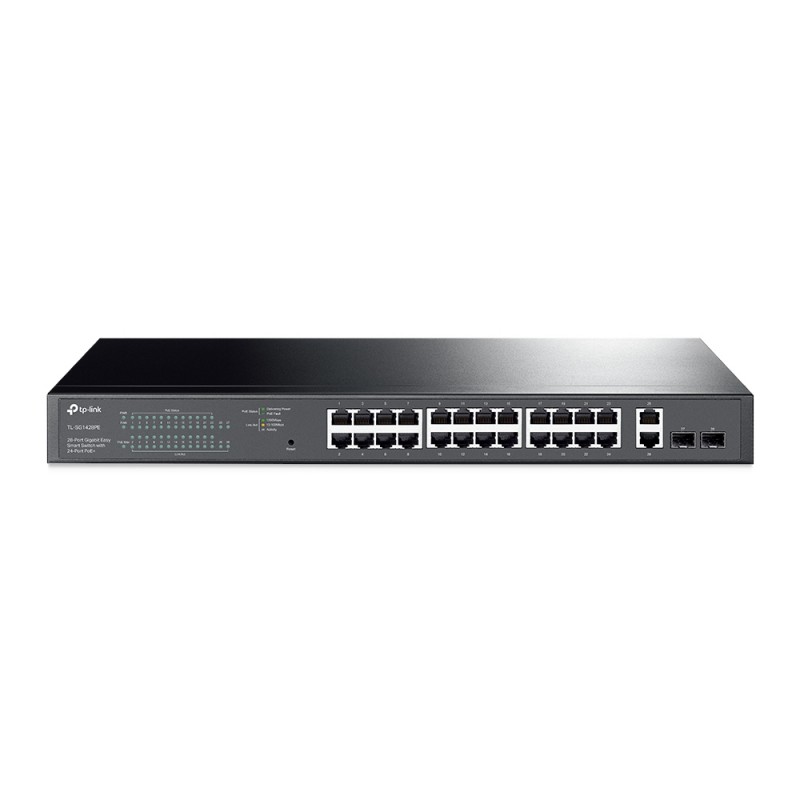

TP-Link TL-SG1428PE

28-Port Gigabit Easy Smart Switch with 24-Port PoE+
In Stock
Reference: TL-SG1428PE

Require Project Pricing?

Click here to email your parts list and we will send you a quote
  • 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
  • PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
  • Priority Mode helps to guarantee the quality of sensitive application like video monitoring
  • PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
  • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
  • Intelligent power management can protect the switch from overload



Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Making Management Easy

TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

TP-Link
TL-SG1428PE

Data sheet

Certification
CE, FCC, RoHS
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/T...
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant, PoE+ Ports: 24 Ports, Power Supply: 250 W
Packet Forwarding Rate
41.7 Mbps
Quality of Service
Support Port-based 802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control
VLAN
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
Physical Security Lock
Yes
L2 Features
IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, PoE Auto Recovery
