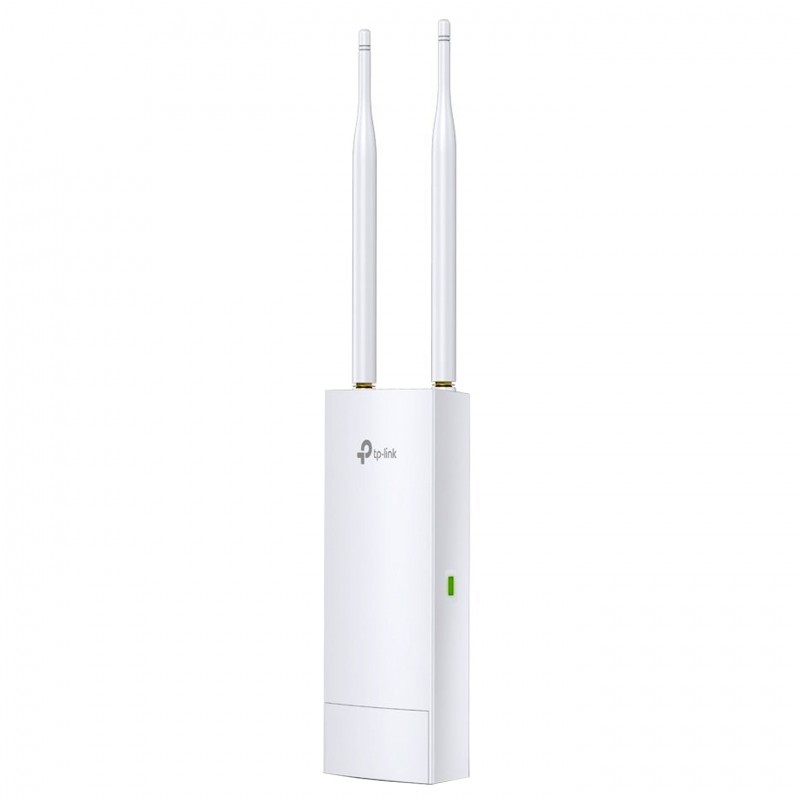

TP-LINK 300Mbps Wireless N Outdoor Access Point
TP-LINK 300Mbps Wireless N Outdoor Access Point TP-LINK 300Mbps Wireless N Outdoor Access Point TP-LINK 300Mbps Wireless N Outdoor Access Point TP-LINK 300Mbps Wireless N Outdoor Access Point TP-LINK 300Mbps Wireless N Outdoor Access Point TP-LINK 300Mbps Wireless N Outdoor Access Point TP-LINK 300Mbps Wireless N Outdoor Access Point TP-LINK 300Mbps Wireless N Outdoor Access Point

TP-LINK 300Mbps Wireless N Outdoor Access Point

300Mbps Wireless N Outdoor Access Point

EAP110-OUTDOOR V3

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Enjoy Wi-Fi Outside, Finally

Omada EAP110-Outdoor



Excellent Hardware Designs

With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.



Detachable Antennas

EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.



Delicate Appearance Even Better for Indoor Applications

EAP110-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm)



Supports Passive PoE for Easy Outdoor Set up

Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.



Flexible Deployment

EAP110-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.



Wi-Fi That Goes the Distance

With high transmission power and two high-gain omnidirectional antennas,

EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.



Specially Designed Weatherproof Enclosure for

Outdoor Environment

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.



Cloud Centralized Management

- Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.



Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
CertificationCE, FCC, RoHS
Depth46 mm
Ethernet LAN (RJ-45) ports1
Height34.7 mm
Operating temperature (T-T)-30 - 65 °C
Width403.9 mm
Product colourWhite
Number of SSID supported8

EAP110-OUTDOORV3.pdf

TP-LINK 300Mbps Wireless N Outdoor Access Point Data Sheet

Download (2.19M)
