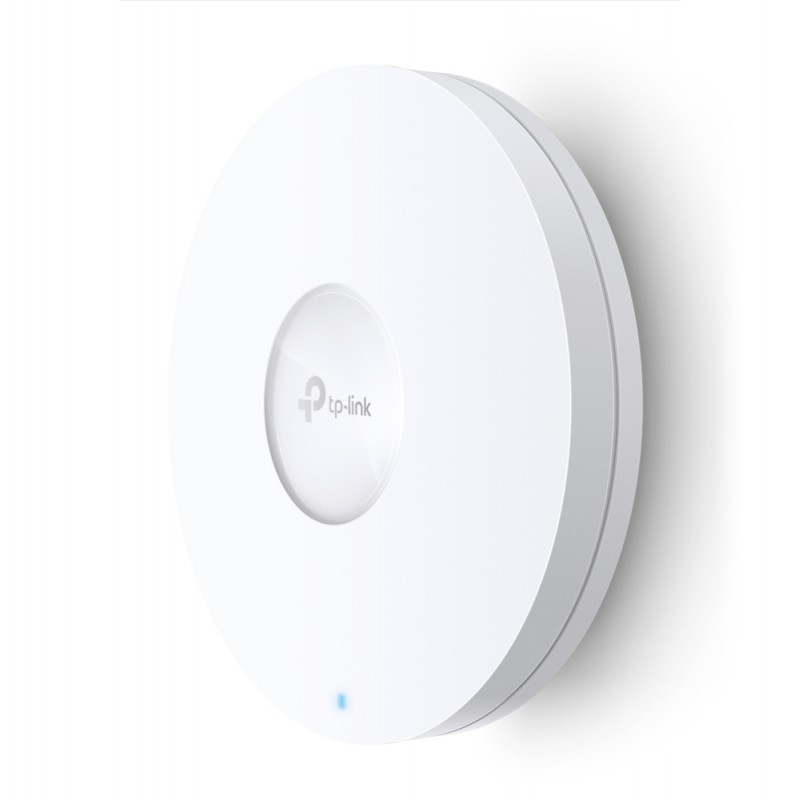

TP-LINK AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
TP-LINK AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point TP-LINK AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point TP-LINK AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point TP-LINK AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point TP-LINK AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point TP-LINK AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point TP-LINK AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point

TP-LINK AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point

1 x 2.5 Gbps Ethernet, 802.3at PoE, IEEE 802.11ax/ac/n/g/b/a, 2.4 GHz / 5 GHz, 243 × 243 × 64 mm

EAP660 HD

Stock Due 05-08-2024

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Ultra-High Performing AX3600 Enterprise Wireless for High-Density EnvironmentsHigh-Density Connectivity with 4× Increased Capacity OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.Blazing Fast Speed with 8 Spatial Streams The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.Omada SDN—Smarter Cloud Solution for Business Networking Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.Optimized Wired Performance with 2.5 GE PoE+ Port Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.Seamless Roaming 802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.△ This allows sensitive applications like VoIP and video conferences to go uninterrupted.Boost Network Efficiency in All Aspects With Rich Advanced FeaturesBand Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections.Load Balance ensures large numbers of users have smooth network experiences in high-density business networksAirtime Fairness Increases average network throughput in heavily congested environments
Depth243 mm
Ethernet LAN (RJ-45) ports1
Height64 mm
Operating temperature (T-T)0 - 40 °C
Width243 mm
Product colourWhite
Service Set Identifier (SSID) featuresMultiple SSIDs
Maximum data transfer rate (2.4 GHz)1148 Mbit/s
Maximum data transfer rate (5 GHz)2402 Mbit/s

eap660hd.pdf

TP-LINK AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point Data Sheet

Download (12.1M)
