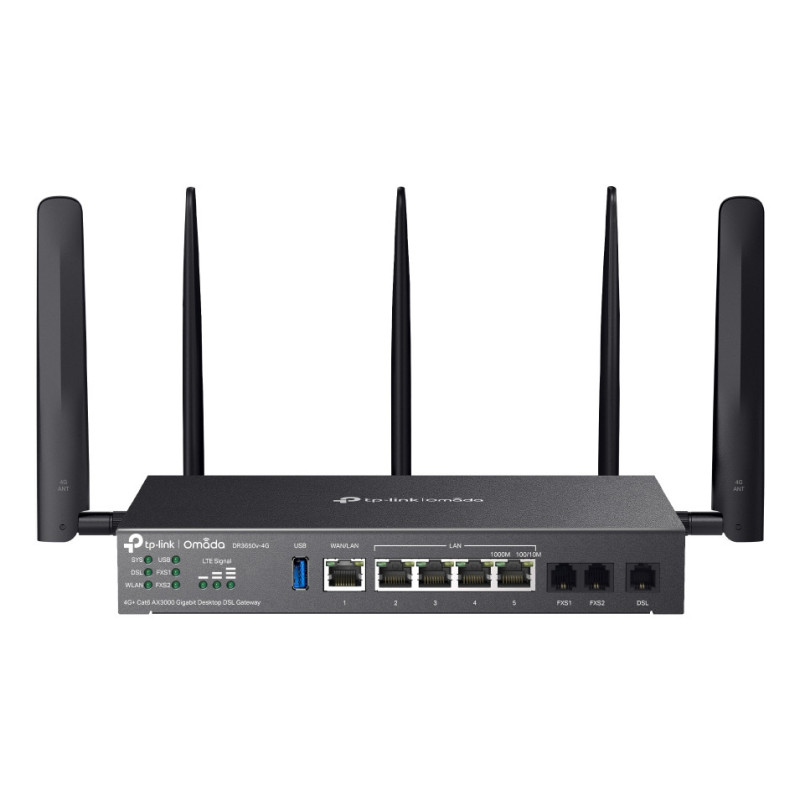

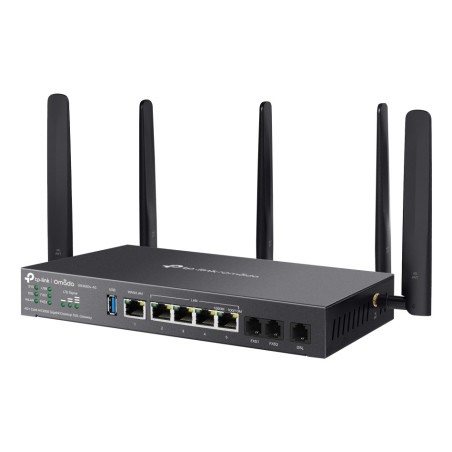

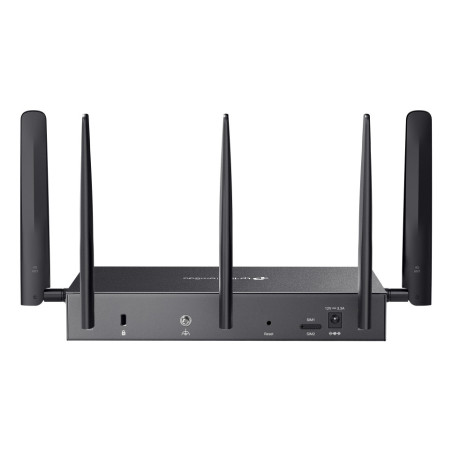

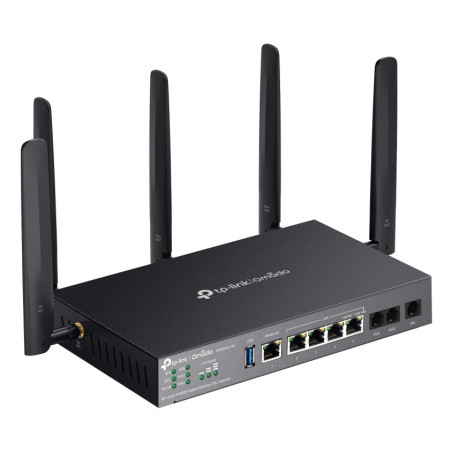

TP-Link DR3650V-4G

TP-Link Omada DR3650V-4G, Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, ADSL, ADSL2, Black, Tabletop router

In Stock

Description
Product Details

Reasons to Buy

4G+ Cat6 up to 300Mbps
2 x Embeded SlM Card Slots
Centralized Cloud Management
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
Load Balancing Between DSL and Ethernet WAN

Technical Headlines

Tabletop router Black
Dual-band (2.4 GHz / 5 GHz) 2402 Mbit/s
Gigabit Ethernet
Ethernet WAN DSL WAN 3G/4G USB modem compatibility
Ethernet LAN (RJ-45) ports: 4
USB port
Web-based management Quality of Service (QoS) support
MU-MIMO technology

Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.

Versatile Connectivity
DR3650v-4G's compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.

Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.

High-Security and High-Performance VPN
SSL/IPSec /GRE/WireGuard / PPTP/L2TP VPN &
OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.

Brand TP-Link

Reference DR3650V-4G

Data sheet

AC adapter included: Yes
Antenna gain level (max): 4.5 dBi
Antennas quantity: 5
Cables included: LAN (RJ-45), Phone
Cabling technology: 10/100/1000Base-T(X)
DC-in jack: Yes
Depth: 131.2 mm
Detachable antenna(s): Yes
DHCP client: Yes
DHCP server: Yes
DMZ support: Yes
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 4
Ethernet LAN data rates: 10,100,1000 Mbit/s
Height: 35 mm
Internal memory: 512 MB
Internal memory type: DDR4
LED indicators: DSL, LAN, USB, WLAN
Mean time between failures (MTBF): 671034 h
NAT functionality: One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering1
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Output voltage: 12 V
Power source type: AC
Quality of Service (QoS) support: Yes
Reset button: Yes
RJ-11 ports quantity: 3
Security algorithms: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Source data-sheet: Icecat.biz
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Universal Plug and Play (UPnP): Yes
URL filtering: Yes
USB port: Yes
VPN support: IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL
Web-based management: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Width: 226 mm
Ethernet WAN: Yes
WLAN data transfer rate (max): 2402 Mbit/s
ADSL2+: Yes
DSL WAN: Yes
SIM card slot: No
3G/4G USB modem compatibility: Yes
Product colour: Black
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 2402 Mbit/s
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Indication light: Yes
ADSL: Yes
ADSL2: Yes
Antenna included: Yes
Port triggering: Yes
MU-MIMO technology: Yes
Antenna design: External
