RackyRax 450mm Deep Wall Mounted Data Cabinets
Available in black in a range of heights and widths.
The compact design of the Rax 19” Wall Mounting Cabinets make them ideal for smaller networks and workgroups.
The cabinets are available in various sizes and are supplied fully assembled. Each cabinet comprises a welded steel frame and adjustable front and rear 19” mounting profiles.
A gland plate is situated in the top and bottom of the cabinet. The cabinets feature ventilation slots top and bottom; and have a lockable glass front door, and removable sides. The cabinet frameworks are finished in a high quality attractive black.
Details:

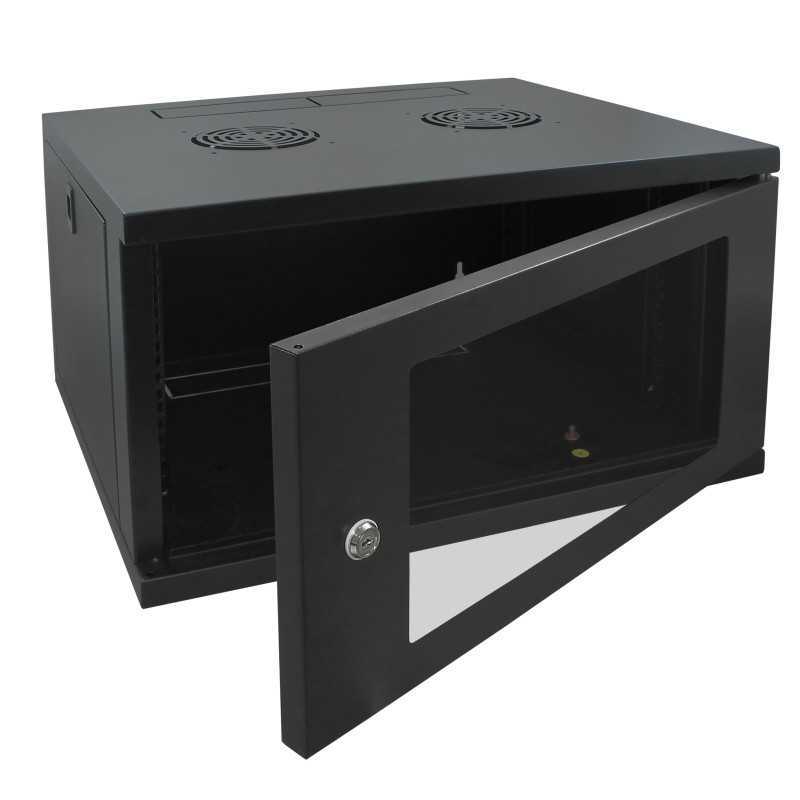

6u 450mm Deep Data Cabinet shown for illustration
Features:
- Supplied fully assembled
- Ventilated top
- Adjustable mounting posts
- Lockable and removable sides
- Cable access top and bottom
- Lockable glass front door
Dimensions By U Height
| U Height | Size (HxWxD) | Net Weight |
| 6U | 348x550x450 mm | 14 Kg |
| 9U | 481x550x450 mm | 17.5 kg |
| 12U | 615x550x450 mm | 21 Kg |
| 15U | 748x550x450 mm | 24.5 Kg |
| 18U | 881x550x450 mm | 29 Kg |
| 21U | 1015x550x450 mm | 32.5 Kg |
Maximum Internal Depth is 340mm
RR-W1-6-G
Data sheet
- Cable Entry
- Top & Bottom
- Construction
- Welded
- Depth
- 450mm
- Width
- 550mm
Specific References
- EAN13
- 5056045700592
Available in black in a range of heights and widths.
