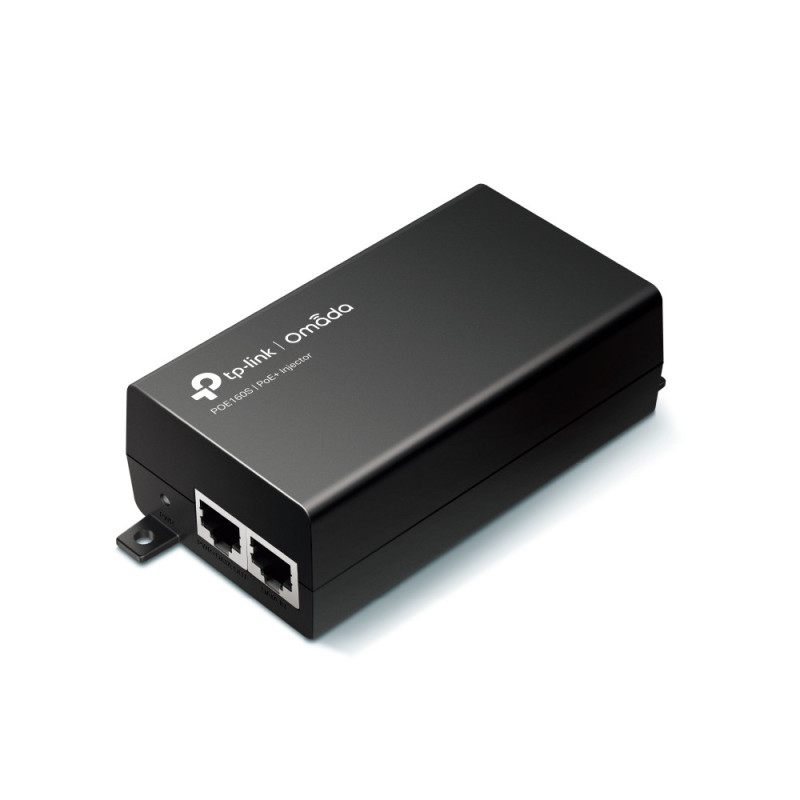

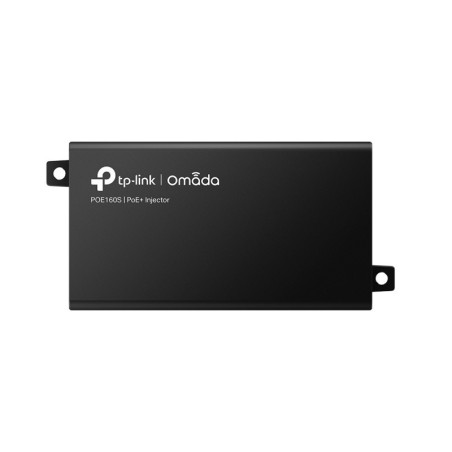

TP-Link PoE+ Injector

TP-Link Omada PoE+ Injector, Gigabit Ethernet, 10,100,1000 Mbit/s, 10/100/1000, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, Cat3, Cat4, Cat5, Cat5e, Black

In Stock

Description
Product Details

Reasons to Buy

2 Gigabit ports ensure faster transmission

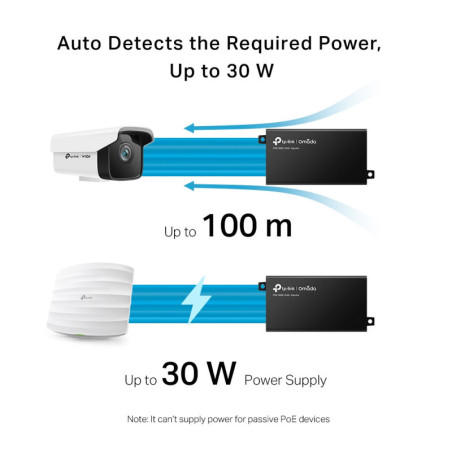

Complies with IEEE802.3af/at standards, supplies up to 30 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply

Technical Headlines

10,100,1000 Mbit/s Cat3, Cat4, Cat5, Cat5e 100 m
Power over Ethernet (PoE) IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Black

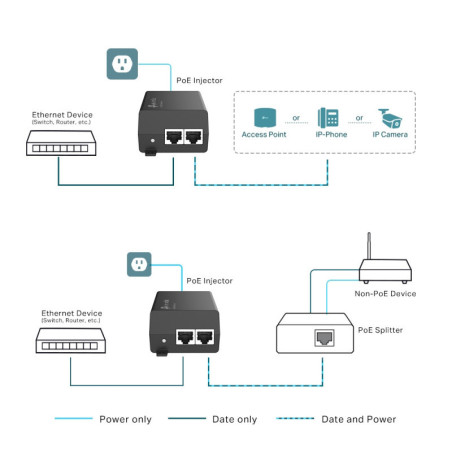

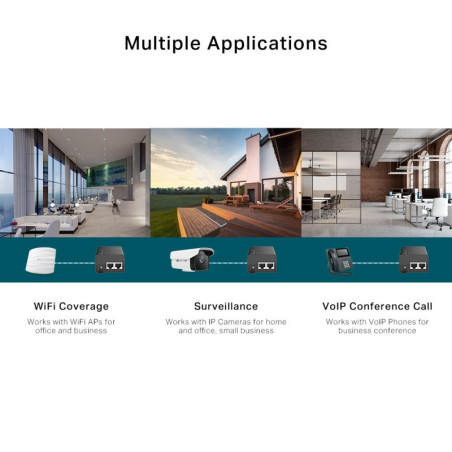

The PoE+ Injector POE160S (TL-POE160S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's POE10R (TL-POE10R), or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Brand TP-Link

Reference poe160s

Data sheet

AC adapter input voltage: 100 - 240 V
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Cabling technology: 10/100/1000
Depth: 59.4 mm
Height: 990mm
Maximum operating distance: 95 m
Networking standards: Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
Operating temperature (T-T): 8 - 35 °C
Output power: DC 9V
RJ-45 input ports: 2
RJ-45 output ports: 2
Storage temperature (T-T): 8 - 85 °C
Width: 993 mm
Product colour: White,Black
