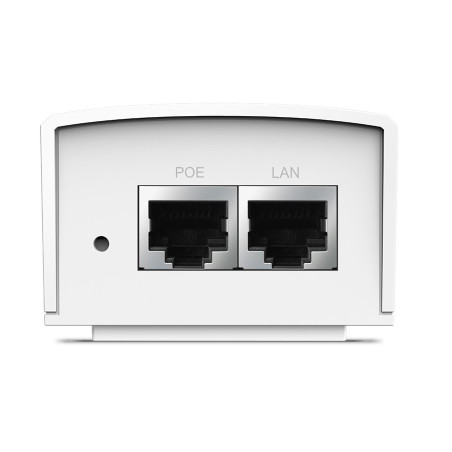

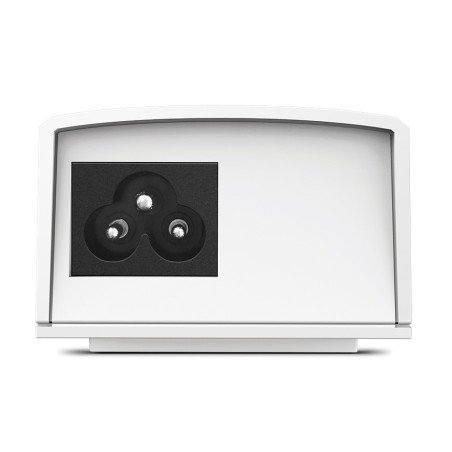

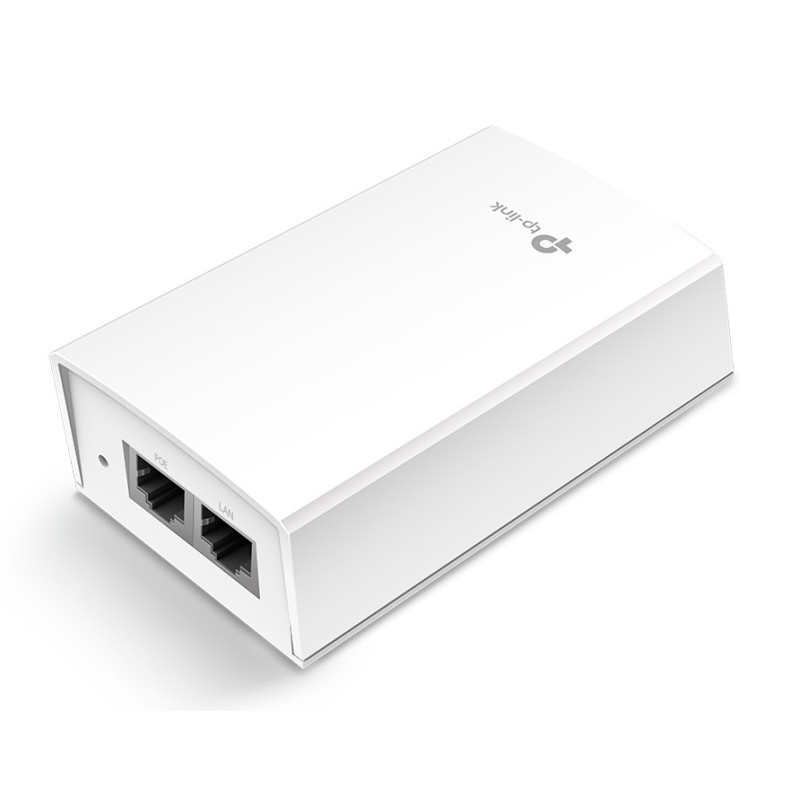

TP-Link 48V Passive PoE Adapter
TP-Link 48V Passive PoE Adapter, Gigabit Ethernet, 10,100,1000 Mbit/s, 10/100/1000, Cat3, Cat4, Cat5, Cat5e, Cat6, White, 100 m
Reasons to Buy
Technical Headlines
Passive PoE Adapter
Powers TP-Link products that
support 48V passive PoE
Power Your Devices
Use the passive PoE adapter TL-POE4824 to simultaneously supply power and transmit data to a passive PoE device.
Convenient Wall-Mounting Design
TL-POE4824 offers a convenient wall-mounting brackets to be easily installed on a wall.
- Gigabit network ports
- 48VDC passive PoE injector
- Auto-detect and auto-supply the necessary power required
- Convenient wall-mount kit
- Plug-and-Play, requires no configuration
Technical Headlines
- 10,100,1000 Mbit/s Cat3, Cat4, Cat5, Cat5e, Cat6 100 m
- Power over Ethernet (PoE)
- White
Passive PoE Adapter
Powers TP-Link products that
support 48V passive PoE
Power Your Devices
Use the passive PoE adapter TL-POE4824 to simultaneously supply power and transmit data to a passive PoE device.
Convenient Wall-Mounting Design
TL-POE4824 offers a convenient wall-mounting brackets to be easily installed on a wall.
Data sheet
- Cable types supported
- Cat3, Cat4, Cat5, Cat5e, Cat6
- Cabling technology
- 10/100/1000
- Certification
- FCC, CE, RoHS
- Depth
- 57 mm
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Height
- 38.8 mm
- LED indicators
- Power
- Maximum operating distance
- 100 m
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
32 - 104 °F - Output power
- 24 W
- Package height
- 65 mm
- Package weight
- 370 g
- Package width
- 65 mm
- Plug and Play
- Yes
- Power over Ethernet (PoE)
- Yes
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Width
- 110 mm
- Product colour
- White
- Harmonized System (HS) code
- 85044095
- Compliance certificates
- RoHS
Specific References
- EAN13
- 1210002611138
