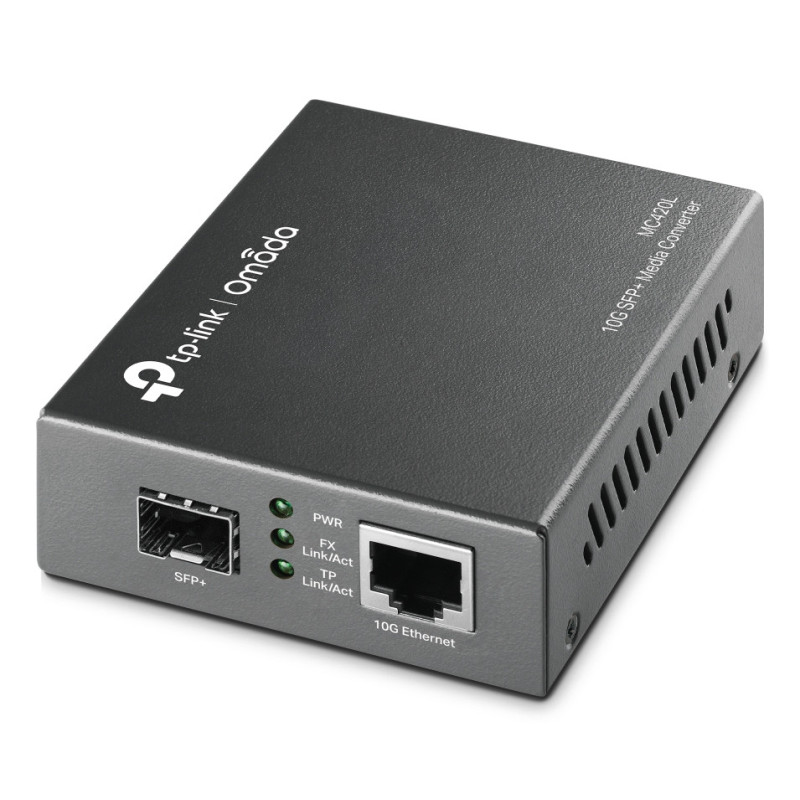

TP-Link Omada 10G Multi-Gigabit SFP Media Converter
TP-Link Omada 10G Multi-Gigabit SFP Media Converter, 10000 Mbit/s, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3x, IEEE 802.3z, 2.5GBASE-T, 10GBASE-T, 1000BASE-T, 10000 Mbit/s, Full, Half, 100 m
Reasons to Buy
Technical Headlines
What This Product Does
The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.
MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.
- 1× 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq
- FX port supports hot-swappable
- Maximum transmission distance depends on the inserting SFP
Technical Headlines
- Wired
- 10000 Mbit/s 100 m
- 2.5GBASE-T, 10GBASE-T, 1000BASE-T
- Ethernet LAN (RJ-45) ports: 1
- Multi-mode, Single-mode Fiber ports quantity: 1 SFP+
- Black
What This Product Does
The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.
MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.
Data sheet
- AC adapter included
- Yes
- Connectivity technology
- Wired
- Copper ethernet cabling technology
- 2.5GBASE-T, 10GBASE-T, 1000BASE-T
- Data transfer rate
- 10000 Mbit/s
- Depth
- 73 mm
- Ethernet LAN (RJ-45) ports
- 1
- Fiber optic connector
- SFP+
- Height
- 27 mm
- Internal
- No
- LED indicators
- Activity, Link, Power
- Manual
- Yes
- Maximum data transfer rate
- 10000 Mbit/s
- Maximum transfer distance
- 100 m
- Networking standards
- IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3x, IEEE 802.3z
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 50 °C
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Width
- 94.5 mm
- Product colour
- Black
- Compliance certificates
- RoHS, UL
Specific References
- EAN13
- 1210002607834
