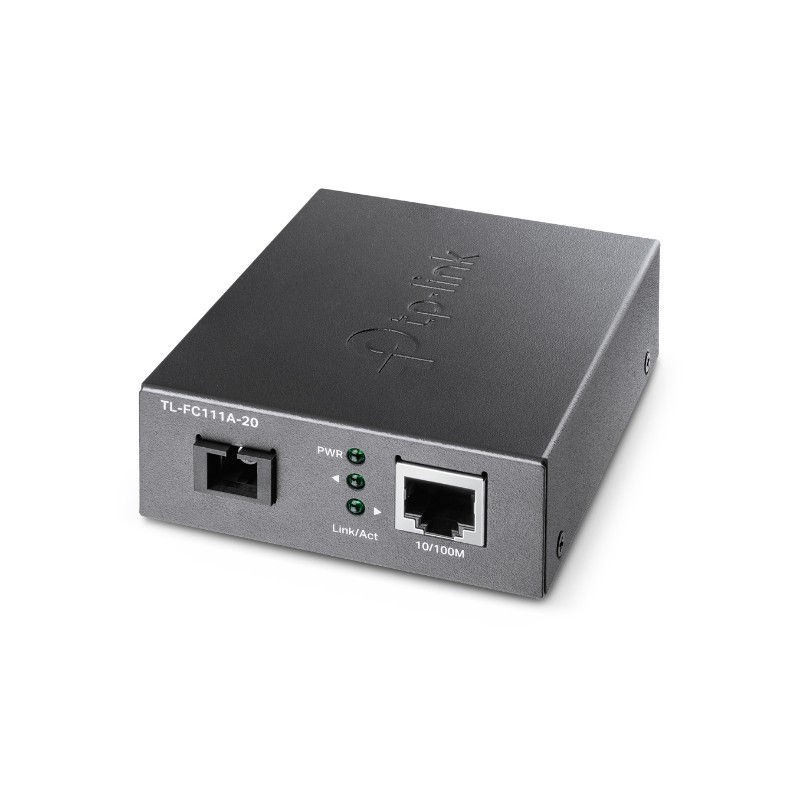

TP-LINK 10/100 Mbps WDM Media Converter
SC, RJ-45, 100Base-FX, 94.5x73x27 mm
What This Product Does
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Data sheet
- Auto MDI/MDI-X
- Y
- Cable types supported
- Cat3,Cat4,Cat5,Cat5e
- Certification
- FCC, CE
- Connectivity technology
- Wired
- Copper ethernet cabling technology
- 10BASE-T,100BASE-T
- Depth
- 73 mm
- Ethernet LAN (RJ-45) ports
- 1
- Fiber ethernet cabling technology
- 100Base-FX
- Fiber optic connector
- SC
- Flow control support
- Y
- Height
- 990mm
- Internal
- N
- LED indicators
- Activity,Link,Power
- Maximum data transfer rate
- 100 Mbit/s
- Maximum transfer distance
- 900 m
- Networking standards
- IEEE 802.3,IEEE 802.3i,IEEE 802.3u
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 50 °C
- Output voltage
- 5 V
- RoHS compliance
- Y
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- 8 - 85 °C
- Width
- 94.5 mm
- Product colour
- Black
- Fiber cable diameters supported (core/cladding)
- 9/125 µm
Specific References
- EAN13
- 6935364010966
