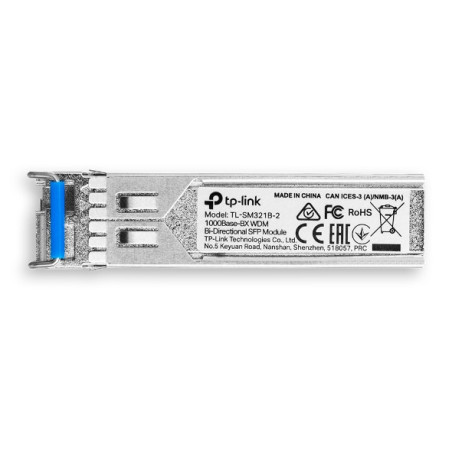

TP-Link TL-SM321B
TP-Link TL-SM321B, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, BX
Reasons to Buy

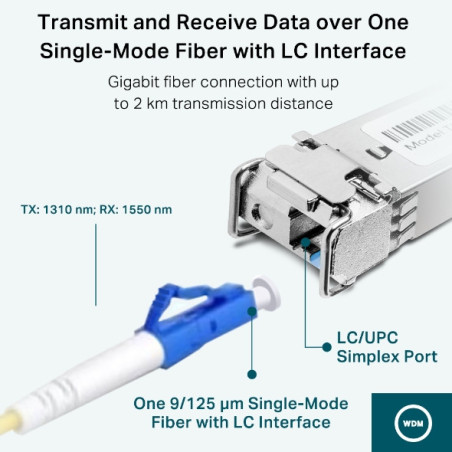

TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Pairing with TL-SM321A or MC111CS
- Compatible with T3700 series, T2700 series, T2600 series, T2500 series, T1700 series, T1600 series, T1500 series, 2/3/5 series switches and MC220L
TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
Data sheet
- Certification
- FCC, CE
- Depth
- 14.6 mm
- Fiber optic connector
- LC
- Height
- 12.9 mm
- Interface type
- SFP
- Maximum data transfer rate
- 1250 Mbit/s
- Maximum transfer distance
- 1000 m
- Networking standards
- IEEE 802.3z
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 70 °C
- Package height
- 38.5 mm
- Package weight
- 60 g
- Package width
- 81.5 mm
- Quantity per pack
- 1 pc(s)
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 80 °C
- User guide
- Yes
- Width
- 55.4 mm
- Product colour
- Metallic
- Fiber cable diameters supported (core/cladding)
- 9/125 µm
- Harmonized System (HS) code
- 85369010
- SFP transceiver standard
- BX
- Compliance certificates
- RoHS
Specific References
- EAN13
- 0845973030964
