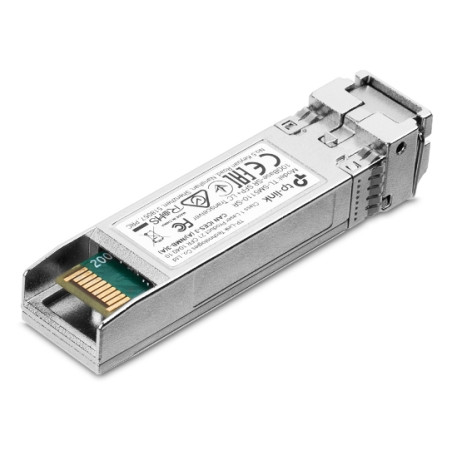

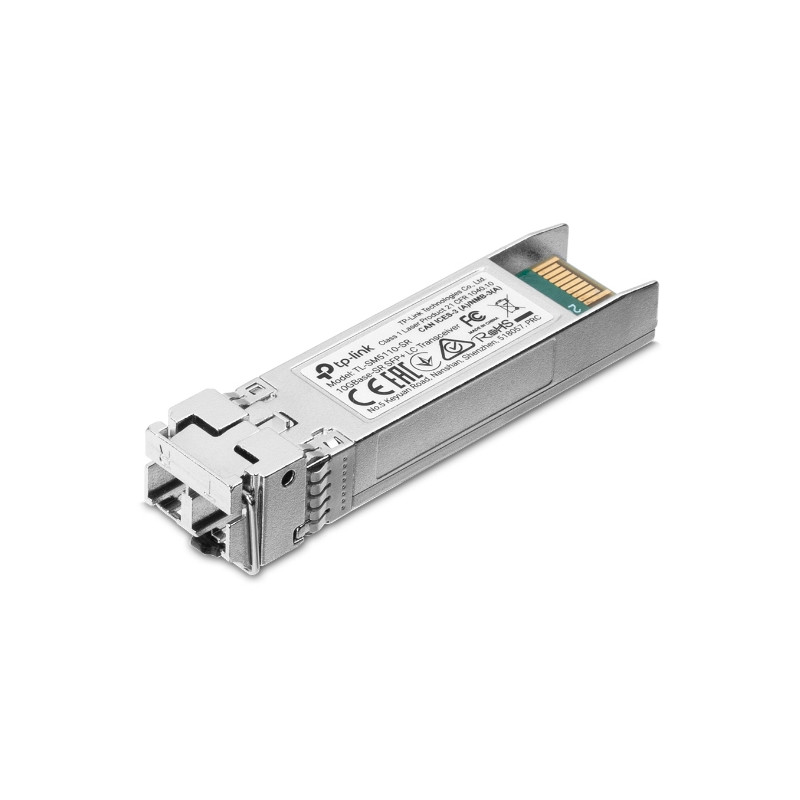

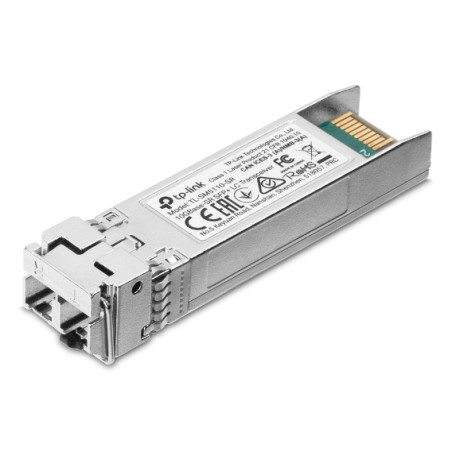

TP-Link SM6110-SR
TP-Link SM6110-SR, Fiber optic, 10000 Mbit/s, SFP+, LC (UPC), SR, 850 nm
Reasons to Buy
Technical Headlines
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
- Multi-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more
Technical Headlines
- SFP+ Fiber optic 10000 Mbit/s
- Wavelength: 850 nm
- Hot-swap
- Input voltage: 3.3 V
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Data sheet
- Certification
- FCC, CE
- Depth
- 14.5 mm
- Fiber optic connector
- LC (UPC)
- Height
- 12.2 mm
- Input voltage
- 3.3 V
- Interface type
- SFP+
- Maximum data transfer rate
- 10000 Mbit/s
- Operating relative humidity (H-H)
- 10 - 90%
- Quantity per pack
- 1 pc(s)
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 80 °C
- Wavelength
- 850 nm
- Width
- 61.3 mm
- SFP transceiver standard
- SR
- Minimum operating temperature
- 0 °C
Specific References
- EAN13
- 0810142821353
