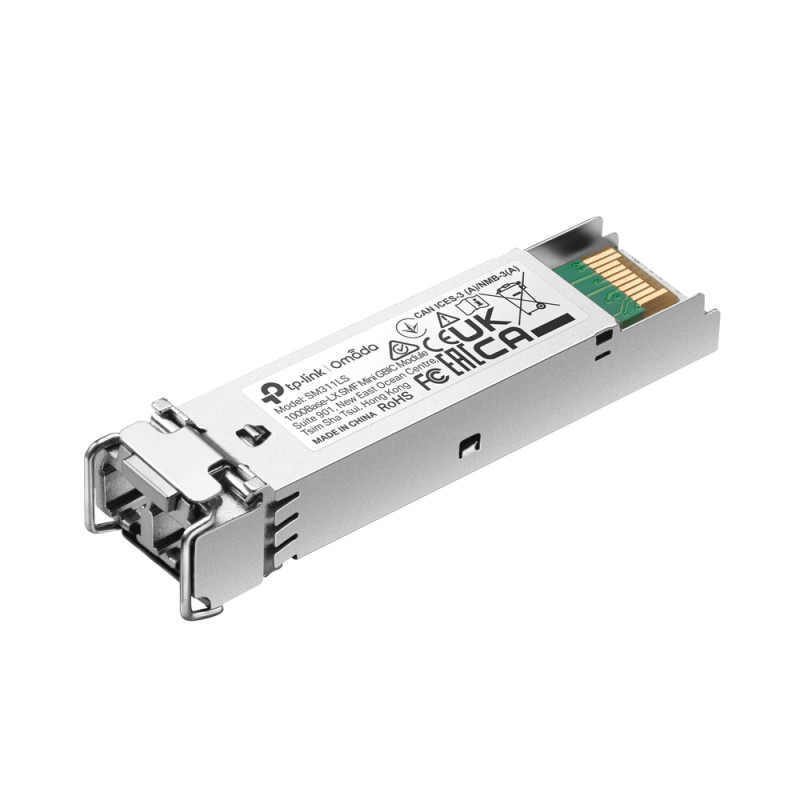

P-Link Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance

TP-Link Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance

TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance, Fiber optic, 1250 Mbit/s, mini-GBIC, LC, 9/125 µm, LX
In Stock
Reference: SM311LS

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Reasons to Buy
  • Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
  • Hot-Pluggable with maximum flexibility
  • Commercial Product Operating Temperature Range: 0-70°C


Technical Headlines
  • mini-GBIC Fiber optic 1250 Mbit/s
  • Wavelength: 1310 nm
  • Hot-swap Hot-Plug support
  • Input voltage: 3.3 V


The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
TP-Link

Data sheet

Depth
14.6 mm
Fiber ethernet cabling technology
1000BASE
Fiber optic connector
LC
Height
12.9 mm
Hot-Plug support
Yes
Input voltage
3.3 V
Interface type
mini-GBIC
Manual
Yes
Maximum data transfer rate
1250 Mbit/s
Maximum transfer distance
20000 m
Networking standards
IEEE 802.3z
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 70 °C
Package height
38 mm
Package weight
110 g
Package width
38 mm
Quantity per pack
1 pc(s)
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 85 °C
Wavelength
1310 nm
Width
55.4 mm
Product colour
Silver
Fiber cable diameters supported (core/cladding)
9/125 µm
SFP transceiver standard
LX
Compliance certificates
CE, Federal Communications Commission (FCC)

Specific References

EAN13
6935364030216

SM311LS.pdf

TP-Link Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance Data Sheet

Download (351.08KB)
