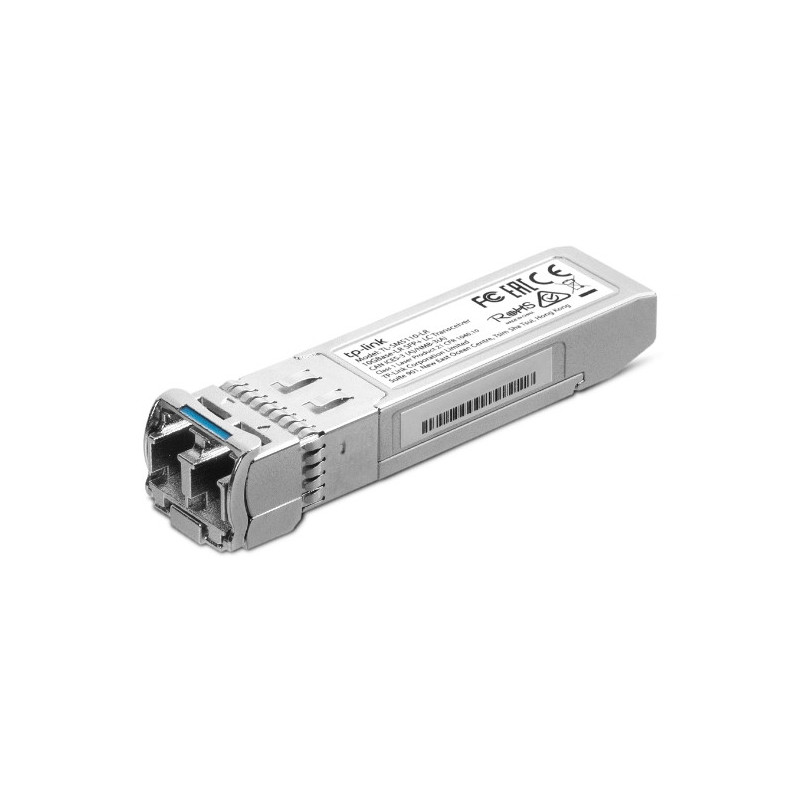

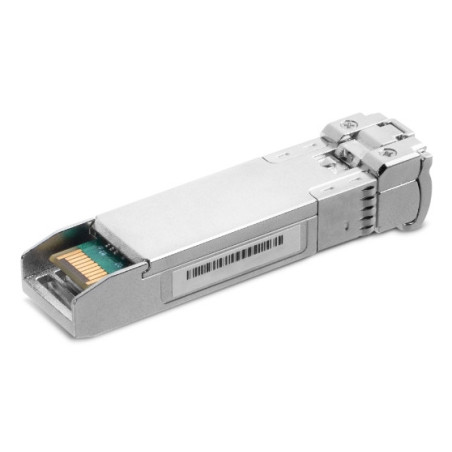

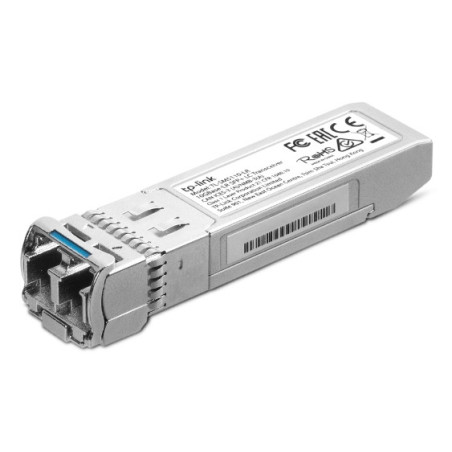

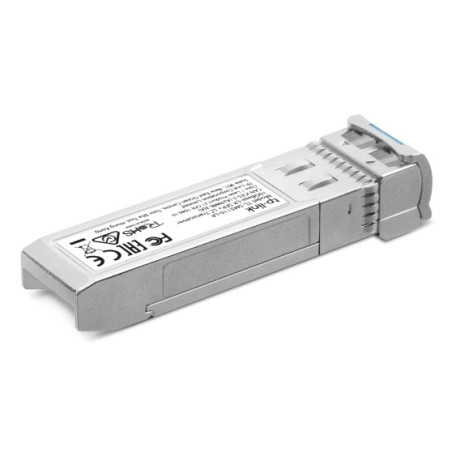

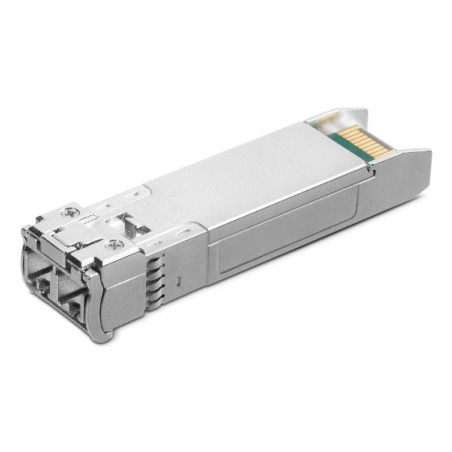

TP-Link SM5110-LR

Data sheet

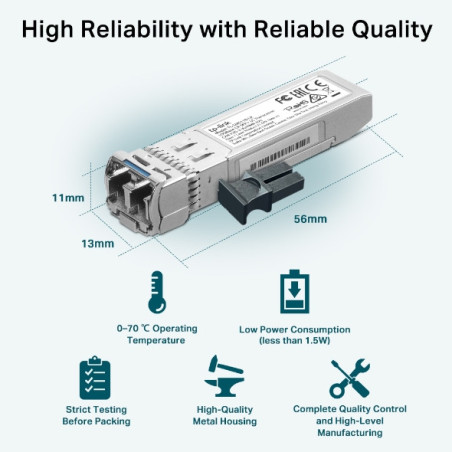

Depth

13.9 mm

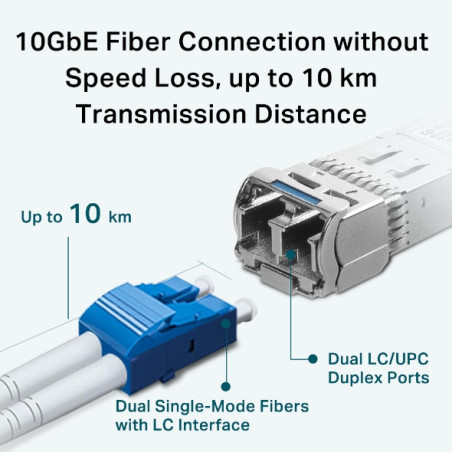

Fiber optic connector

LC

Height

10.3 mm

Input voltage

3.3 V

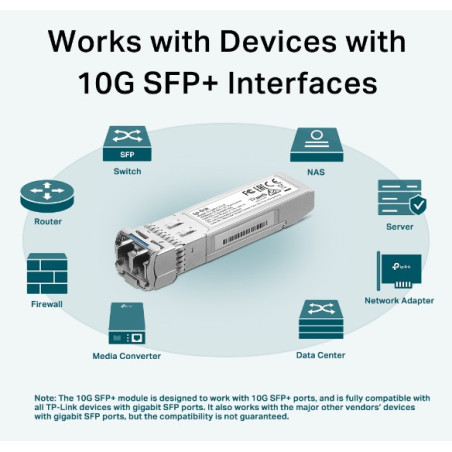

Interface type

SFP+

Maximum data transfer rate

10000 Mbit/s

Maximum transfer distance

10000 m

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

0 - 70 °C

Source data-sheet

Icecat.biz

Storage relative humidity (H-H)

5 - 90%

Storage temperature (T-T)

-40 - 85 °C

Wavelength

1310 nm

Width

56.7 mm

Fiber cable diameters supported (core/cladding)

9/125 µm
