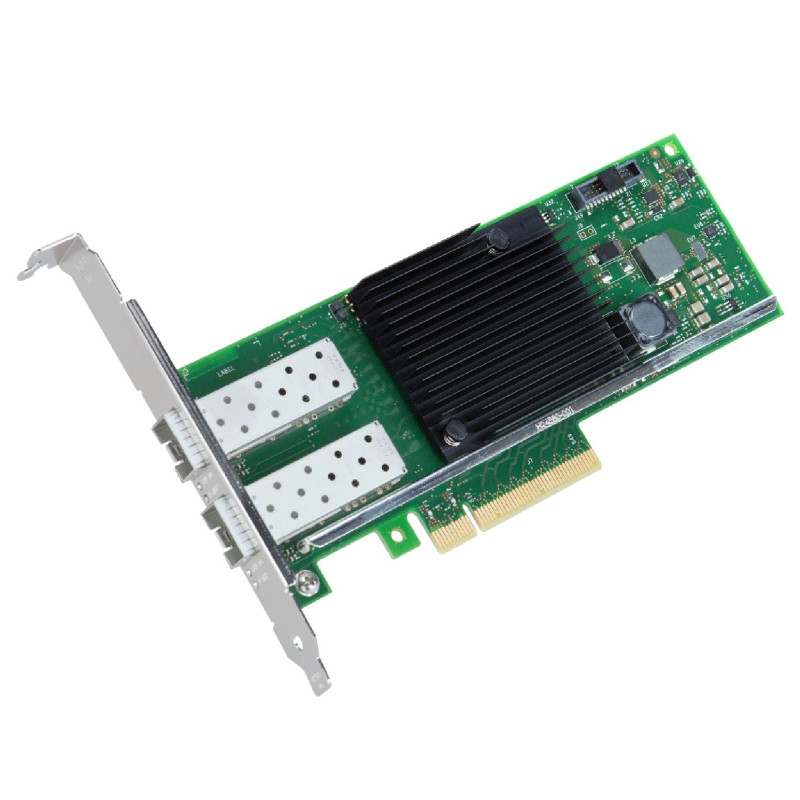

Intel X710DA2
Ethernet Converged Network Adapter X710-DA2
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Data sheet
- Cable type
- SFP+ Direct Attached Twin Axial Cabling up to 10m
- Certification
- FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
- Chipset
- X710-AM2
- Colour of product
- Black,Green
- Connectivity technology
- Wired
- Data transfer rate (max)
- 10000 Mbit/s
- Depth
- 167.08 mm
- Fiber ethernet cabling technology
- 10GBASE-LR,10GBASE-SR
- Fiber optic connector
- SFP+
- Host interface
- PCI-E
- Interface
- Fiber
- Interface type
- PCIe v3.0 (8.0 GT/s)
- Linux operating systems supported
- RedHat EL Linux 6.0
- Management protocols
- PXE, SNMP, RMON
- Networking standards
- IEEE 802.1as,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad
- Number of VLANs
- 8000
- Operating temperature (T-T)
- 8 - 35 °C
- Power consumption (typical)
- 9W
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 35 - 90 %
- Storage temperature (T-T)
- 8 - 85 °C
- Supported network protocols
- TCP, UDP, IP
- Width
- 68.58 mm
- Message signal interrupt
- No
- Bracket height
- Low Profile and Full Height
- Network interface card cable medium
- Copper
Specific References
- EAN13
- 0675901263580
