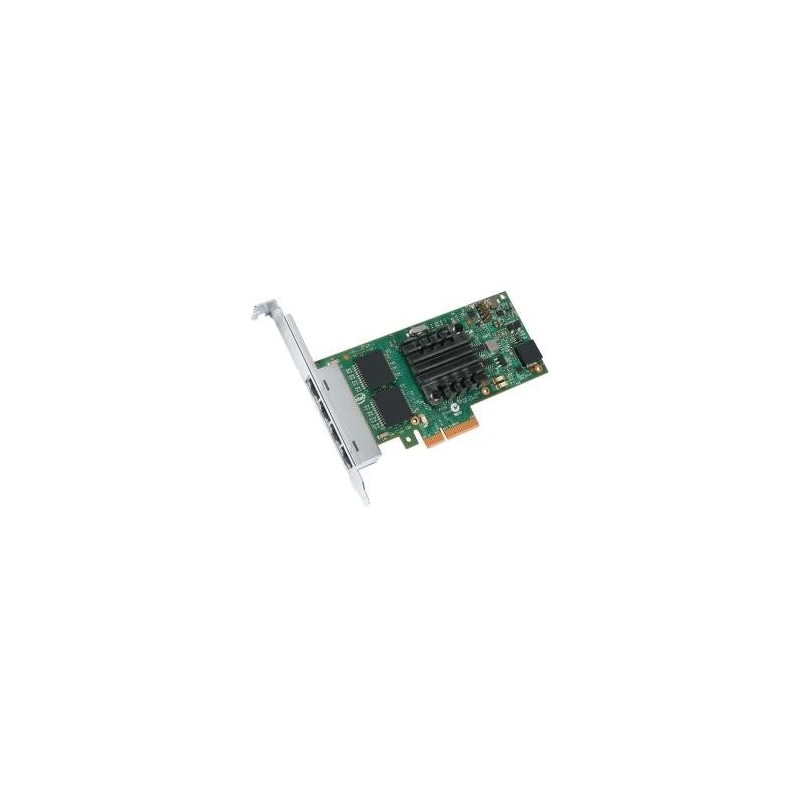

Intel I350T4V2
Ethernet Server Adapter I350-T4V2
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
I350T4V2
Data sheet
- Cable type
- Cat 5 up to 100m
- Cabling technology
- 10/100/1000BaseT(X)
- Chipset
- Intel I350
- Colour of product
- Green,Silver
- Compatibility
- Server
- Compatible operating systems
- Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Windows XP Professional, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat
- Connectivity technology
- Wired
- Copper ethernet cabling technology
- 1000BASE-T,100BASE-TX,10BASE-T
- Data transfer rate (max)
- 1000 Mbit/s
- Depth
- 135.4 mm
- Height
- 990mm
- Host interface
- PCI-E
- Interface
- XFP
- Interface type
- PCIe v2.1 (5.0GT/s)
- LED indicators
- LAN
- Linux operating systems supported
- RedHat EL Linux 5.0,RedHat EL Linux 6.0,SuSE Linux 10,SuSE Linux 11
- Maximum operating distance
- 95 m
- Networking standards
- IEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Operating temperature (T-T)
- 8 - 35 °C
- Power consumption (typical)
- 9W
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 35 - 90 %
- Storage temperature (T-T)
- 8 - 85 °C
- Supported network protocols
- TCP, UDP, IP
- Width
- 68.9 mm
- Message signal interrupt
- No
- Bracket height
- Low Profile and Full Height
- Network interface card cable medium
- Copper
Specific References
- EAN13
- 0735858286343
