Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.
The performance and reliability you demand in network connectivity

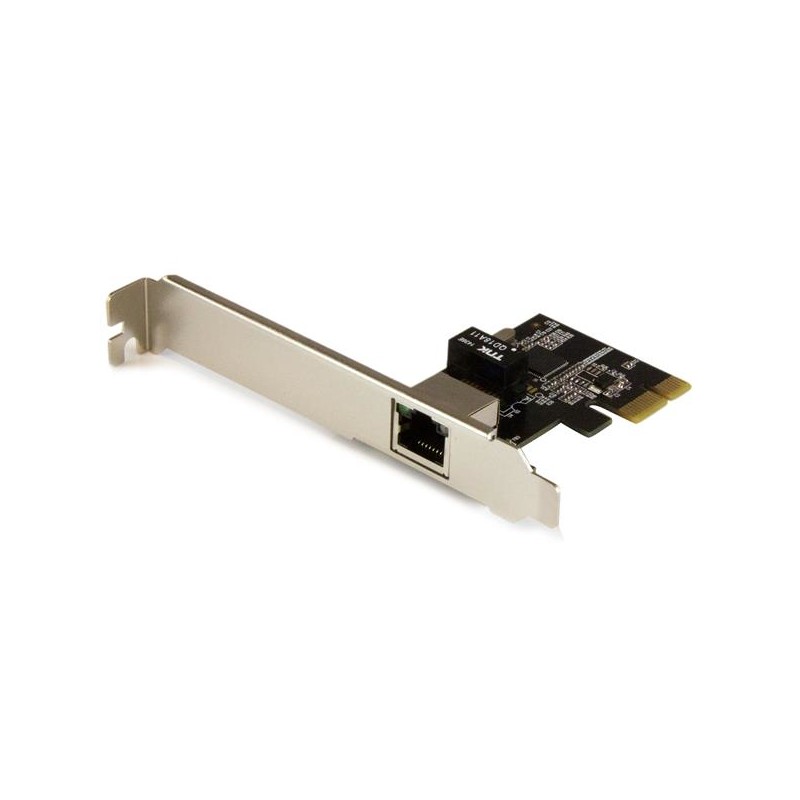

This Gigabit Ethernet network card utilizes the Intel® I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.
Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed. The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Data sheet
- Cabling technology
- 10/100/1000BaseT(X)
- Certification
- CE, FCC
- Chipset
- Intel I210-AT
- Colour of product
- Black,Metallic
- Connectivity technology
- Wired
- Data transfer rate (max)
- 2000 Mbit/s
- Depth
- 120 mm
- Height
- 990mm
- Host interface
- PCI-E
- Interface
- XFP
- Networking standards
- IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
- Operating relative humidity (H-H)
- 20 - 80 %
- Operating temperature (T-T)
- 5 - 50 °C
- Package weight
- 104 g
- Package width
- 985.6 mm
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Weight
- 35 g
- Width
- 993 mm
- Windows operating systems supported
- Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Window
Specific References
- EAN13
- 0065030861038
StarTech.com 1 Port PCI Express Gigabit Ethernet Network Card - Intel I210 NIC Data Sheet
Download (206KB)
