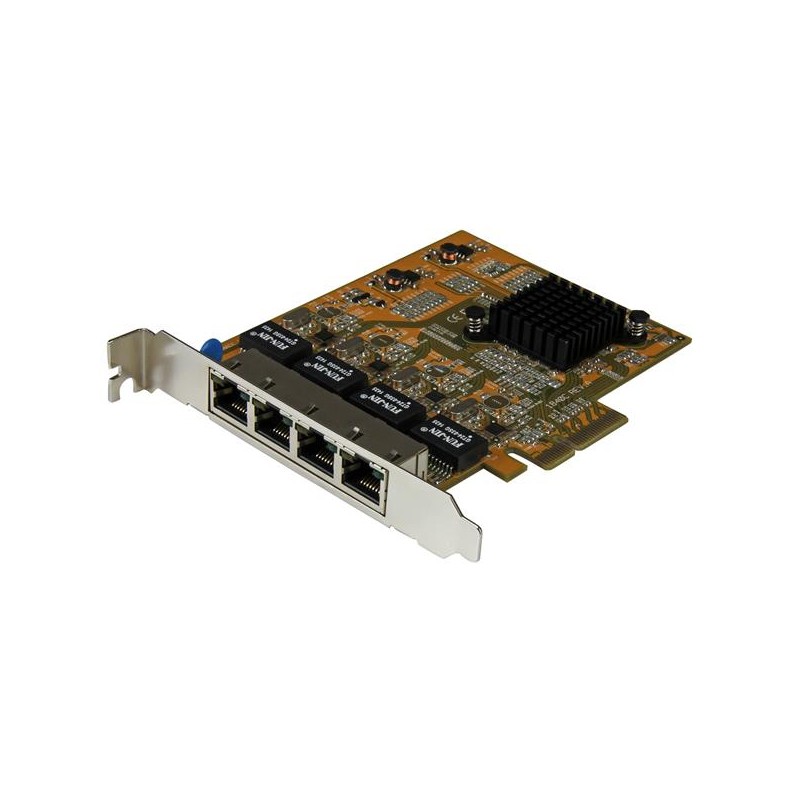

StarTech.com 4-Port PCIe Gigabit Network Adapter Card

StarTech.com 4-Port PCI Express Gigabit Network Adapter Card - Quad-Port PCIe Gigabit NIC
In Stock
Reference: ST1000SPEX43
Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.



Reliable connectivity to multiple networks

This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111G chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.



A versatile and cost-effective solution

This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).



The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.
StarTech.com
ST1000SPEX43

Data sheet

Cabling technology
10/100/1000BaseT(X)
Chipset
Realtek RTL8111G
Connectivity technology
Wired
Data transfer rate (max)
2000 Mbit/s
Depth
138 mm
Ethernet LAN data rates
10,1000,100 Mbit/s
Height
1.6 mm
Host interface
PCI-E
Interface
XFP
LED indicators
Activity,Link
Networking standards
IEEE 802.3,IEEE 802.3u,IEEE 802.3ab
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
8 - 35 °C
Package height
40 mm
Package weight
200 g
Package width
985.6 mm
Source data-sheet
Icecat.biz
Storage temperature (T-T)
-40 - 75 °C
Weight
VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
Width
993 mm
Windows operating systems supported
Windows 7 Enterprise,Windows 8,Windows 10 Education,Windows 7 Enterprise x64,Windows 8 Enterprise,Windows 10 Education x64,Windows 7 Home Basic,Windows 8 Enterprise x64,Windows 10 Enterprise,Windows 7 Home Basic x64,Windows 8 Pro,Windows 10 Enterprise x64

Specific References

EAN13
0065030862448

ST1000SPEX43.pdf

StarTech.com 4-Port PCIe Gigabit Network Adapter Card Data Sheet

Download (207.53KB)
