StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC
StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter - 2 Port Network Card - Intel i350 NIC - GbE Network Card
Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot

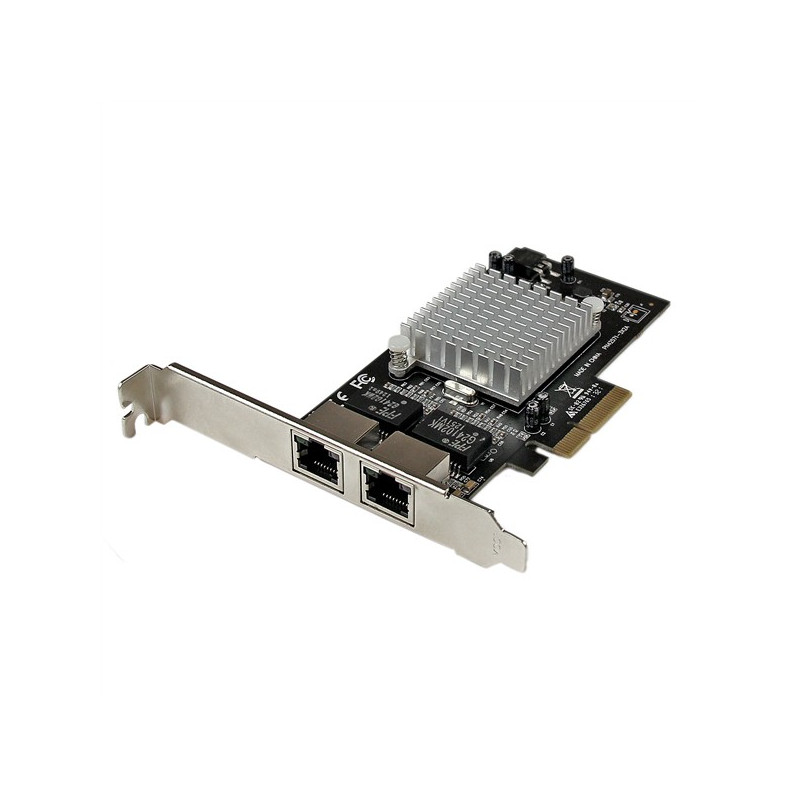

The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.
This 2-port GbE network card is based on the high-performance Intel I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.
Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Double the network bandwidth to a single system through link aggregation / teaming support
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Maximize your virtualized server networking efficiency with dedicated ports
The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.
This 2-port GbE network card is based on the high-performance Intel I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.
Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Double the network bandwidth to a single system through link aggregation / teaming support
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Maximize your virtualized server networking efficiency with dedicated ports
ST2000SPEXI
Data sheet
- Cabling technology
- 10/100/1000BaseT(X)
- Certification
- CE, FCC
- Chipset
- Intel - I350-AM2
- Colour of product
- Aluminium,Black
- Compatibility
- Server
- Connectivity technology
- Wired
- Data transfer rate (max)
- 2000 Mbit/s
- Depth
- 67 mm
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Ethernet LAN (RJ-45) ports quantity
- 2
- Ethernet LAN connection
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN data transfer rates
- 10, 100, 1000 Mbit/s
- Full duplex
- Yes
- Height
- 121 mm
- Host interface
- PCI-E
- Interface
- Ethernet
- Internal
- Yes
- LED indicators
- Activity,Link
- Linux operating systems supported
- Yes
- Manual
- Yes
- Networking standards
- IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u
- Operating relative humidity (H-H)
- 5 - 85 %
- Operating relative humidity range
- 5 - 85%
- Operating temperature (T-T)
- 0 - 50 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Package height
- 28 mm
- Package weight
- 166 g
- Package width
- 140 mm
- Power LED
- Yes
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Storage temperature range (T-T)
- -20 - 60 °C
- Weight
- 80 g
- Width
- 19 mm
- Windows operating systems supported
- Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64
Specific References
- EAN13
- 0065030852739
