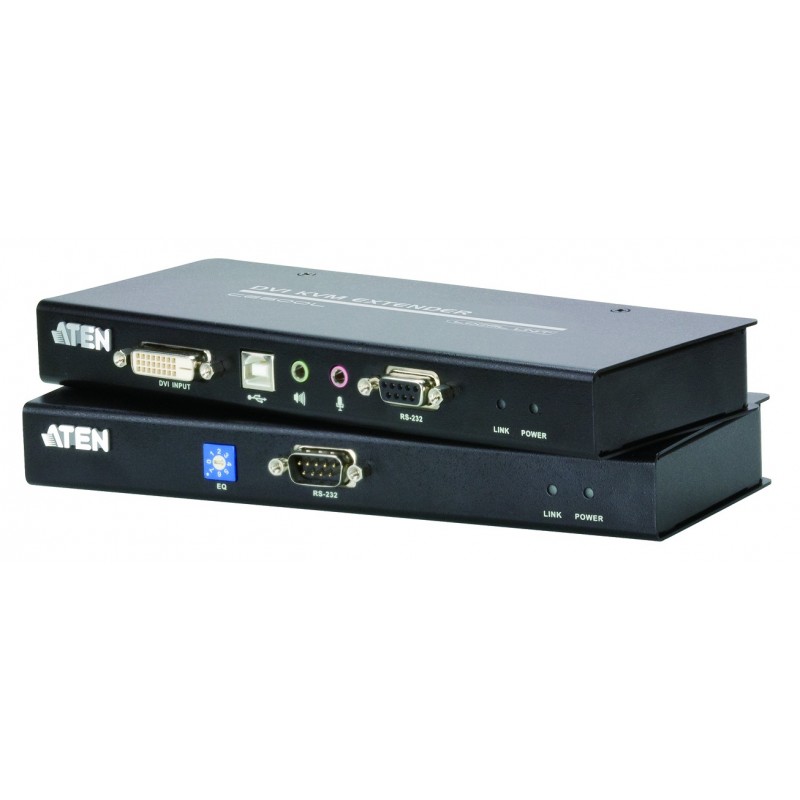

Aten CE600 DVI KVM Extender

Aten CE600

USB DVI KVM Extender with Audio and RS-232 (60m)

CE600

Stock Due 06-09-2025

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Features



- Local and Remote Units connect at distances up to 60 m using Cat 5e cable

- Allows access to a computer or KVM installation from a remote console (up to 60 m)

- Features ATEN technology that allows A/V transmission over one cat 5e cable

- The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals

- Manual compensation control to adjust signal strength in order to compensate for distance

- RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)

- Audio Enabled – supports stereo speakers and microphone

- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

- Supports Wide Screen formats

- Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions

- Hot pluggable

- Rack mountable

- Easy to install – no software required – connecting cables to the devices is all it takes

- Firmware upgrade



Package Contents



- 1x CE600L DVI KVM Extender (Local Unit)

- 1x CE600R DVI KVM Extender (Remote Unit)

- 1x 2L-7D02U 1.8 m USB DVI-D Single Link KVM Cable Set

- 2x 0AD6-1605-24EG Power Adapters

- 1x Mounting Kit

- 1x User Instructions
