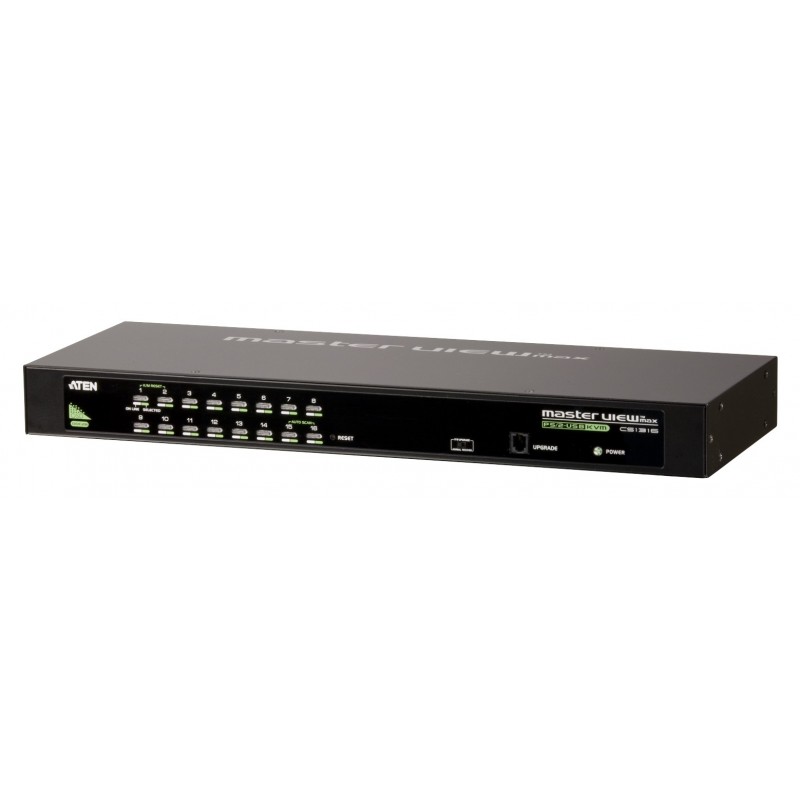

Aten CS1316
16-Port USB - PS/2 VGA KVM Switch
Features
- One USB-PS/2 console controls 16 computers
- Cascade up to 2 levels* - control up to 256 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
*Cascade function only works with USB KVM cable set connections.
Package Contents
- 1x CS1316 KVM Switch with Rack Mount Kit
- 1x LIN5-27X6-U21G Console cable
- 1x Firmware Upgrade cable
- 1x Foot Pad set (4 pads)
- 1x 0AD6-1605-24EG Power Adapter
- 1x Mounting Kit
- 1x User Instructions
- One USB-PS/2 console controls 16 computers
- Cascade up to 2 levels* - control up to 256 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
*Cascade function only works with USB KVM cable set connections.
Package Contents
- 1x CS1316 KVM Switch with Rack Mount Kit
- 1x LIN5-27X6-U21G Console cable
- 1x Firmware Upgrade cable
- 1x Foot Pad set (4 pads)
- 1x 0AD6-1605-24EG Power Adapter
- 1x Mounting Kit
- 1x User Instructions
Data sheet
- AC input voltage
- 5.3 V
- Audio connections
- No
- Built-in display
- No
- Colour of product
- Black
- Compatible operating systems
- Windows 2000/XP/Vista/7
Linux
Mac
Sun - Connectivity technology
- Wired
- DC-in jack
- Yes
- Dimensions (WxDxH)
- 160 x 433 x 44 mm
- Keyboard port type
- PS/2
- Maximum resolution
- 2048 x 1536 pixels
- Mouse port type
- PS/2
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Ports quantity
- 16
- Power consumption (typical)
- 6.6 W
- Power supply type
- DC
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Storage temperature range (T-T)
- -20 - 60 °C
- Video port type
- VGA
- Weight
- 2100 g
Specific References
- EAN13
- 4710423774209
