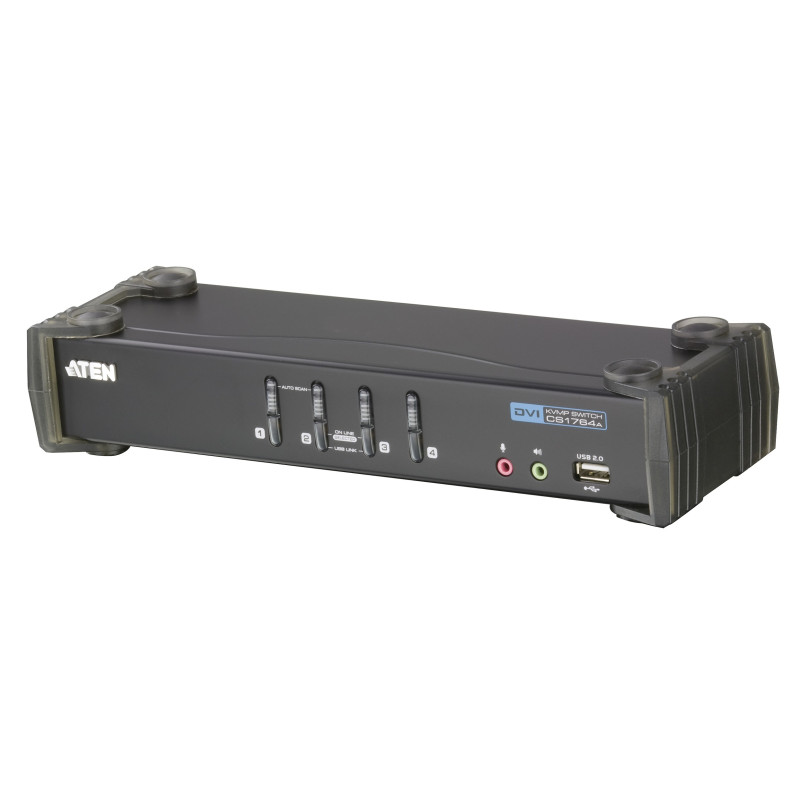

Aten CS1764A
4-Port USB DVI KVM Switch with Audio & USB 2.0 Hub (KVM Cables included)
Features
- One USB console controls four DVI computers and two additional USB 2.0 devices
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Computer selection via front panel pushbuttons and hotkeys
- Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support - Windows, Linux, Mac and Sun
- Superior video quality - 1920 x 1200, 60Hz; DDC2B
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support - fully compliant with the DVI specifications
- HDCP compliant
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Sun /Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- Firmware upgradable via USB
* 1. PC keyboard combinations emulate Sun/Mac keyboards
* 2. Sun/Mac keyboards only work with their own computers
Package Contents
- 1x CS1764A USB 2.0 DVI KVMP™ Switch
- 4x 2L-7D02U USB DVI-D Single Link KVM Cables
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
- One USB console controls four DVI computers and two additional USB 2.0 devices
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Computer selection via front panel pushbuttons and hotkeys
- Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support - Windows, Linux, Mac and Sun
- Superior video quality - 1920 x 1200, 60Hz; DDC2B
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support - fully compliant with the DVI specifications
- HDCP compliant
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Sun /Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- Firmware upgradable via USB
* 1. PC keyboard combinations emulate Sun/Mac keyboards
* 2. Sun/Mac keyboards only work with their own computers
Package Contents
- 1x CS1764A USB 2.0 DVI KVMP™ Switch
- 4x 2L-7D02U USB DVI-D Single Link KVM Cables
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
Data sheet
- Built-in display
- No
- Colour of product
- Black
- Connectivity technology
- Wired
- DC-in jack
- Yes
- Depth
- 270 mm
- Dimensions (WxDxH)
- 87 x 270 x 55 mm
- Headphone outputs
- 4
- Height
- 990mm
- Keyboard port type
- USB
- Maximum resolution
- 1920 x 1200 pixels
- Mouse port type
- USB
- Number of computers controlled
- 4
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Ports quantity
- 4
- Power consumption (typical)
- 10.7 W
- Power requirements
- DC5.3V
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Storage temperature range (T-T)
- -20 - 60 °C
- Video port type
- DVI-I
- Weight
- VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
- Width
- 993 mm
Specific References
- EAN13
- 4710423776449
