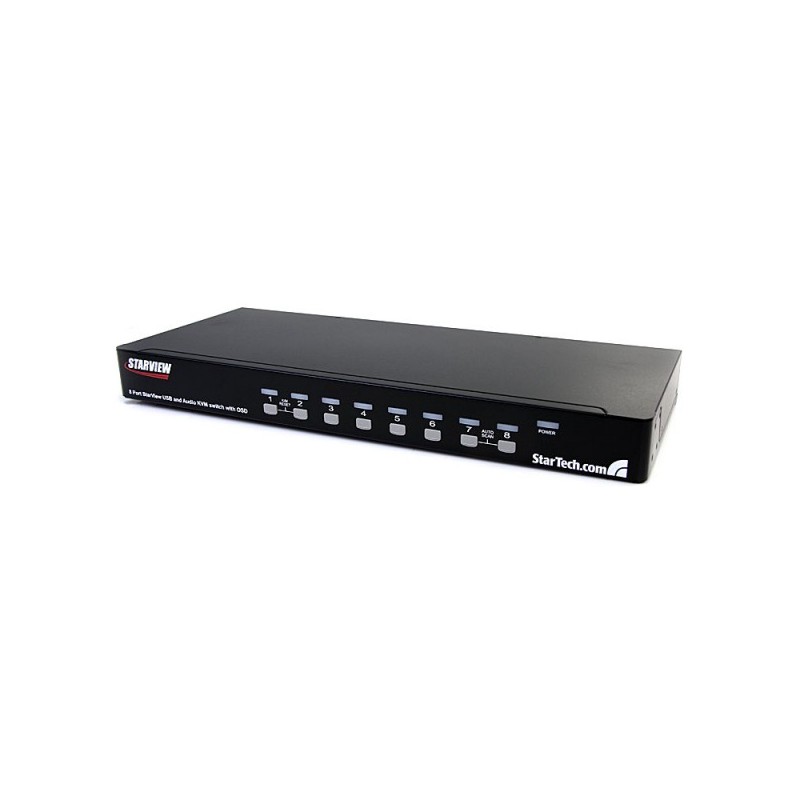

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.
Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.
To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Rugged, rack mountable 1U metal chassis is ideal for any environment
- User friendly access through the OSD saves configuration time and frustration
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
Data sheet
- Colour of product
- Black
- Connectivity technology
- Wired
- Dimensions (WxDxH)
- 540 x 180 x 45 mm
- Maximum resolution
- 1920 x 1200 pixels
- Operating temperature range (T-T)
- 5 - 40 °C
- Ports quantity
- Range, depending on model
- Power requirements
- 110 - 240 AC
- Source data-sheet
- Icecat.biz
- Storage temperature range (T-T)
- -20 - 60 °C
- USB 2.0 ports quantity
- 7
- Video port type
- VGA
- Weight
- 2600 g
Specific References
- EAN13
- 0065030837248
