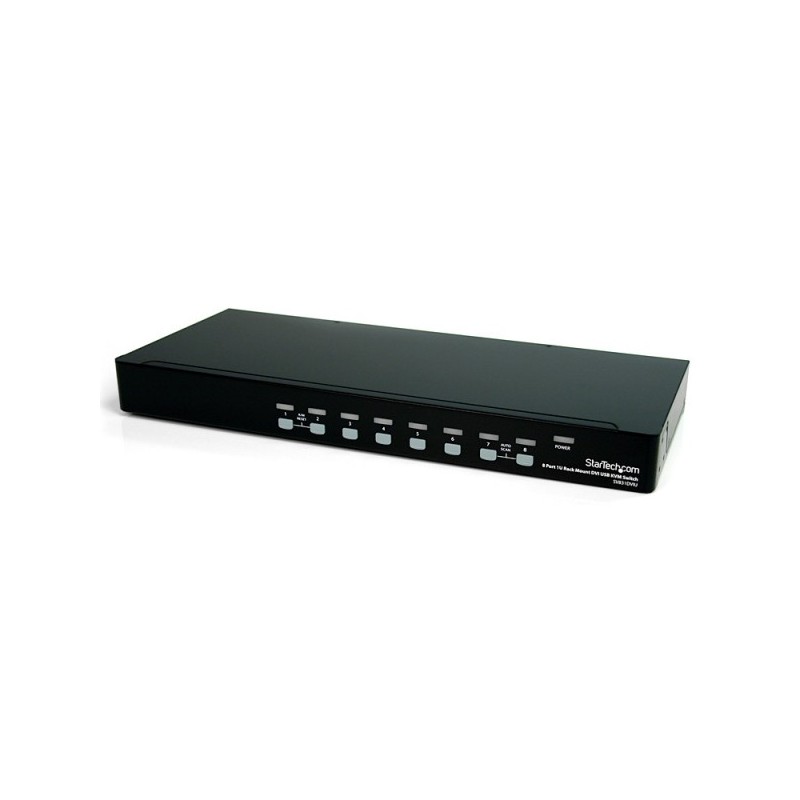

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this rugged 8-port switch can be rack-mounted into 1U of cabinet space.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
The StarTech.com Advantage
- High-resolution 1920x1200 DVI connections support control of DVI systems or HDMI systems (with adapter)
- Supports wireless and combo style mouse and keyboard sets for added flexibility
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
Data sheet
- Colour of product
- Black
- Connectivity technology
- Wired
- Dimensions (WxDxH)
- 438 x 180 x 44 mm
- Maximum resolution
- 1920 x 1200 pixels
- Operating relative humidity range
- 0 - 80 %
- Operating temperature range (T-T)
- 0 - 40 °C
- Ports quantity
- Range, depending on model
- Power requirements
- 110 - 240 AC
- Source data-sheet
- Icecat.biz
- Storage temperature range (T-T)
- -20 - 60 °C
- USB 2.0 ports quantity
- 10
- Video port type
- DVI-I
- Weight
- 3500 g
Specific References
- EAN13
- 0065030842303
