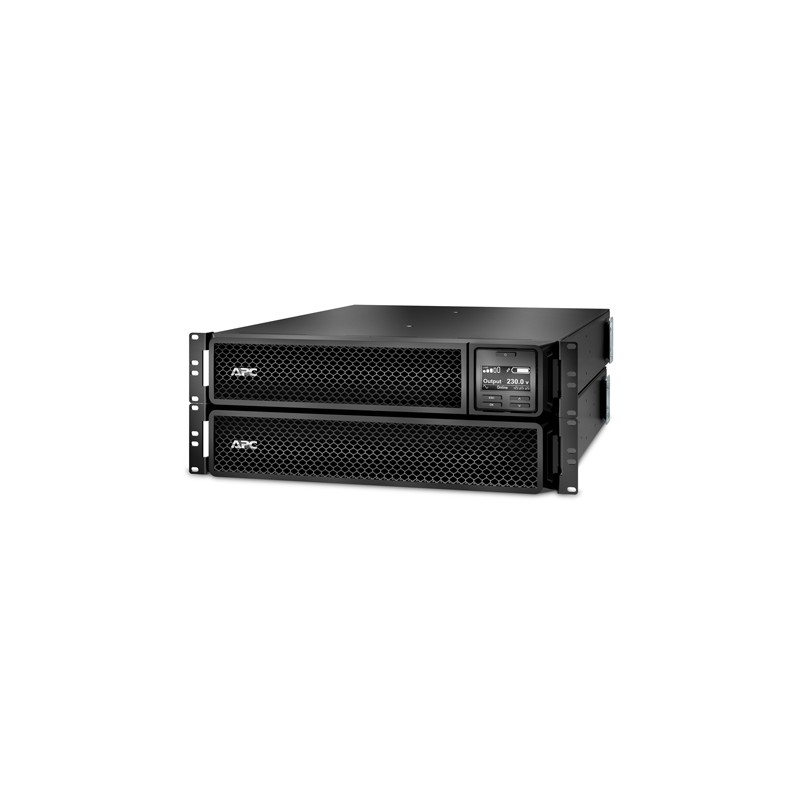

APC Smart-UPS On-Line

Name: APC Smart-UPS On-Line
Brand: APC
SKU: SRT2200RMXLI

Smart-UPS SRT 2200VA, 230V, RJ-45 Serial, Smart-Slot, USB

In Stock

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

High density, double-conversion on-line power protection with scalable runtime.

Includes : CD with software , Country-specific detachable power cord , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , USB cable , Warranty card

Brand APC

Reference SRT2200RMXLI

Data sheet

AC outlet types: C13 coupler,C19 coupler
AC outlets quantity: 10 AC outlet(s)
Battery capacity: 367 VAh
Battery recharge time: 3 h
Battery technology: Sealed Lead Acid (VRLA)
Cable length: 2.44 m
Cables included: USB cable
Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Colour of product: Black
Crest factor: 3:1
Depth: 584 mm
Display: LCD
Efficiency: 92.2 %
Energy Star certified: Yes
Height: 85 mm
Hot-swap battery: Yes
Input operation voltage (max): 600 V
Input operation voltage (min): 96 V
International Protection (IP) code: IPX8
LED indicators: Yes
Noise level: 97.4 dB
Nominal input voltage: 230 V
Nominal output voltage: 230 V
Non-operating altitude: 9144 m
Operating altitude: 0 - 3000 m
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): 8 - 35 °C
Output operation voltage (max): 240 V
Output operation voltage (min): 220 V
Output power: 1980 W
Package weight: 34020 g
Package width: 599 mm
Power supply input frequency: 40/70 Hz
Quantity per pallet: 12 pc(s)
Quick installation guide: Yes
Replacement battery cartridge: APCRBC141
RoHS compliance: Yes
Source data-sheet: Icecat.biz
Storage relative humidity (H-H): 0 - 95 %
Storage temperature (T-T): -20 - 50 °C
Surge energy rating: 990 J
Typical backup time at full load: 90 min
Typical backup time at half load: 9.7 min
USB port: Yes
Waveform: Square
Web-based management: Yes
Weight: 25000 g
Width: 432 mm
