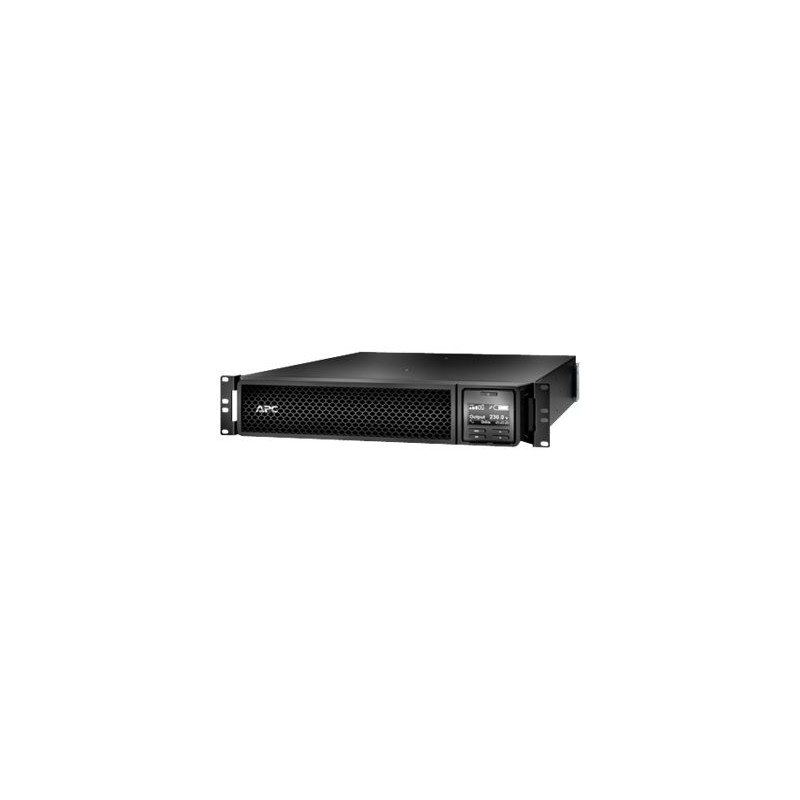

APC Smart-UPS On-Line SRT
3000 VA, 2700 W, 230 V, RJ-45, USB, SmartSlot, 2U, 432x635x85 mm, 31.3 kg
A versatile UPS developed for unstable power conditions worldwide
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Data sheet
- AC outlet types
- C13 coupler,C19 coupler
- Battery capacity
- 505 VAh
- Battery recharge time
- 3 h
- Battery replacement alarms
- Audible,LED
- Battery technology
- Sealed Lead Acid (VRLA)
- Cable length
- 2.44 m
- Certification
- CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
- Colour of product
- Black
- Crest factor
- 3:1
- Depth
- 635 mm
- Display
- LCD
- Efficiency
- 92 %
- Height
- 85 mm
- Hot-swap battery
- Yes
- Input operation voltage (max)
- 600 V
- Input operation voltage (min)
- 96 V
- International Protection (IP) code
- IPX8
- Noise level
- 97.4 dB
- Non-operating altitude
- 9144 m
- Operating altitude
- 0 - 3000 m
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Output operation voltage (max)
- 240 V
- Output operation voltage (min)
- 220 V
- Output power
- DC 9V
- Output voltage
- 230 V
- Output voltage THD
- 2 %
- Package weight
- 39290 g
- Package width
- 599 mm
- Power protection features
- Under voltage
- Power supply input frequency
- 40 - 70 Hz
- Quantity per pallet
- 6 pc(s)
- Quick installation guide
- Yes
- Replacement battery cartridge
- APCRBC152
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage temperature (T-T)
- -15 - 45 °C
- Surge energy rating
- 990 J
- Typical backup time at full load
- 90 min
- Typical backup time at half load
- 9.7 min
- USB port
- Yes
- Waveform
- Square
- Weight
- 31300 g
- Width
- 432 mm
