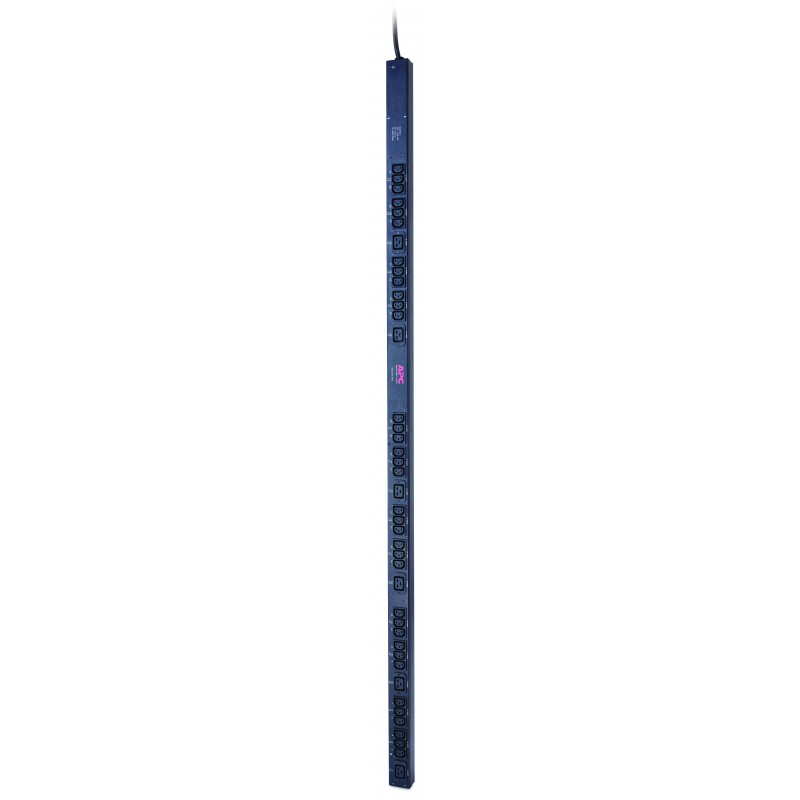

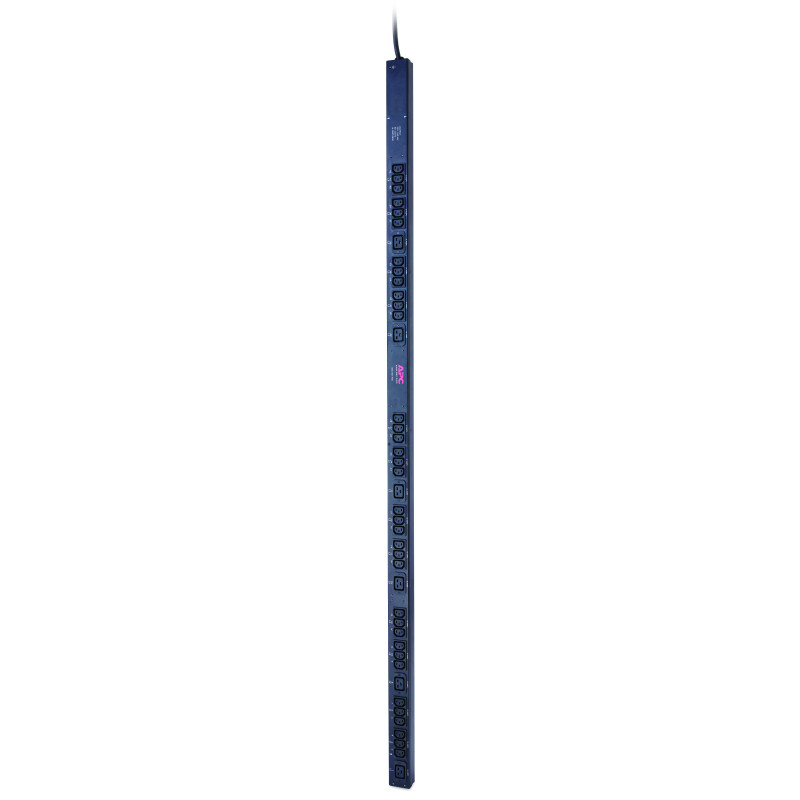

APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19
Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19
APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE , Cord Length: 3 feet ( 0.91 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19.
- Low Cost Power Distribution.
- Vertical mounting capability.
- Toolless mounting capability.
- Multi-branch power input.
- Low Cost Power Distribution.
- Vertical mounting capability.
- Toolless mounting capability.
- Multi-branch power input.
AP7557
Data sheet
- Cable length
- 0.91 m
- Certification
- C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD
- Colour of product
- Black
- Dimensions (WxDxH)
- 56 x 44 x 1619 mm
- Input connection type
- IEC 309 16A 3P+N+PE
- Input frequency
- 47/63 Hz
- Maximum input current per phase
- 63 A
- Maximum total current draw per phase
- 400 A
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 400V
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- -5 - 45 °C
- Output connections
- (36) IEC 320 C13
(6) IEC 320 C19 - Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -25 - 65 °C
- Weight
- 5450 g
Specific References
- EAN13
- 0731304254102
