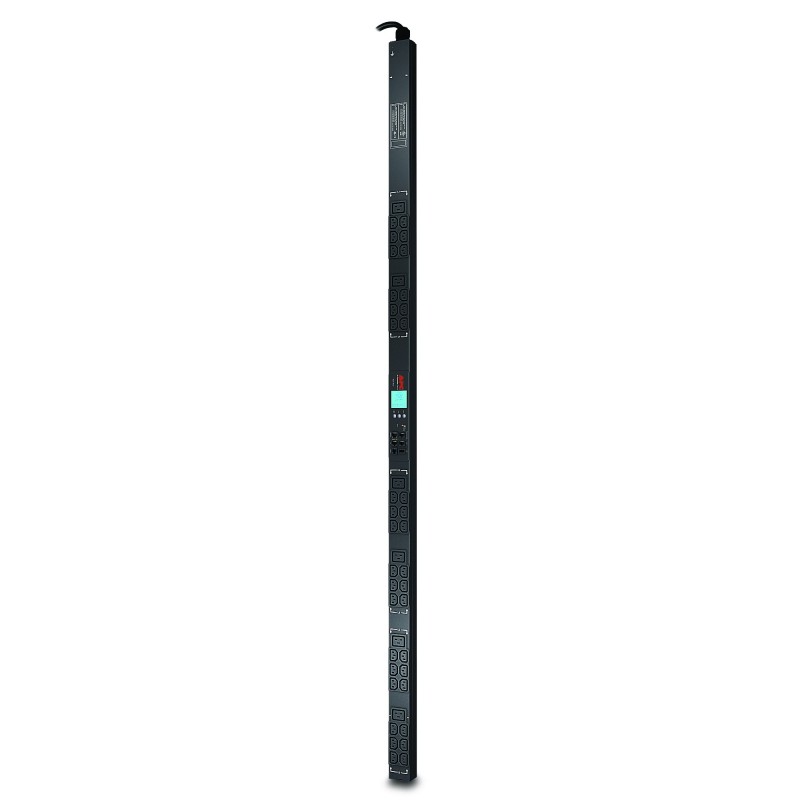

APC AP8881

Rack PDU 2G, Metered, ZeroU, 11kW, 230V, (36) C13 & (6) C19
In Stock
Reference: AP8881
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
APC
AP8881

Data sheet

Cable length
1.83 m
Certification
CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE
RoHS, REACH
Colour of product
Black
Dimensions (WxDxH)
56 x 44 x 1791 mm
Input connection type
IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Maximum input current per phase
20 A
Maximum total current draw per phase
20 A
Nominal input voltage
83 - 159 VAC
Nominal output voltage
400V
Operating relative humidity (H-H)
5 - 95 %
Operating relative humidity range
5 - 95 %
Operating temperature (T-T)
5 - 45 °C
Operating temperature range (T-T)
5 - 45 °C
Output connections
36x IEC 320 C13
6x IEC 320 C19
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 95 %
Storage relative humidity range
5 - 95 %
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-25 - 65 °C
Weight
6380 g

Specific References

EAN13
0731304277071
