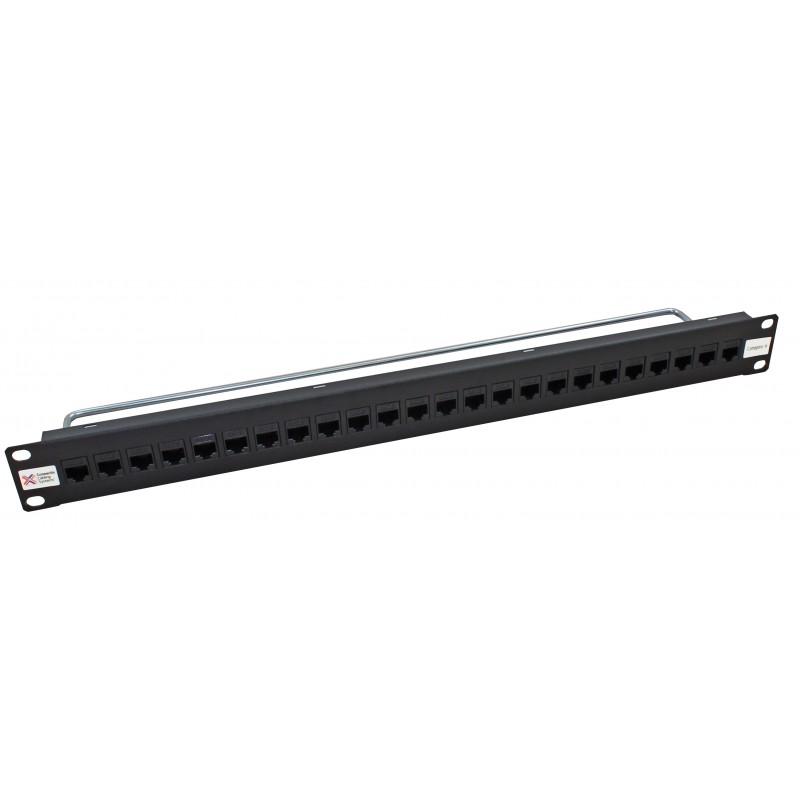

24 Way CCS Cat5e Through Coupler Panel

Download Through-Coupler-Panel PDF


Download Technical Drawing

009-001-019-02

Connectix Through Coupler Panels offer Enhanced Category 5 system performance, and feature 24 ports in 1u. They offer the perfect solution when a panel mounted high performance, high density plug-to-plug connection is required.

Designed to match the other panels in the Connectix range the Coupler Panels have RJ45 sockets front and rear to facilitate through coupling.

Features:

  • High density, 24 ports in 1u
  • Enhanced Category 5 system performance
  • RJ45 to RJ45 connection



  • Specifcation:
  • Width - 483mm (19”)
  • Depth - 35mm
  • Height 24 way - 1u (44mm)
  • Fixing Centres - 467mm
  • Material - Mild steel sheet CR4
  • Finish - Black powder coat BS6496
  • Socket - Labels 9mm numbered card with acetate cover
  • RJ45 Sockets - Unshielded vertical jacks
  • PCB - Groups of 4 identical circuits on 1.6mm double sided PTH boards
  • Conforms to - ANSI/TIA-568-C Enhanced Category 5 Specification
Ports quantity 24 Port
Shielded No
Specification Cat5e
Termination Coupler
U Height 1u
Manufacturer Connectix Cabling Systems

Images are for illustrative purposes only.
