24 Port Cat5e FTP Shielded CCS 20/20 Right Angled Patch Panel

Download 009-002-001-01.pdf PDF


Download Technical Drawing

009-002-001-01

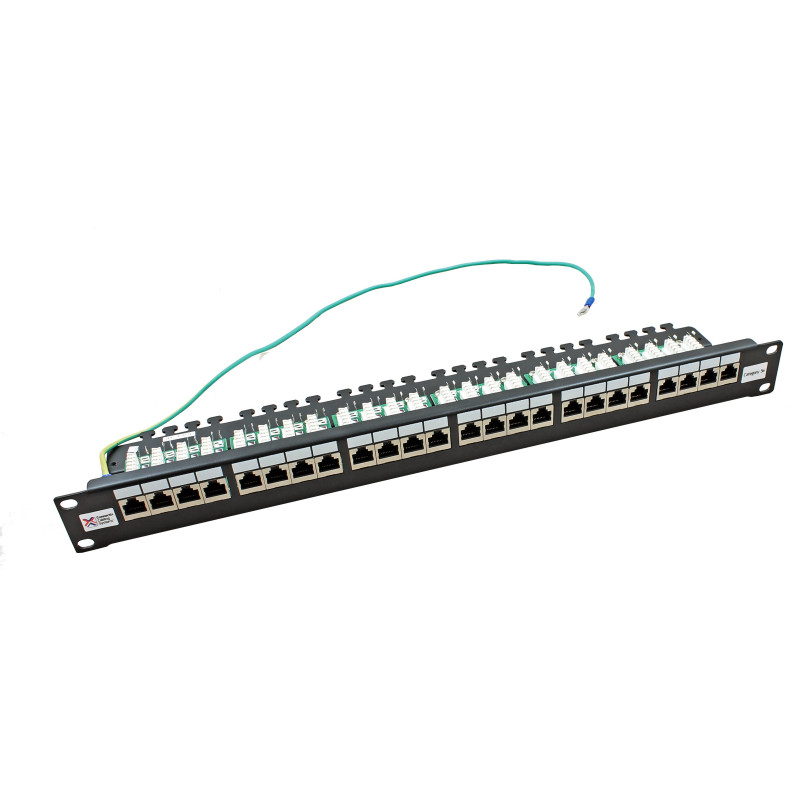

The Connectix 2020 Series FTP Patch Panel is an alternative to the Standard Enhanced Category 5 FTP Panel. It offers the same Enhanced Category 5 performance as the standard panel but has been designed to present the cable termination IDCs horizontally on a tray at the rear of the panel, making termination and cable management easier.

All sockets in the panel are commonly linked through the panel and can be grounded to the rack using the earth wire provided.

Enhanced Category 5 panels provide exceptional performance for high speed LANs including Gigabit Ethernet applications in an easy to use format. When combined with Connectix Enhanced Category 5 FTP Modules and Cable, the link will perform well in excess of the Enhanced Category 5 specifications.

Cat5e Shielded Patch Panel Details:

Features:

  • Easy to install
  • Suitable for Gigabit Ethernet applications
  • High Density 24 Port
  • Rear cover to protect termination and improve shielding
  • Mix and match copper and fibre in one panel
  • Manufactured in the UK



Specification:

  • Width - 483mm (19”)
  • Depth - 98mm
  • Height - 1u (44mm)
  • Fixing Centres - 467mm
  • Material - Mild steel sheet CR4 to BSEN 10130-1999 DC01
  • Finish - Matt black polyester paint
  • Socket Labels - Write-on silk screen on panel front
  • Cable Management - Improved cabling facility with easy to use cable tie positions for left and right cable entry
  • IDC Labelling - Colour coded to T568B
  • IDC Blocks - Industry standard 4 way IDCs
  • Conforms to - ANSI/TIA-568-C Enhanced Category 5 Specification
Ports quantity 24 Port
Shielded Yes
Specification Cat5e
Termination Right Angled IDC Punchdown
U Height 1u
Manufacturer Connectix Cabling Systems

Images are for illustrative purposes only.
