Green Technology
- IEEE 802.3az Energy Efficient Ethernet
- D-Link Green 3.0 power-s!aving features
- LED and Port Shutoff
- Port Standby
- System Hibernation
- Cable Length Detection
- Link Status Detection
- Time-based PoE (PoE model only)
Security Features
- Access Control List
- D-Link Safeguard Engine
- Port Security
- ARP Spoofing Prevention
- Smart IP-MAC-Port Binding
Intuitive Management
- IPv4/ IPv6 Dual Stack1
- Web GUI (supports 10 languages)
- SmartConsole utility
- SNMP and RMON
- Simplified CLI through Telnet
QoS
- Supports IEEE 802.1p QoS
- Supports DSCP
Advanced Features
- Auto Surveillance VLAN
- Auto Voice VLAN
- Port or VLAN-based Loopback Detection
- Cable Diagnostics
- LLDP/LLDP-MED
Trap & Logs
- SNMP Trap
- Trap for SmartConsole Utility
- System Log

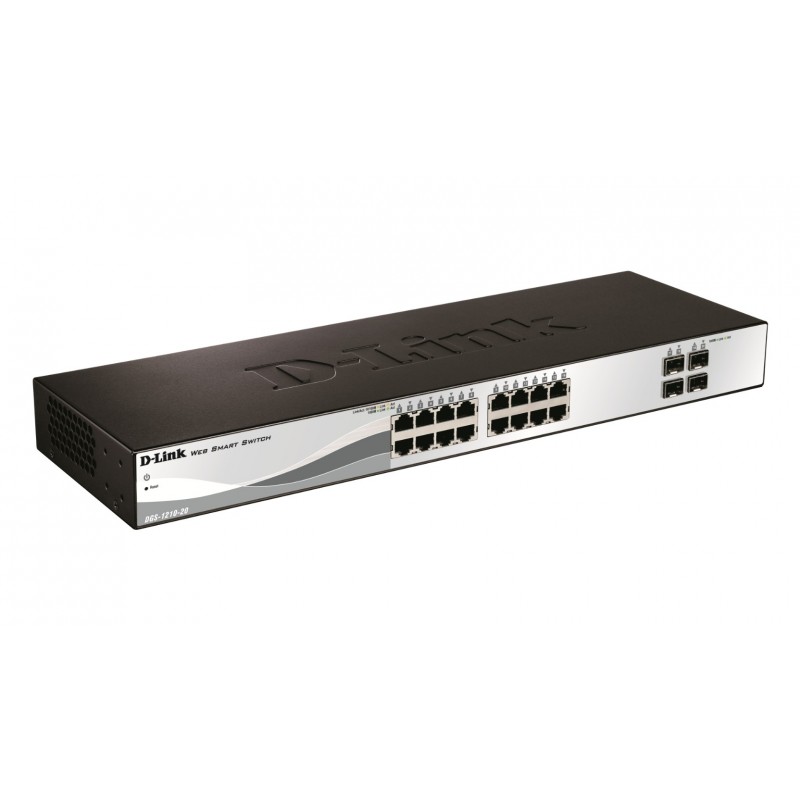

DGS-1210-20
Data sheet
- 10G support
- No
- AC input voltage
- 100-240 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 20
- Certification
- FCC, CE, ICES, VCCI, BSMI, C-Tick
- Colour of product
- Black
- Data link protocols
- IP
- Depth
- 140 mm
- DHCP client
- Yes
- DHCP server
- Yes
- Ethernet LAN (RJ-45) ports quantity
- 20
- Height
- 990mm
- MAC address table
- 96000 entries
- Management
- Smart Managed
- Management protocols
- SNMP, RMON
- Maximum data transfer rate
- 96 Gbit/s
- MIB support
- SNTP, ICMPv6, IPv4/v6
- Mounting
- Rackmount
- Networking standards
- IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating relative humidity range
- 0 - 95 %
- Operating temperature (T-T)
- 41 - 122 °F
- Operating temperature range (T-T)
- -5 - 50 °C
- Packet transfer speed
- 29.8Mp/s
- PoE
- No
- Ports quantity
- 20
- Power consumption (typical)
- 14.06 W
- Power over Ethernet (PoE) support
- No
- RJ45 Ports Qty
- 16
- Safety
- cUL, CE LVD
- SFP Ports Qty
- 4
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage relative humidity range
- 0 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -20 - 70 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Switch layer
- L7
- Switch Speed
- Gigabit
- Switching capacity
- 993.6 Gbps
- Weight
- 2200 g
- Width
- 993 mm
Specific References
- EAN13
- 0790069373220
