-Link D-Link 10-Port Gigabit Smart Managed Switch including 2x SFP ports
  • -Link D-Link 10-Port Gigabit Smart Managed Switch including 2x SFP ports
  • -Link D-Link 10-Port Gigabit Smart Managed Switch including 2x SFP ports
  • -Link D-Link 10-Port Gigabit Smart Managed Switch including 2x SFP ports

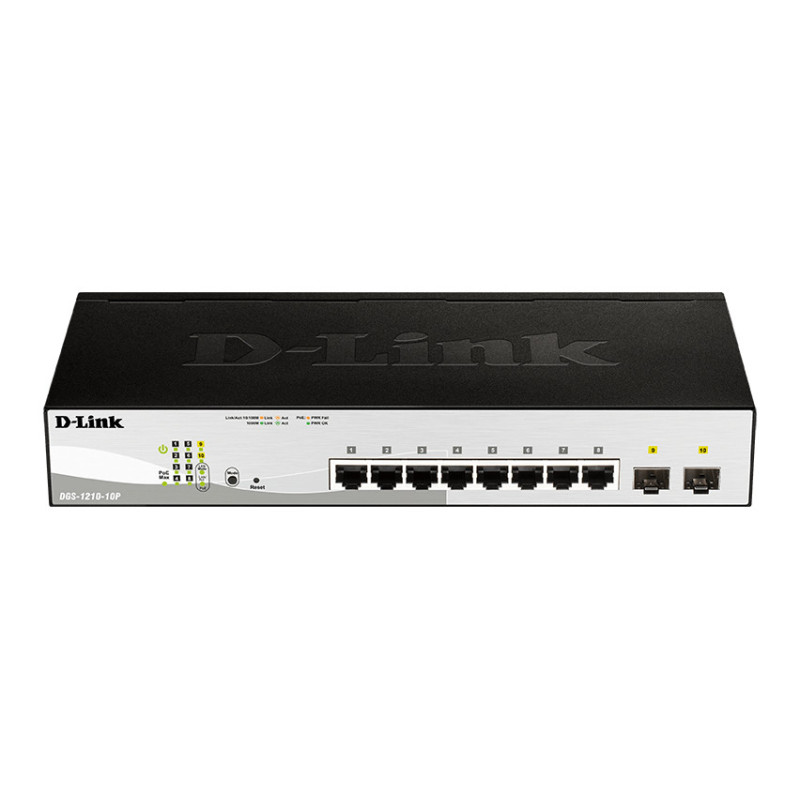

D-Link D-Link 10-Port Gigabit Smart Managed Switch including 2x SFP ports

D-Link 10-Port Gigabit Smart Managed Switch including 2x SFP ports, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
In Stock
Reference: DGS-1210-10P
Reasons to Buy
  • Layer 2 management and security with Layer 3 capabilities
  • Compact Command-Line Interface (CLI) and web-based User-Interface
  • Static Routing and MSTP
  • PoE options up to 370W power budget
  • Dual image & config


Technical Headlines
  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Cat5, Cat5e 10BASE-T, 100BASE-T, 1000BASE-T
  • MAC address table: 8000 entries Switching capacity: 20 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power over Ethernet (PoE)


Smart Managed with a Plus
With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D‑Link’s DGS‑1210 Smart+ Managed Gigabit Switches provide a cost‑efficient and flexible solution for expanding any business network.

Advanced Layer 2 Management with Layer 3 Static Routing
The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.

With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.

Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy‑efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.

PoE and PoE+, with budgets up to 370W
The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for business looking to power larger deployments of VoIP phones, wireless access points or network cameras.

Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
D-Link
DGS-1210-10P

Data sheet

10G support
No
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Cable types supported
Cat5, Cat5e
Certification
EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Depth
126 mm
Flow control support
Yes
Form factor
1U
Full duplex
Yes
Gigabit Ethernet (copper) ports quantity
8
Heat dissipation
373.96 BTU/h
Height
44 mm
LED indicators
Yes
MAC address filtering
Yes
MAC address table
8000 entries
Mean time between failures (MTBF)
729258 h
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Noise level
0 dB
Operating relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Package height
72 mm
Package weight
2.21 kg
Package width
288 mm
Packet buffer memory
0.512 MB
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Quality of Service (QoS) support
Yes
Rack mounting
Yes
Source data-sheet
Icecat.biz
Stackable
Yes
Storage relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-20 - 70 °C
Store-and-forward
Yes
Switch layer
L2
Switch type
Managed
Switching capacity
20 Gbit/s
Web-based management
Yes
Weight
950 g
Width
280 mm
Product colour
Black
Shipping (inner) case net weight
11.1 kg
Shipping (inner) case gross weight
11.8 kg
Pallet gross weight (air)
449.5 kg
Pallet height (air)
140.3 cm mm
Pallet gross weight (sea)
662 kg
Pallet height (sea)
2.04 m mm
Harmonized System (HS) code
85176990
Products per shipping (inner) case
5 pc(s)
Master (outer) cases per pallet (air)
36 pc(s)
Products per pallet (air)
180 pc(s)
Pallet gross length
110 cm mm
Pallet gross width
120 cm mm
Master (outer) cases per pallet (sea)
54 pc(s)
Products per pallet (sea)
270 pc(s)

Specific References

EAN13
0790069329388

DGS-1210-10P.pdf

D-Link D-Link 10-Port Gigabit Smart Managed Switch including 2x SFP ports Data Sheet

Download (802.66KB)
