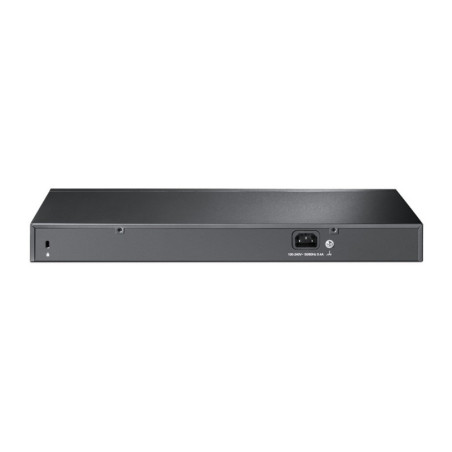

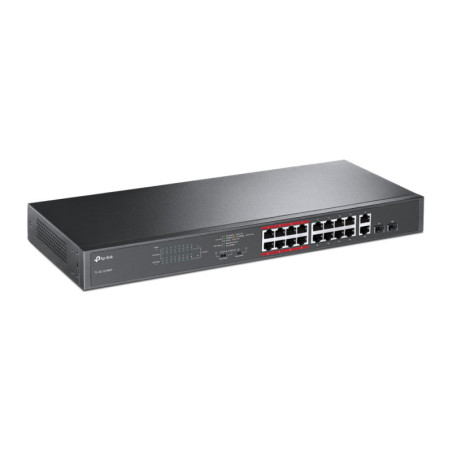

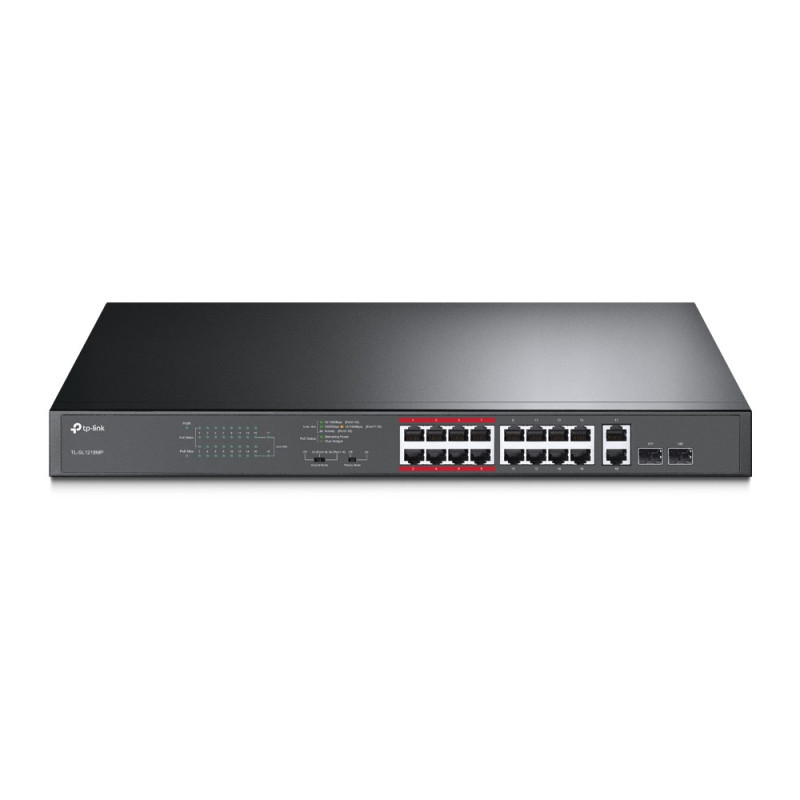

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch, Unmanaged, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting
Reasons to Buy
Technical Headlines
Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
- 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
- Up to 250m data and power transmission under extend mode specially designed for surveillance system
- Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
- High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
- Easy to use, with no configuration and installation needed
Technical Headlines
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 16
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8000 entries Switching capacity: 7.2 Gbit/s
- Rack mounting
- AC Power supply included Power over Ethernet (PoE)
Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
TL-SL1218MP
Data sheet
- 10G support
- No
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 100 - 240 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Cables included
- LAN (RJ-45)
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Depth
- 180 mm
- Height
- 990mm
- MAC address table
- 96000 entries
- Networking standards
- Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
- Operating temperature (T-T)
- 8 - 35 °C
- Power consumption (typical)
- 9W
- Power source
- PoE, DC, AC
- Storage temperature (T-T)
- 8 - 85 °C
- Switching capacity
- 993.6 Gbps
- Width
- 993 mm
- Product colour
- White,Black
Specific References
- EAN13
- 6935364099824
