P-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • P-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • P-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • P-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • P-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

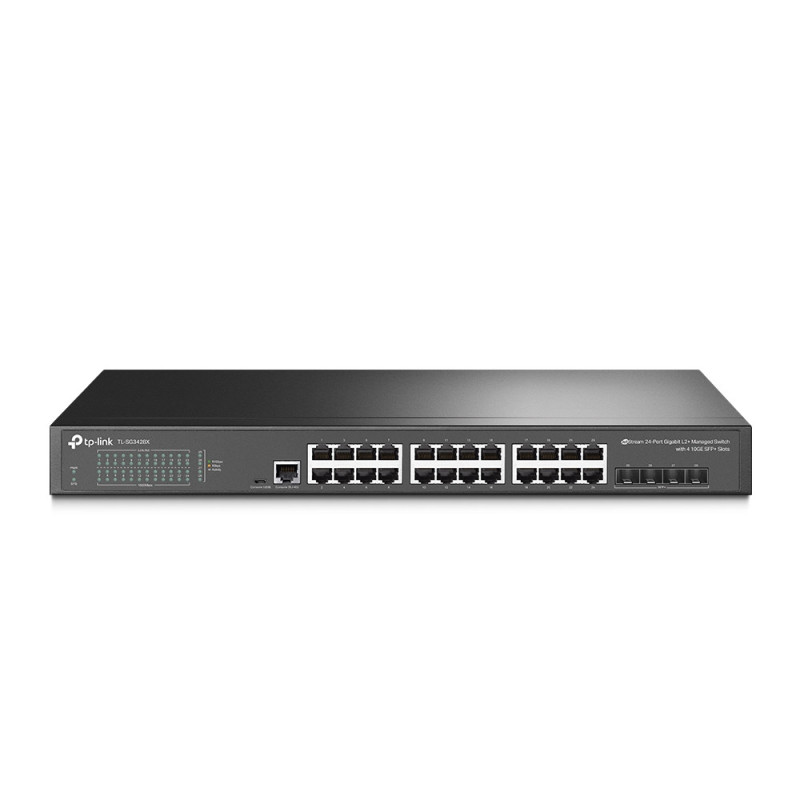

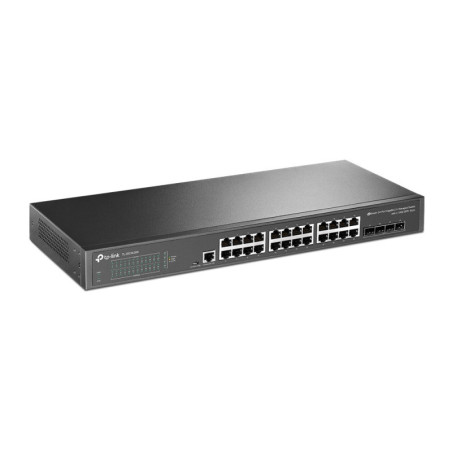

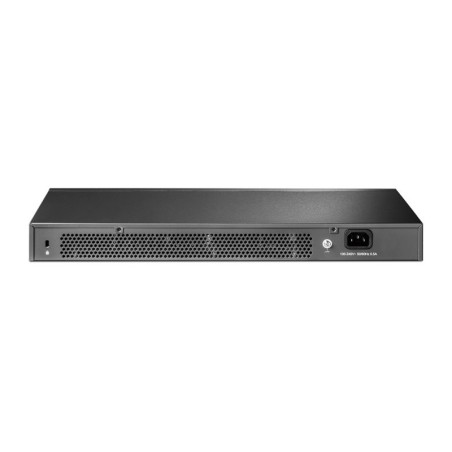

TP-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

TP-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots, Managed, L2+/L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
In Stock
Reference: TL-SG3428X
Reasons to Buy
  • 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
  • Gigabit Speeds: 24× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management
  • Static Routing: Helps route internal traffic for more efficient use of network resources
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities


Technical Headlines
  • Managed L2+/L3 Web-based management SNMPv1/v2c/v3, SNTP
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45/micro-USB
  • 10G support
  • MAC address table: 16000 entries Switching capacity: 128 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting
  • AC Power supply included


TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
TP-Link
TL-SG3428X

Data sheet

10G support
Yes
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Cables included
LAN (RJ-45)
Depth
180 mm
Height
990mm
MAC address table
96000 entries
Management protocols
ЫТЬЗ
Networking standards
Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
Number of static routes
990
Number of VLANs
8000
Operating temperature (T-T)
8 - 35 °C
Package weight
998 g
Package width
985.6 mm
Power source
PoE, DC, AC
Storage temperature (T-T)
8 - 85 °C
Switch layer
L7
Switching capacity
993.6 Gbps
Width
993 mm
Product colour
White,Black
IPv4 routes
48
IPv6 routes
48

Specific References

EAN13
5055309628597

TL-SG3428X.pdf

TP-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots Data Sheet

Download (3.22MB)
