12u 600mm (w) x 780mm (d) Floor Standing Data Cabinet

Connectix 600mm (w) x 780mm (d) Floor Standing Data Cabinet

Data Cabinet Finished in Grey with a 600mm x 780mm Footprint


Possible 5-7 Day Lead Time.

The Rax range of 19” Floor Standing Data Cabinets are an ideal solution for housing network hardware and patching equipment. The robust design makes them suitable for use in IT departments and offices.

The cabinets are available in various configurations and are supplied fully assembled. Each cabinet utilises a ventilated top and four 19” adjustable front and rear mounting posts. The cabinets feature hinged lift-off lockable sides and rear lockable doors for maximum access to the internal equipment, with cable access in the base for convenient routing of network cables. The cabinet frameworks are finished in goose grey with a toughened bronze tint perspex lockable front door.

Rax 19” floor standing cabinets incorporate the essential features for data communication environments - security, durable construction, easy access and protection from dust or contamination for the network equipment.

Data Cabinet Details (move mouse over to explore):

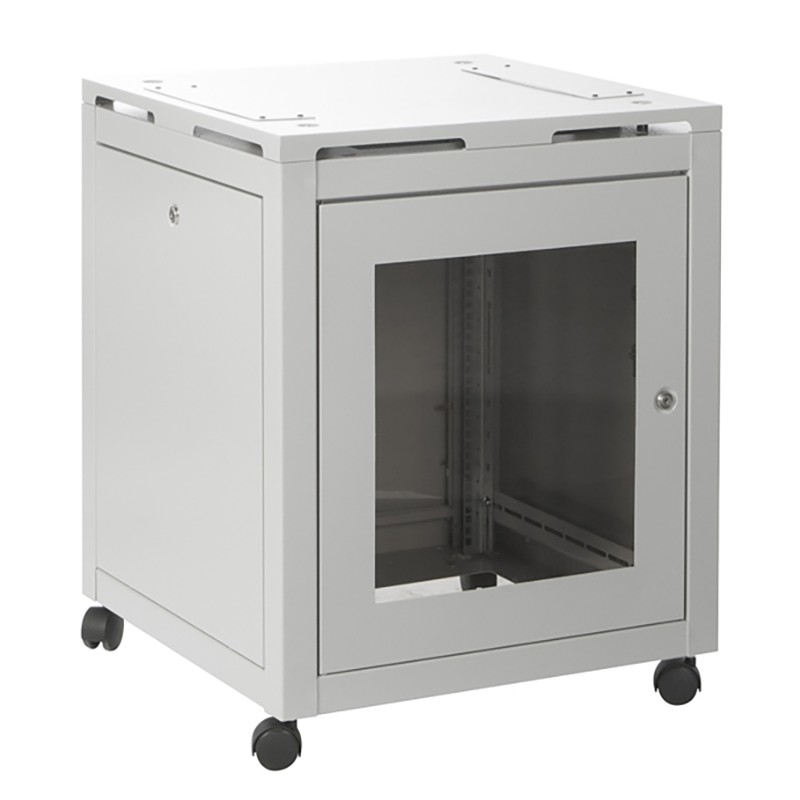

12u 600 x 600 Cabinet shown for illustration purposes.


  • Manufactured in the UK
  • Supplied fully assembled
  • Ventilated top
  • Adjustable mounting posts
  • Lockable and removable side and rear doors
  • Cable access in base
  • Lockable perspex front door

Dimensions By U Height

U HeightSize (HxWxD)
12U681x600x780 mm
18U948x600x780 mm
21U1081x600x780 mm
24U1215x600x780 mm
27U1348x600x780 mm
39U1882x600x780 mm
42U2015x600x780 mm
45U2148x600x780 mm
47U2237x600x780 mm
Cable EntryTop & Bottom
