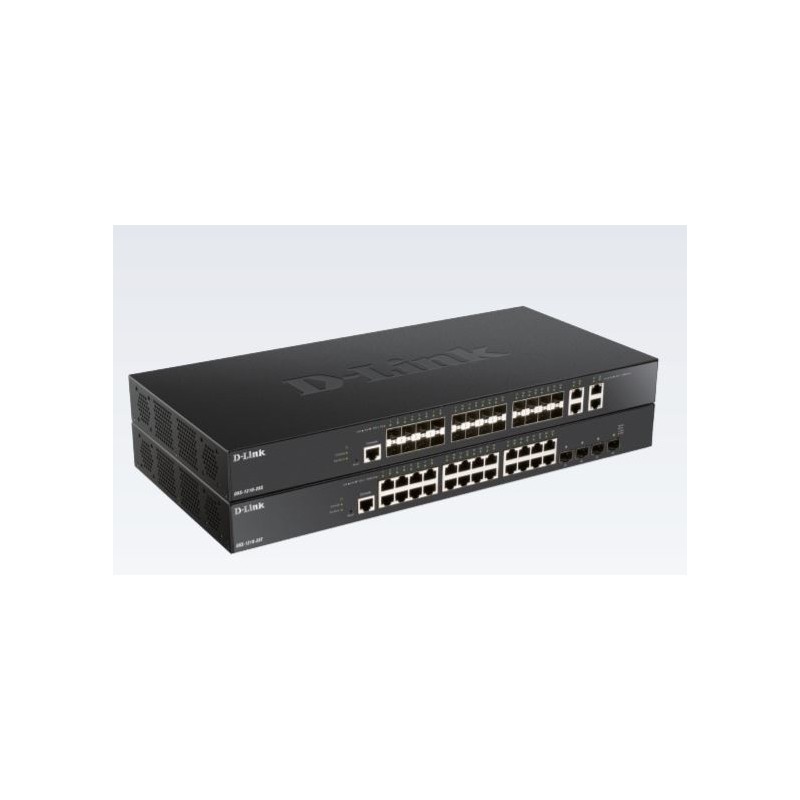

D-Link DXS-1210-28T
DXS-1210-28T - 24 x 10GBASE-T, 4 x 10/25G SFP28
The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
DXS-1210-28T
Data sheet
- AC input voltage
- 100 - 240 V
- Auto MDI/MDI-X
- Y
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- 10G Ethernet (100/1000/10000)
- Cable types supported
- Cat6,Cat6a,Cat7
- Certification
- CE Class A\nFCC Class A\nVCCI Class A\nIC\nBSMI
- Depth
- 209.5 mm
- Flow control support
- Y
- Height
- 44 mm
- LED indicators
- Activity,Link,Speed
- MAC address table
- 32000 entries
- Management protocols
- SNMP v1/v2c/v3
- Networking standards
- IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3u,IEEE 802.3z
- Noise level
- 51.9 dB
- Number of VLANs
- 4094
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- -5 - 50 °C
- Quality of Service (QoS) support
- Y
- Source data-sheet
- Icecat.biz
- Spanning tree protocol
- Y
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Store-and-forward
- Y
- Switching capacity
- 993.6 Gbps
- Web-based management
- Y
- Weight
- 3070 g
- Width
- 993 mm
- Product colour
- Black
Specific References
- EAN13
- 0790069456800
