450mm Deep Wall Mounted Data Cabinets

RackyRax 450mm Deep Wall Mounted Data Cabinets

Available in black in a range of heights and widths.


In Stock

The compact design of the Rax 19” Wall Mounting Cabinets make them ideal for smaller networks and workgroups.

The cabinets are available in various sizes and are supplied fully assembled. Each cabinet comprises a welded steel frame and adjustable front and rear 19” mounting profiles.

A gland plate is situated in the top and bottom of the cabinet. The cabinets feature ventilation slots top and bottom; and have a lockable glass front door, and removable sides. The cabinet frameworks are finished in a high quality attractive black.

Please note - the 450mm deep (RR-W1) Cabinets do not have rear mounting posts. Use Cantilever shelves which are secured from the front.
If Rear mounting posts are required, please put as a note and these can be supplied seperately and attached on site.

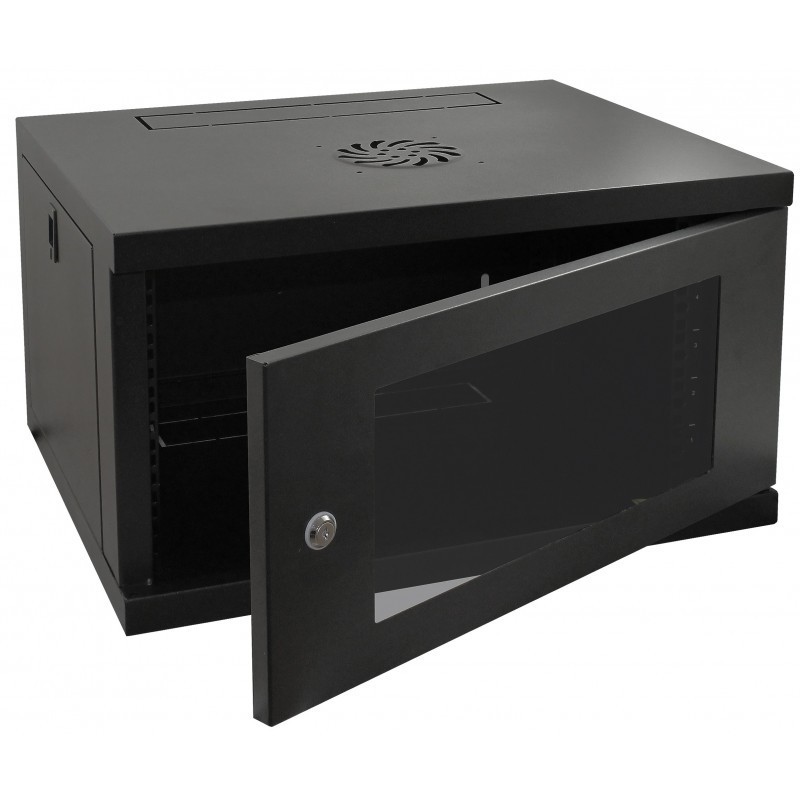

6u 450mm Deep Data Cabinet shown for illustration


  • Supplied fully assembled
  • Ventilated top
  • Adjustable mounting posts
  • Lockable and removable sides
  • Cable access top and bottom
  • Lockable glass front door

Dimensions By U Height

U HeightSize (HxWxD)Net Weight
6U348x550x450 mm14 Kg
9U481x550x450 mm17.5 kg
12U615x550x450 mm21 Kg
15U748x550x450 mm24.5 Kg
18U881x550x450 mm29 Kg
21U1015x550x450 mm32.5 Kg

Maximum Internal Depth is 340mm
Cable EntryTop & Bottom
