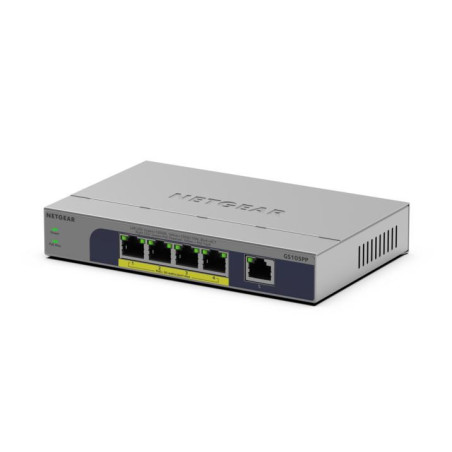

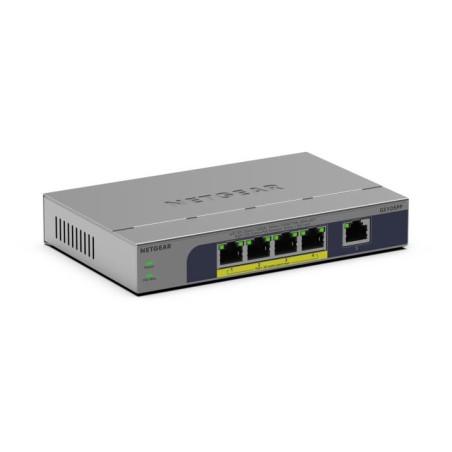

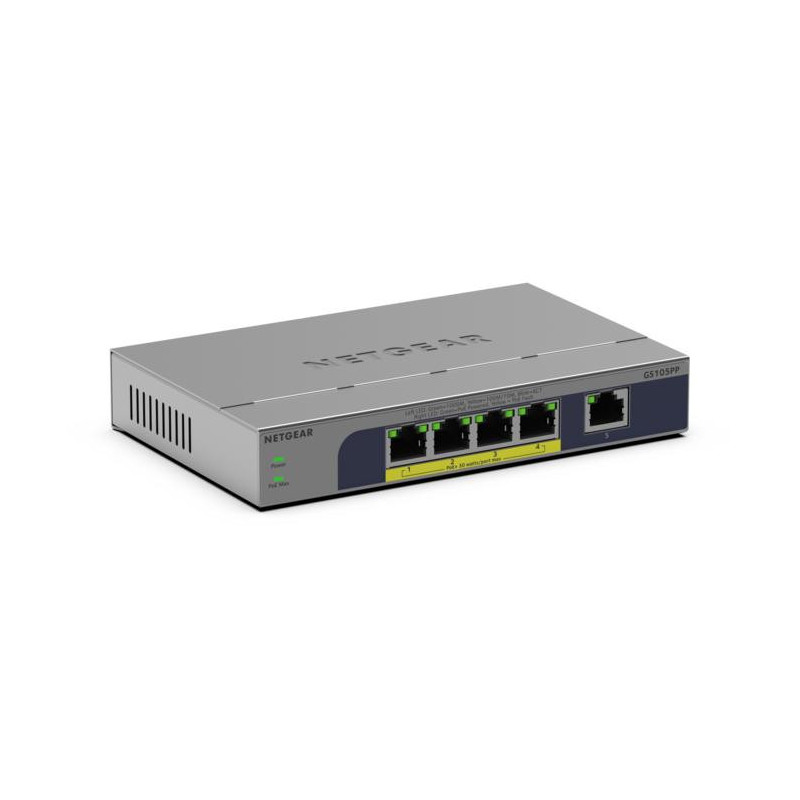

NETGEAR GS105PP
NETGEAR GS105PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Desktop/Wall-Mounting
Reasons to Buy
Technical Headlines
POWER-OVER-ETHERNET
4 PoE+ ports delivering up to 30W per port with a 83W total power budget for wireless APs, IP Cameras, IP Phones and much more.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected Flex PoE
- 5 x Gigabit Ethernet ports with PoE+
- Plug and play switch, no management required
- Energy Efficient Ethernet for maximum power savings
- Fanless and silent
- Desktop or wall-mount
Technical Headlines
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- 1000BASE-T, 100BASE-T, 10BASE-T
- MAC address table: 2000 entries
- Desktop/Wall-Mounting
- AC/DC Power over Ethernet (PoE)
POWER-OVER-ETHERNET
4 PoE+ ports delivering up to 30W per port with a 83W total power budget for wireless APs, IP Cameras, IP Phones and much more.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected Flex PoE
Data sheet
- 10G support
- No
- Bandwidth
- 10 Gbit/s
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Certification
- CB, CE LVD, CSA
- Copper ethernet cabling technology
- 1000BASE-T, 100BASE-T, 10BASE-T
- Depth
- 101 mm
- Flow control support
- Yes
- Form factor
- Desktop/Wall-Mounting
- Full duplex
- Yes
- Heat dissipation
- 3.24 BTU/h
- Height
- 27 mm
- Housing material
- Metal
- Input current
- 1.66 A
- LED indicators
- Activity, Link, PoE, Power, Speed, Status
- MAC address table
- 2000 entries
- Mean time between failures (MTBF)
- 4113947 h
- Networking standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
- Operating altitude
- 0 - 3000 m
- Operating relative humidity (H-H)
- 0 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Packet buffer memory
- 0.128 MB
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 4
- Power source
- AC/DC
- Quality of Service (QoS) support
- Yes
- Quick start guide
- Yes
- Rack mounting
- No
- Source data-sheet
- Icecat.biz
- Stackable
- No
- Storage relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -20 - 70 °C
- Store-and-forward
- Yes
- Switch type
- Unmanaged
- Weight
- 400 g
- Width
- 158 mm
- Product colour
- Grey
- Fanless
- Yes
- Compliance certificates
- CB, CE, Federal Communications Commission (FCC)
Specific References
- EAN13
- 0606449174717
