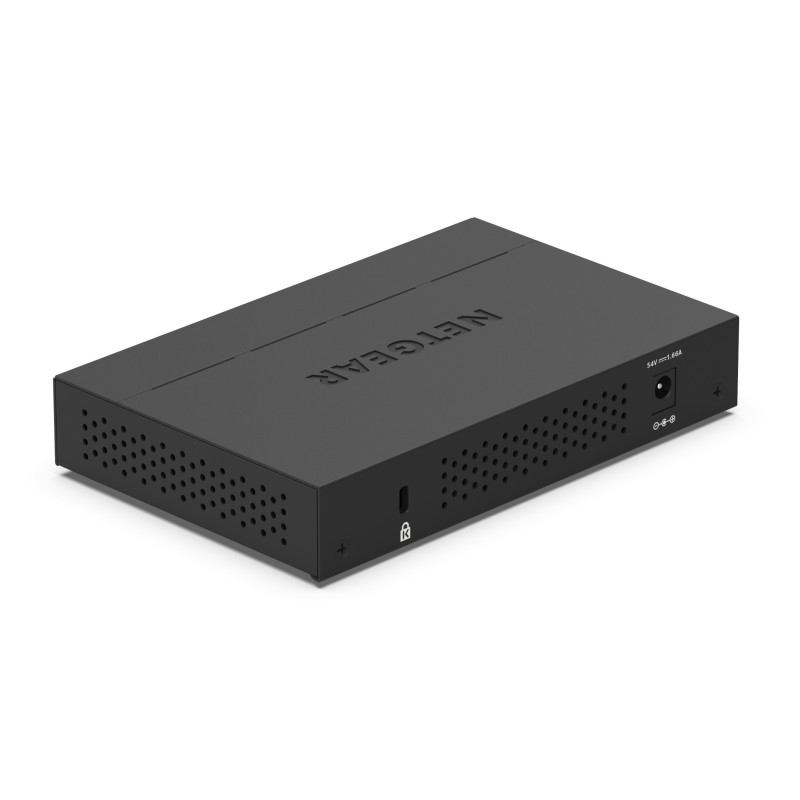

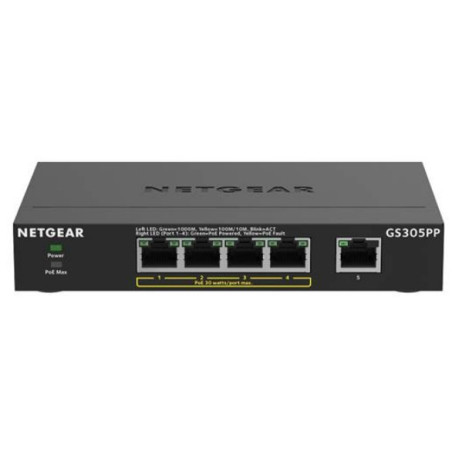

NETGEAR GS305PP

NETGEAR GS305PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

In Stock

Description
Product Details

Technical Headlines

Unmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 4
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 2000 entries Switching capacity: 10 Gbit/s
DC Power over Ethernet (PoE)

Expanding Wired Connectivity for SOHO Networks

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

Brand NETGEAR

Data sheet

10G support: No
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Certification: CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE
VD, CCC
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Depth: 101 mm
Full duplex: Yes
Gigabit Ethernet (copper) ports quantity: 5
Heat dissipation: 304 BTU/h
Height: 29 mm
Housing material: Metal
Input current: 1.66 A
LED indicators: Activity, Link, PoE, Power
MAC address table: 2000 entries
Manual: Yes
Mean time between failures (MTBF): 6710127 h
Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Package height: 215 mm
Package weight: 1.3 kg
Package width: 269 mm
Packet buffer memory: 128 MB
Power consumption (typical): 2.89 W
Power over Ethernet (PoE): Yes
Power source: DC
Quality of Service (QoS) support: Yes
Rack mounting: No
Reset button: Yes
Source data-sheet: Icecat.biz
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 70 °C
Switch type: Unmanaged
Switching capacity: 10 Gbit/s
Weight: 410 g
Width: 158 mm
Product colour: Black
Master (outer) case width: 237 mm
Master (outer) case length: 469 mm
Master (outer) case height: 306 mm
Master (outer) case gross weight: 8.52 kg
Products per master (outer) case: 6 pc(s)
