D-Link D-Link 8-Port Fast Ethernet Unmanaged Desktop Switch
D-Link 8-Port Fast Ethernet Unmanaged Desktop Switch, Unmanaged, L2, Fast Ethernet (10/100), Full duplex
Technical Headlines

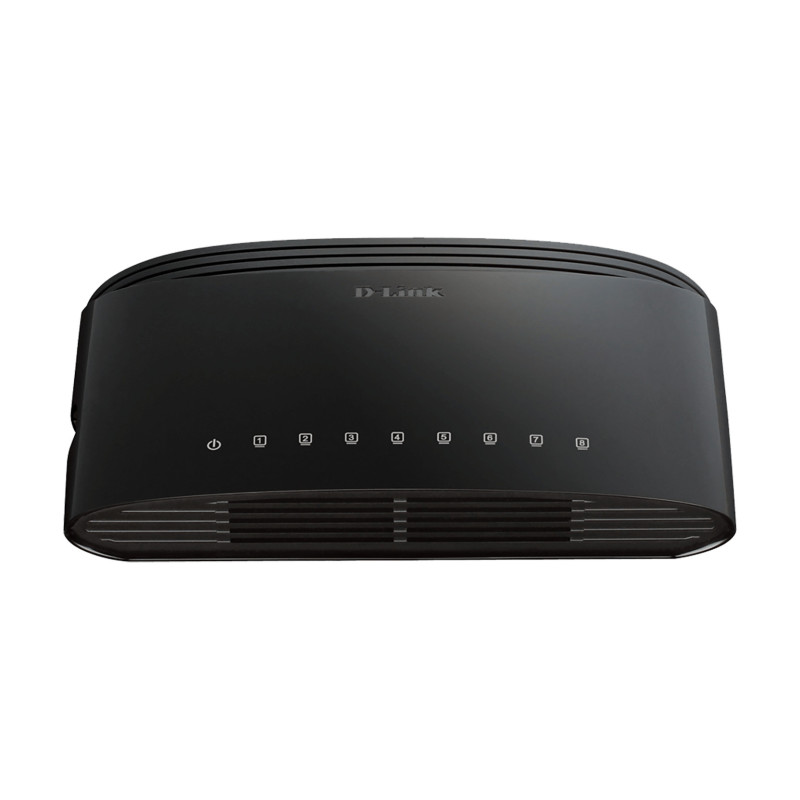

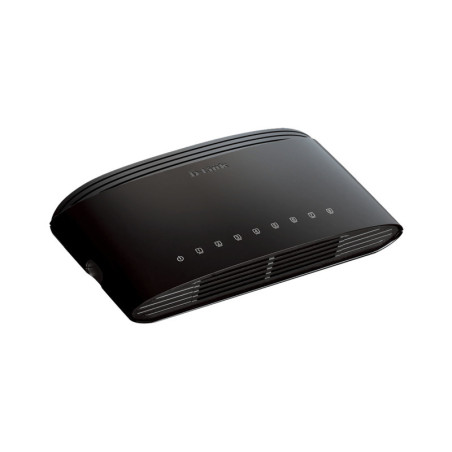

The DES-1008D 8-Port Fast Ethernet Unmanaged Desktop Switch is an 8-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-1008D to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.
8-Port 10/100Mbps Switch for SOHO
The DES-1008D is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.

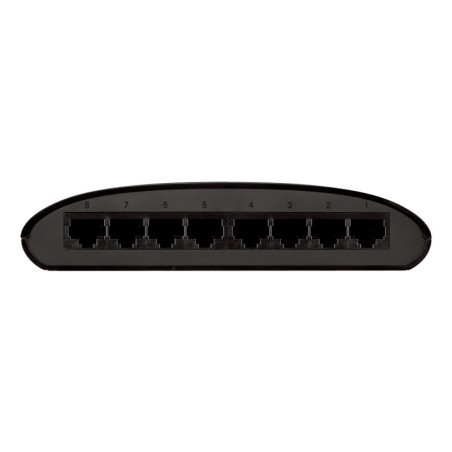

8 Auto-sensing 10/100Mbps Ports
The switch comes with 8 10/100Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet and integrate. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full- and half-duplex.
Flow Control for Secure Transmission
All ports support 802.3x flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full. Flow control is available in the full-duplex mode.
Auto-negotiation of MDI/MDIX Cross Over
All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.
SOHO Plug-and-Play
With 8 plug-and-play ports, the switch is a perfect choice for the small workgroup to upgrade performance in a client/server environment.
Desktop Power
With low-cost connection per-port, the switch can also be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.
- Unmanaged L2
- Basic switching RJ-45 Ethernet ports quantity: 8
- 10BASE-T, 100BASE-TX
- MAC address table: 2000 entries Switching capacity: 1.6 Gbit/s
- DC Power supply included
The DES-1008D 8-Port Fast Ethernet Unmanaged Desktop Switch is an 8-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-1008D to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.
8-Port 10/100Mbps Switch for SOHO
The DES-1008D is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.
8 Auto-sensing 10/100Mbps Ports
The switch comes with 8 10/100Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet and integrate. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full- and half-duplex.
Flow Control for Secure Transmission
All ports support 802.3x flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full. Flow control is available in the full-duplex mode.
Auto-negotiation of MDI/MDIX Cross Over
All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.
SOHO Plug-and-Play
With 8 plug-and-play ports, the switch is a perfect choice for the small workgroup to upgrade performance in a client/server environment.
Desktop Power
With low-cost connection per-port, the switch can also be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.
DES-1008D/B
Data sheet
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Certification
- FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX
- Data link protocols
- Ethernet, Fast Ethernet
- Depth
- 111.5 mm
- Height
- 990mm
- Housing material
- Zinc steel
- Input current
- 9/4.5 A
- Input voltage
- –36 - –72 V
- MAC address table
- 96000 entries
- Mean time between failures (MTBF)
- 9970080 h
- Networking standards
- Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
- Operating temperature (T-T)
- 8 - 35 °C
- Package weight
- 998 g
- Package width
- 985.6 mm
- Power source
- PoE, DC, AC
- Storage temperature (T-T)
- 8 - 85 °C
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
- Switching protocols
- VRRP, PVST/PVST+/PVRST
- Width
- 993 mm
- Product colour
- White,Black
Specific References
- EAN13
- 0790069217708
