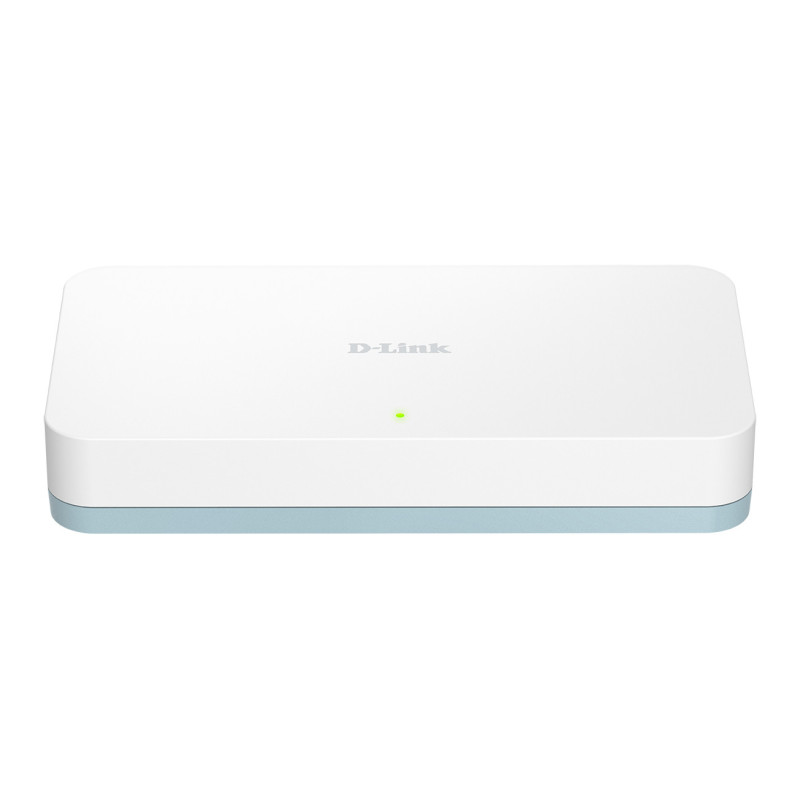

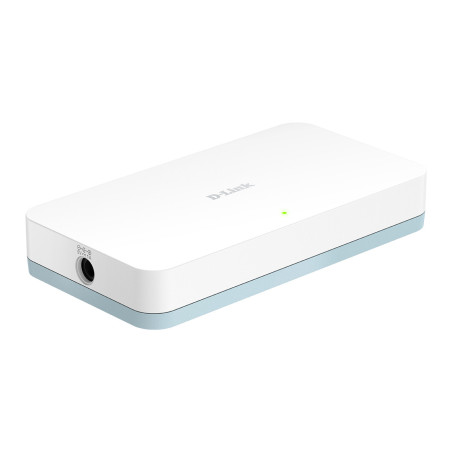

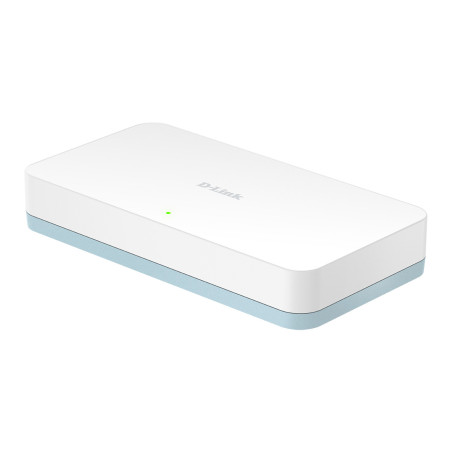

D-Link D-Link 8-Port Gigabit Unmanaged Desktop Switch

D-Link 8-Port Gigabit Unmanaged Desktop Switch, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex
Stock Due: 9th August
Reference: DGS-1008D/B
Reasons to Buy

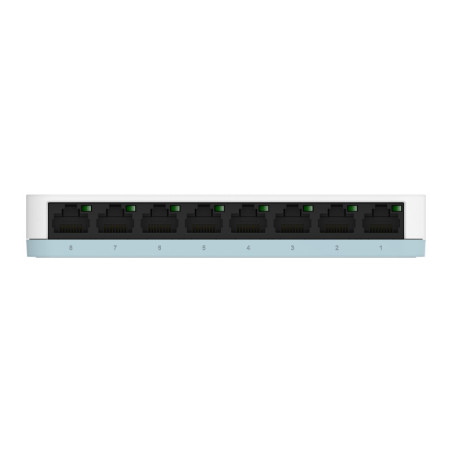

  • Eight Gigabit Ethernet LAN ports for high-speed wired connections
  • Cable Diagnostics Function notifies users of cable conditions through product LEDs
  • Green Ethernet Features
  • Reduces power to a port when no link is detected
  • Adjust power to a port by detecting the length of the connected Ethernet cable


Technical Headlines
  • Unmanaged L2
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 8000 entries Switching capacity: 16 Gbit/s


The DGS-1008D 8-Port Gigabit Desktop Switch is part of D-Link’s series of SOHO devices that allows you to easily expand and upgrade your network. D-Link’s Green Technology provides energy savings, reduces heat, and a longer product life without sacrificing performance or functionality. DGS-1008D provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. An energy-efficient power adapter (Energy Star Level V qualified), minimised use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.

Fast and Reliable Networking

The D-Link DGS-1008D 8-Port Gigabit Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to eight PCs or other devices. The DGS-1008D also features QoS, which prioritises network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. It’s stylish, easy-to-use, and comes IPv6-ready for a reliable network today and tomorrow.

Conserve Energy

The 8-Port Gigabit Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports. It also adjusts the amount of power supplied to a port according to the length of the connected Ethernet cable.

Environmentally-friendly

The 8-Port Gigabit Desktop Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimise the use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.
D-Link
DGS-1008D/B

Data sheet

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Connectivity technology
Wired
Dimensions (WxDxH)
192 x 118 x 30 mm
Electromagnetic emissions
CE Mark, FCC Class B
Full duplex
Yes
I/O ports
8 x 10/100/1000BASE-T
MAC address table
8000 entries
Maximum data transfer rate
1 Gbit/s
Networking features
10BASE-T, 100BASE-TX & 1000BASE- T
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package height
94 mm
Package weight
280 g
Package width
104 mm
Power consumption (typical)
4.5 W
Power LED
No
Power over Ethernet (PoE)
No
Power requirements
7.5V 1A
Rack mounting
No
Safety
CSA
Source data-sheet
Icecat.biz
Storage temperature (T-T)
-10 - 70 °C
Switch layer
L2
Switch type
Unmanaged
Switching capacity
16 Gbit/s
Weight
300 g
Shipping (inner) case net weight
1.9 kg
Shipping (inner) case gross weight
3.32 kg
Pallet gross weight (air)
350.2 kg
Pallet height (air)
2.06 m mm
Pallet gross weight (sea)
350.2 kg
Pallet height (sea)
2.06 m mm
Harmonized System (HS) code
85176990
Products per shipping (inner) case
10 pc(s)
Master (outer) cases per pallet (air)
100 pc(s)
Products per pallet (air)
1000 pc(s)
Pallet gross length
110 cm mm
Pallet gross width
120 cm mm
Master (outer) cases per pallet (sea)
100 pc(s)
Products per pallet (sea)
1000 pc(s)

Specific References

EAN13
0790069252730

DGS-1008DB.pdf

D-Link D-Link 8-Port Gigabit Unmanaged Desktop Switch Data Sheet

Download (348.55KB)
