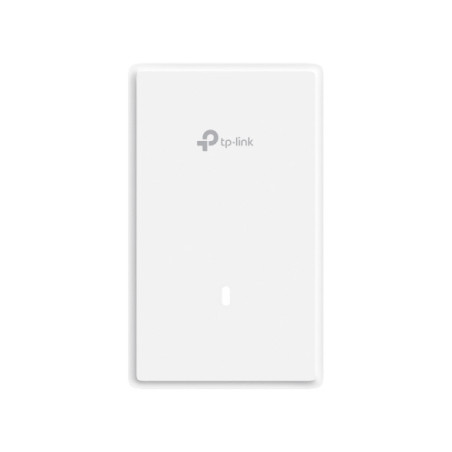

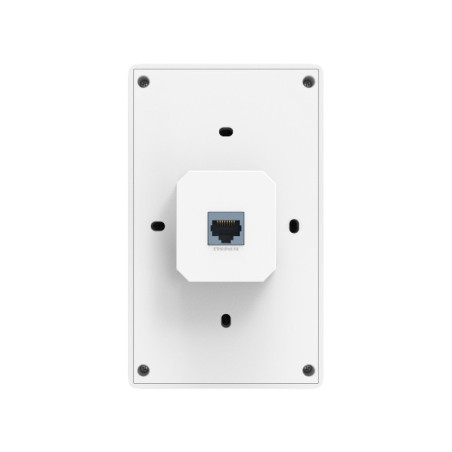

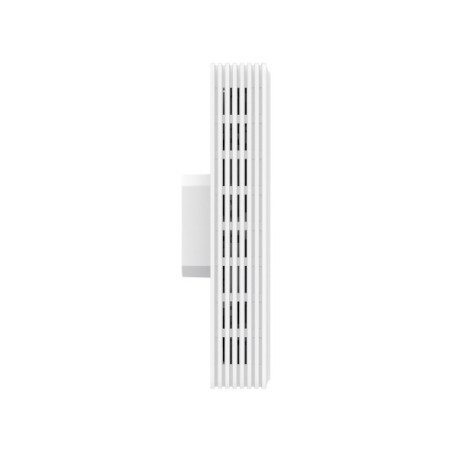

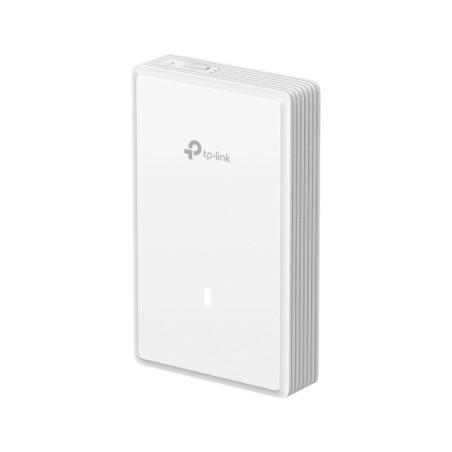

TP-Link EAP725-Wall
TP-Link EAP725-Wall, 2.4 GHz, 5 GHz, 5012 Mbit/s, 10,100,1000,2500 Mbit/s
Reasons to Buy
Technical Headlines
BE3600 WiFi 7 Wall
Plate Access Point for
Ultra-Fast Connectivity
Optimized Wired Performance
with 2.5G PoE Ports
With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as IP Phones, can be powered without the need for additional electrical cables.
Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and routers across multiple sites — all from a single interface.
- BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz)

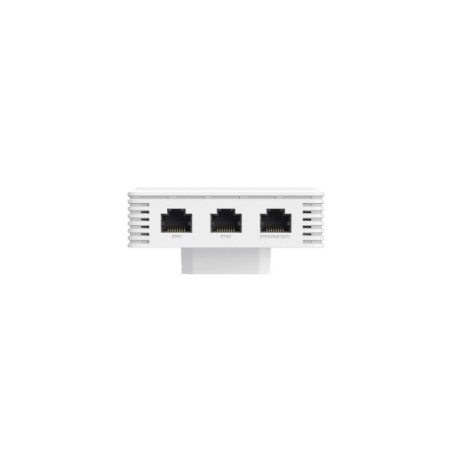

- 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports
- 160 MHz bandwidth enables many more simultaneous transmissions
- Multi-RUs ensure the high performance of your network
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming
Technical Headlines
- 2.4 GHz 688 Mbit/s
- 5 GHz 2882 Mbit/s
- Maximum data transfer rate: 5012 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
- Power over Ethernet (PoE)
- Antennas quantity: 4 Internal
BE3600 WiFi 7 Wall
Plate Access Point for
Ultra-Fast Connectivity
Optimized Wired Performance
with 2.5G PoE Ports
With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as IP Phones, can be powered without the need for additional electrical cables.
Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and routers across multiple sites — all from a single interface.
EAP725-WALL
Data sheet
- Antenna gain level (max)
- 5 dBi
- Antenna type
- Internal
- Antennas quantity
- 4
- Certification
- FCC, RoHs
- Compatible operating systems
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
- Depth
- 40 mm
- Ethernet LAN (RJ-45) ports
- 3
- Ethernet LAN data rates
- 10,100,1000,2500 Mbit/s
- Height
- 143 mm
- LED indicators
- Yes
- MAC address filtering
- Yes
- Maximum data transfer rate
- 5012 Mbit/s
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
- Number of users
- 250 user(s)
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Power over Ethernet (PoE)
- Yes
- Quantity per pack
- 1 pc(s)
- Reset button
- Yes
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Width
- 86 mm
- Product colour
- White
- BeamForming
- Yes
- Number of SSID supported
- 16
- Maximum data transfer rate (2.4 GHz)
- 688 Mbit/s
- Maximum data transfer rate (5 GHz)
- 2882 Mbit/s
- Remote Authentication Dial-In User Service (RADIUS)
- Yes
- 6 GHz
- No
Specific References
- EAN13
- 0810142823173
