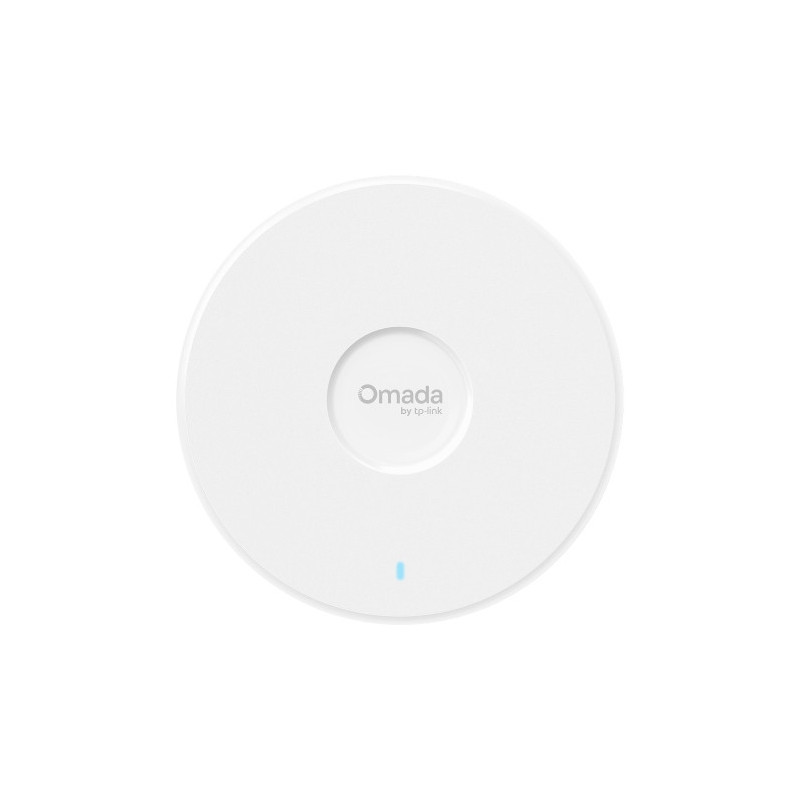

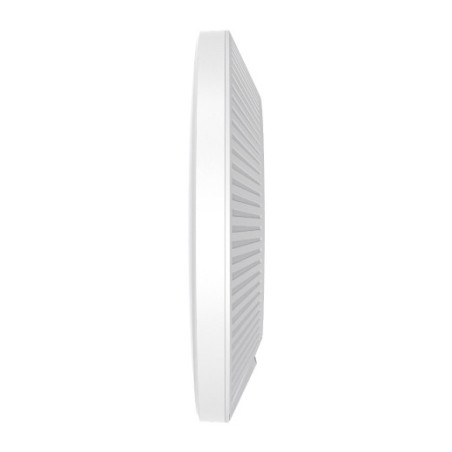

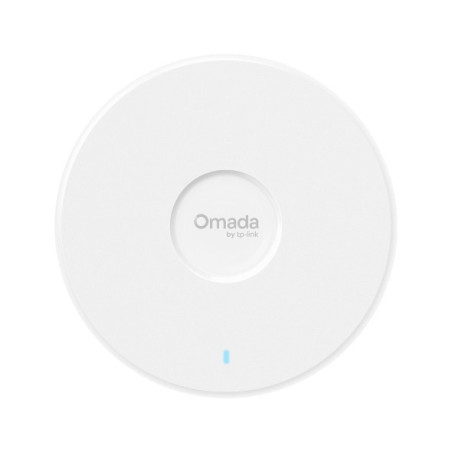

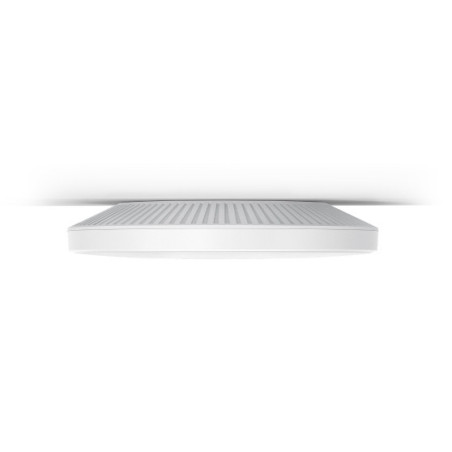

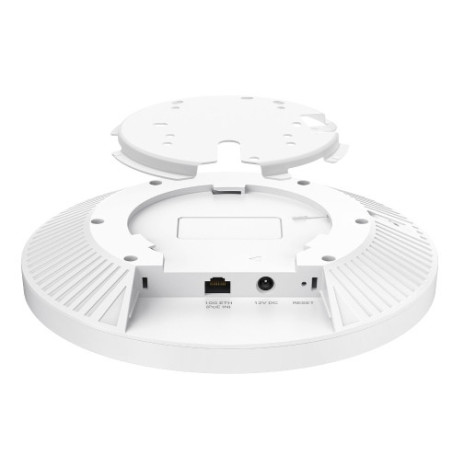

OMADA EAP787
OMADA EAP787, 2.4 GHz, 5 GHz, 6 GHz, WPA, WPA2, WPA3
Reasons to Buy
Technical Headlines
- Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
- Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance#
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- 1× 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 1750 ft² (160 m²)* for reliable and extensive wireless connectivity
Dedicated Spectral Analyzer Radio for Higher Efficiency in O&M
Optimized Wired Performance with 10G PoE++ Port
With a 10 Gigabit Ethernet Port, EAP787 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment.
Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
- Tri-Band 8-Stream Wi-Fi 7
- Wi-Fi Speeds up to 15.0 Gbps†
- Dedicated Spectral Analyzer Radio
- 1× 10G/2.5G Port
- 802.3bt/at PoE
- Omada Mesh & Seamless Roaming△
- Centralized Management
- Easy, Quick Setup
Technical Headlines
- 2.4 GHz 688 Mbit/s
- 5 GHz 8648 Mbit/s
- 6 GHz 5765 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
- WPA, WPA2, WPA3
- Power over Ethernet (PoE)
- Internal
- Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
- Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance#
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- 1× 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 1750 ft² (160 m²)* for reliable and extensive wireless connectivity
Dedicated Spectral Analyzer Radio for Higher Efficiency in O&M
Optimized Wired Performance with 10G PoE++ Port
With a 10 Gigabit Ethernet Port, EAP787 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment.
Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Data sheet
- Antenna type
- Internal
- Bluetooth
- Yes
- Certification
- CE, FCC, RoHS, IC
- DC-in jack
- Yes
- Depth
- 220 mm
- Flow control support
- Yes
- Frequency band
- 2.4 - 6 GHz
- Height
- 38.8 mm
- Input current
- 2.5 A
- LED indicators
- Yes
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
- Number of users
- 510 user(s)
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Power over Ethernet (PoE)
- Yes
- Quality of Service (QoS) support
- Yes
- Quantity per pack
- 1 pc(s)
- Quick start guide
- Yes
- Reset button
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- USB 2.0 ports quantity
- 0
- Width
- 220 mm
- Product colour
- White
- BeamForming
- Yes
- Maximum data transfer rate (2.4 GHz)
- 688 Mbit/s
- Maximum data transfer rate (5 GHz)
- 8648 Mbit/s
- Automatic channel scanning
- Yes
- 6 GHz
- Yes
- Maximum data transfer rate (6 GHz)
- 5765 Mbit/s
- Coverage area
- 1750 m²
Specific References
- EAN13
- 1210002600576
