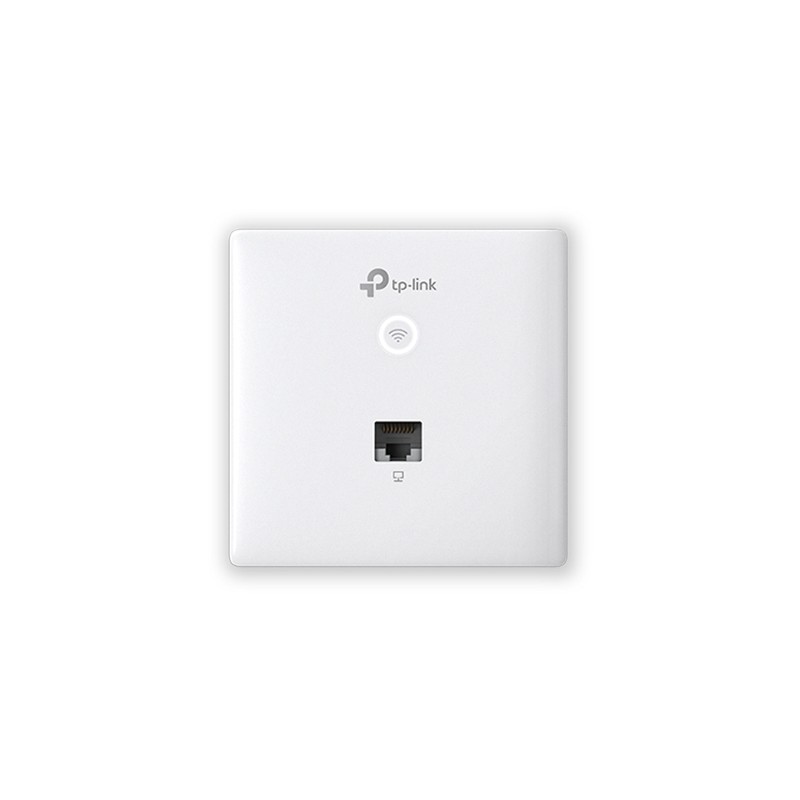

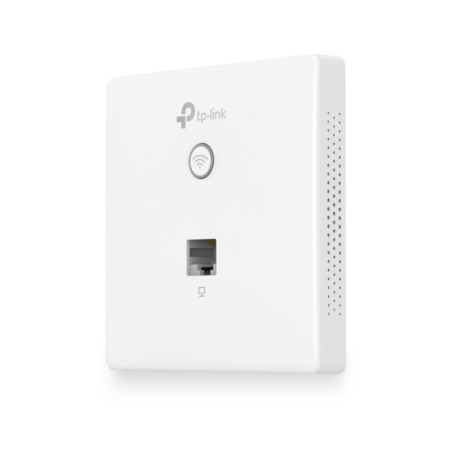

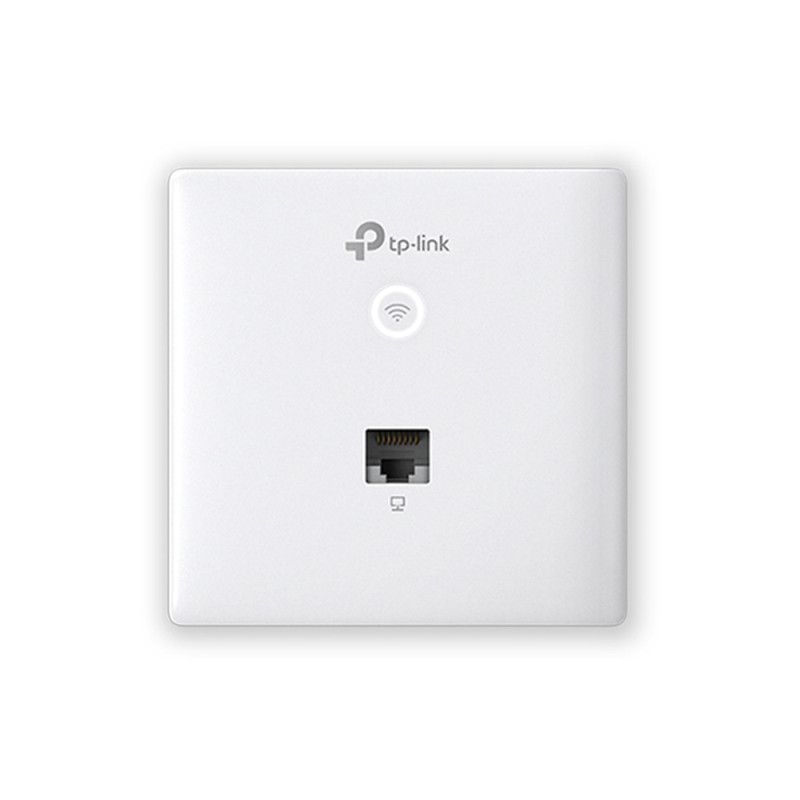

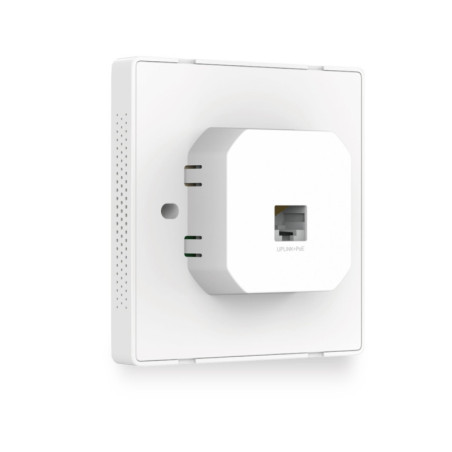

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point, 2.4 GHz, 5 GHz, 1167 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK, 10,100,1000 Mbit/s
Reasons to Buy
Technical Headlines
Unprecedented Thin Design with 11mm
Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.
High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.
Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.
Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†
- Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink)
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories
- Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room
- Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
Technical Headlines
- 2.4 GHz 300 Mbit/s
- 5 GHz 867 Mbit/s
- Maximum data transfer rate: 1167 Mbit/s
- IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
- 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal Integrated antenna
Unprecedented Thin Design with 11mm
Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.
High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.
Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.
Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
EAP230-WALL
Data sheet
- Antenna gain level (max)
- 3.6 dBi
- Antenna type
- Internal
- Antennas quantity
- 2
- Cabling technology
- 10/100/1000Base-T(X)
- Compatible operating systems
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Depth
- 86.8 mm
- Frequency band
- European Union: 2.4122.472(13 channel); 5.1805.240(4 channel); 5.5005.700(8 channel); . Ret o World (Actual channel deignated by electing country UI): 2.4122.472(13 channel); 5.1805.240(4 channel); 5.2605.320(4 channel); 5.5005.700(11 channel); 5.7455.825
- Height
- 990mm
- Maximum data transfer rate
- 1167 Mbit/s
- Networking standards
- Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
- Operating temperature (T-T)
- 8 - 35 °C
- Package weight
- 998 g
- Package width
- 985.6 mm
- Power consumption (typical)
- 9 W
- Security algorithms
- 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
- Storage temperature (T-T)
- 8 - 85 °C
- WAN connection
- RJ-45, Wi-Fi
- Width
- 993 mm
- Product colour
- White,Black
- Transmitting power (CE)
- ≤20 dBm (2.4GHz) ≤23 dBm (5GHz) dBm
- Service Set Identifier (SSID) features
- SSID broadcast,SSID broadcast on/off
- Maximum data transfer rate (2.4 GHz)
- 9176 Mbit/s
Specific References
- EAN13
- 6935364089498
