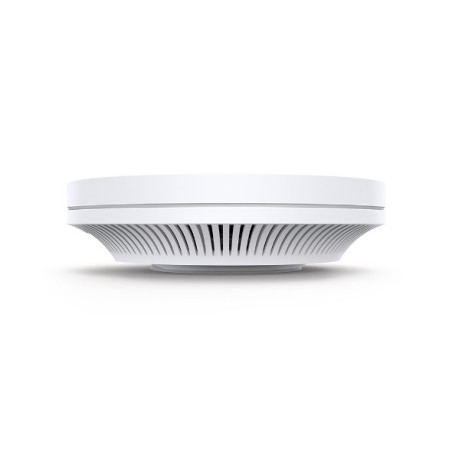

TP-Link AX5400 Ceiling Mount WiFi 6 Access Point
TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point, 2.4 GHz, 5 GHz, 5400 Mbit/s, 2500 Mbit/s
Reasons to Buy
Technical Headlines
High-End Business WiFi 6 to Power Up Your Business

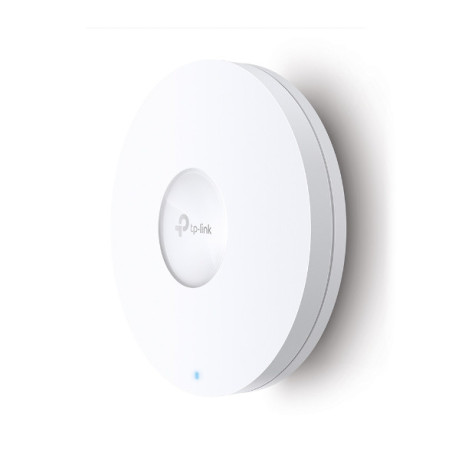

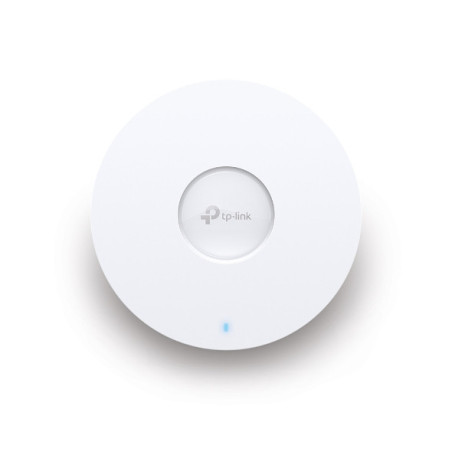

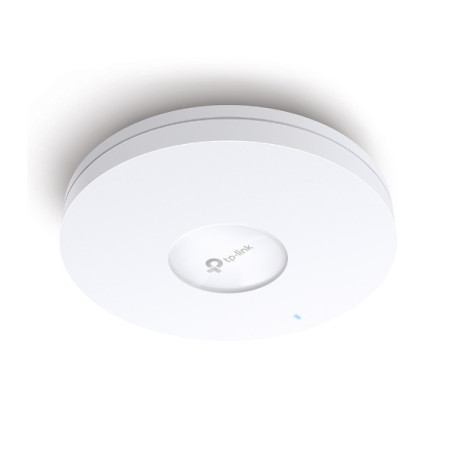

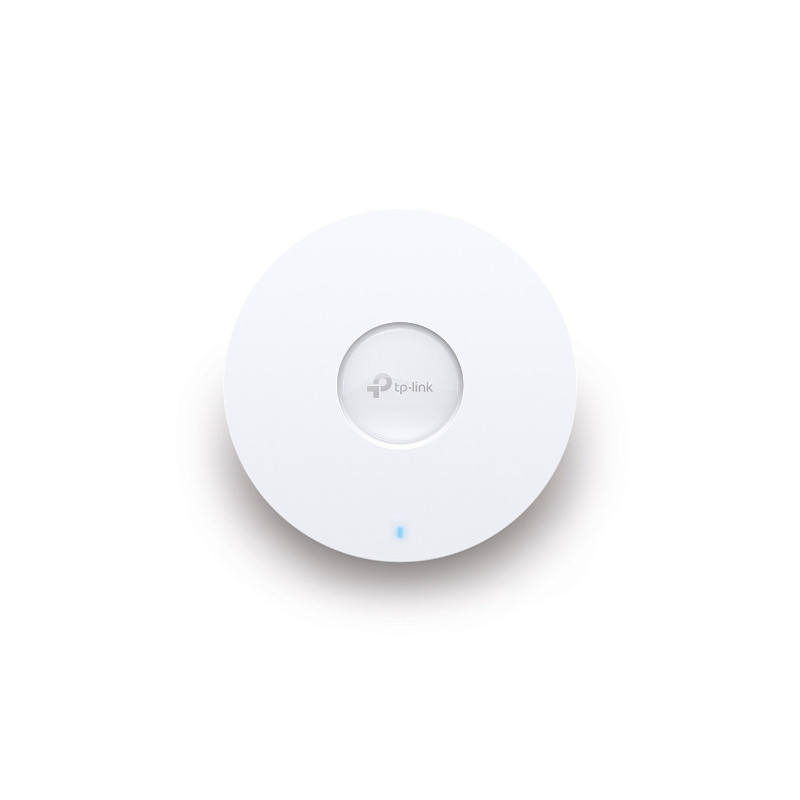

AX5400 Ceiling Mount Wi-Fi 6 Access Point
AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160
Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference
Omada Mesh Technology
More flexible and convenient wireless deployment§
Seamless Roaming
Uninterrupted streaming when moving between APs§
PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

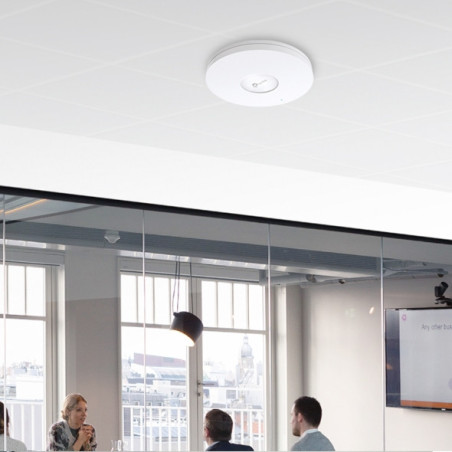

Designed for Business Environments
Requiring High-Performance WiFi
High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

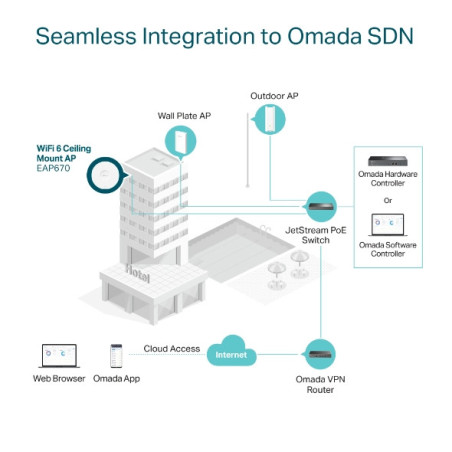

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

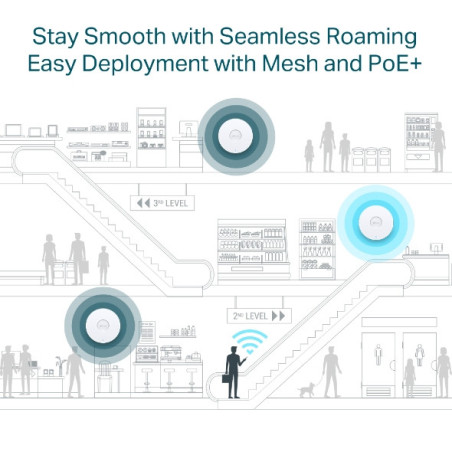

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
- Blazing-Fast WiFi 6 Speeds - Delivers astonishing wireless speeds of up to 54 Gbps powered by the latest WiFi 6 technology
- Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag
- Long-Range Coverage - Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
- Optimized Network Experience - Ensures uninterrupted WiFi connections with seamless roaming and Omada Mesh technology*
- Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management
Technical Headlines
- 2.4 GHz 574 Mbit/s
- 5 GHz 4804 Mbit/s
- Maximum data transfer rate: 5400 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Power over Ethernet (PoE)
- Antennas quantity: 6 Internal
High-End Business WiFi 6 to Power Up Your Business
AX5400 Ceiling Mount Wi-Fi 6 Access Point
AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160
Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference
Omada Mesh Technology
More flexible and convenient wireless deployment§
Seamless Roaming
Uninterrupted streaming when moving between APs§
PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations
Designed for Business Environments
Requiring High-Performance WiFi
High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
EAP670
Data sheet
- Antenna gain level (max)
- 5 dBi
- Antenna type
- Internal
- Antennas quantity
- 6
- Certification
- CE, FCC, RoHS
- Depth
- 243 mm
- Ethernet LAN data rates
- 2500 Mbit/s
- Firmware upgradeable
- Yes
- Frequency band
- 2.4 - 5 GHz
- Height
- 64 mm
- Input current
- 1.5 A
- International Protection (IP) code
- IP67
- LED indicators
- Yes
- Maximum data transfer rate
- 5400 Mbit/s
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Number of users
- 250 user(s)
- Package height
- 82 mm
- Package weight
- 1.32 kg
- Package width
- 302 mm
- Power over Ethernet (PoE)
- Yes
- Quality of Service (QoS) support
- Yes
- Quantity per pack
- 1 pc(s)
- Reset button
- Yes
- Source data-sheet
- Icecat.biz
- Web-based management
- Yes
- Width
- 243 mm
- Product colour
- White
- Service Set Identifier (SSID) features
- Multiple SSIDs
- BeamForming
- Yes
- Number of SSID supported
- 16
- Maximum data transfer rate (2.4 GHz)
- 574 Mbit/s
- Maximum data transfer rate (5 GHz)
- 4804 Mbit/s
- Automatic channel scanning
- Yes
- Antenna direction type
- Omni-directional
- Remote Authentication Dial-In User Service (RADIUS)
- Yes
- Harmonized System (HS) code
- 85176990
- 6 GHz
- No
Specific References
- EAN13
- 4895252506181
