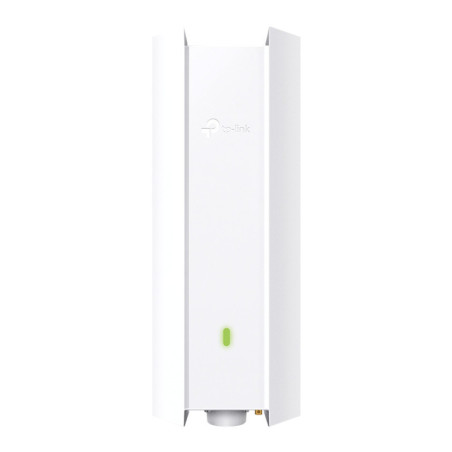

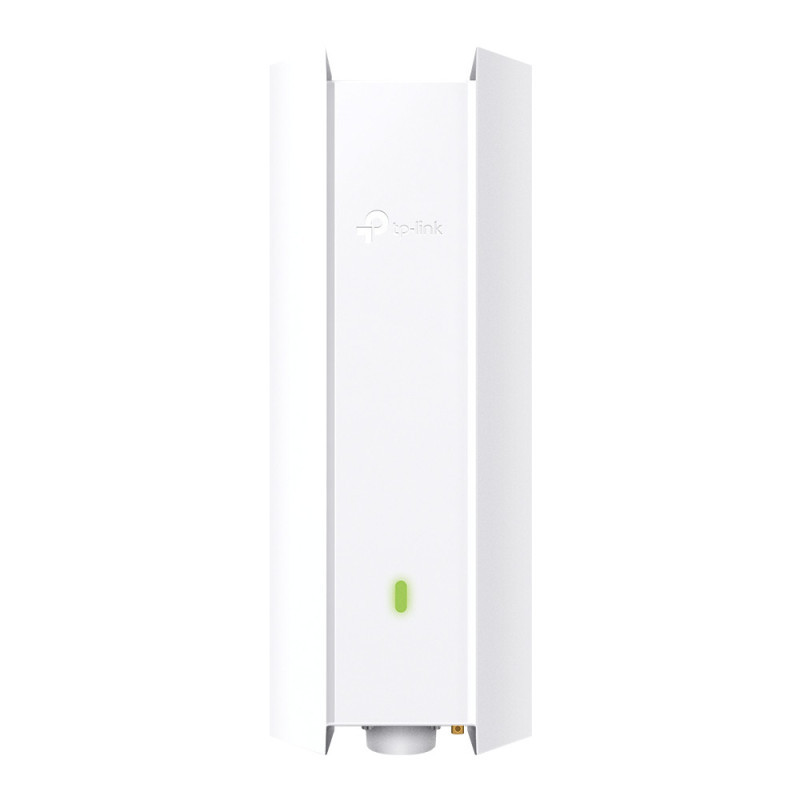

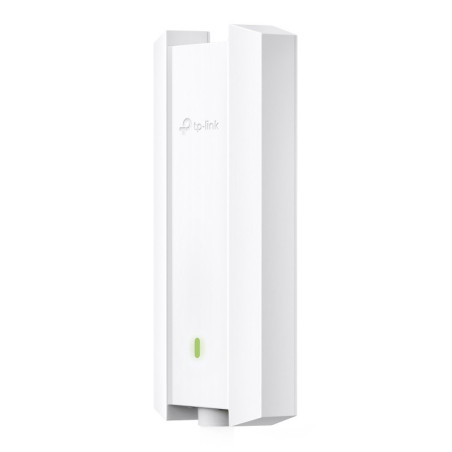

TP-Link AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point, 2.4 GHz, 5 GHz, 1800 Mbit/s, SNMP, SNMPv2, SNMPv3, SSH, 10,100,1000 Mbit/s

In Stock

Description
Product Details

Reasons to Buy

Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz
Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
High-density connectivity up to 1,000+ clients
Long-range coverage with the high-power amplifier and smart antennas
Advanced Functions: Centralized management, Omada mesh, and seamless roaming
PoE+ Powered: Supports both 802.3at PoE (adapter not included)

Technical Headlines

2.4 GHz 574 Mbit/s
5 GHz 1201 Mbit/s
Maximum data transfer rate: 1800 Mbit/s
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
SNMP, SNMPv2, SNMPv3, SSH
Power over Ethernet (PoE)
Antennas quantity: 2 Internal Integrated antenna

Long-Range, High-Speed WiFi 6
Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.

Explore More with Smart Antennas
Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD’s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.

Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.

Flexible Deployment with Omada Mesh and PoE Support

Seamless Integration into Omada SDN

Brand TP-Link

Reference EAP623-OUTDOOR HD

Data sheet

Antenna type: Internal
Antennas quantity: 2
Cabling technology: 10/100/1000Base-T(X)
Certification: CE, FCC, RoHS
Depth: 106.5 mm

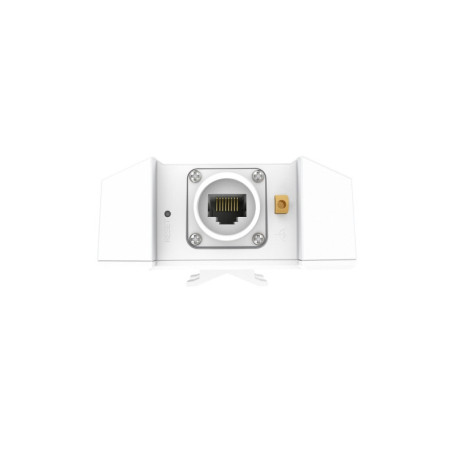

Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 - 5 GHz
Height: 56.8 mm
LED indicators: Yes
MAC address filtering: Yes
Maximum data transfer rate: 1800 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of users: 1020 user(s)
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -30 - 70 °C
Power over Ethernet (PoE): Yes
Quality of Service (QoS) support: Yes
Quantity per pack: 1 pc(s)
Quick start guide: Yes
Reset button: Yes
Security algorithms: SNMP, SNMPv2, SNMPv3, SSH
Source data-sheet: Icecat.biz
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
USB 2.0 ports quantity: 0
Web-based management: Yes
Width: 280.4 mm
Product colour: White
BeamForming: Yes
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Automatic channel scanning: Yes
Antenna direction type: Omni-directional
Power over Ethernet (PoE) type supported: Passive PoE
Remote Authentication Dial-In User Service (RADIUS): Yes
Antenna features: Integrated antenna
6 GHz: No
