550mm Deep RackyRax Wall Mounted Data Cabinet

RackyRax 550mm Deep Wall Mounted Data Cabinet

550mm Deep Wall Mounted Network Data Cabinets - Available in Black from 6U to 21U


In Stock

The compact design of the Rax 19” Wall Mounting Cabinets make them ideal for smaller networks and workgroups.

The cabinets are available in various sizes and are supplied fully assembled. Each cabinet comprises a welded steel frame and adjustable front and rear 19” mounting profiles.

A gland plate is situated in the top and bottom of the cabinet. The cabinets feature ventilation slots top and bottom; and have a lockable glass front door, and removable sides. The cabinet frameworks are finished in a high quality attractive black.

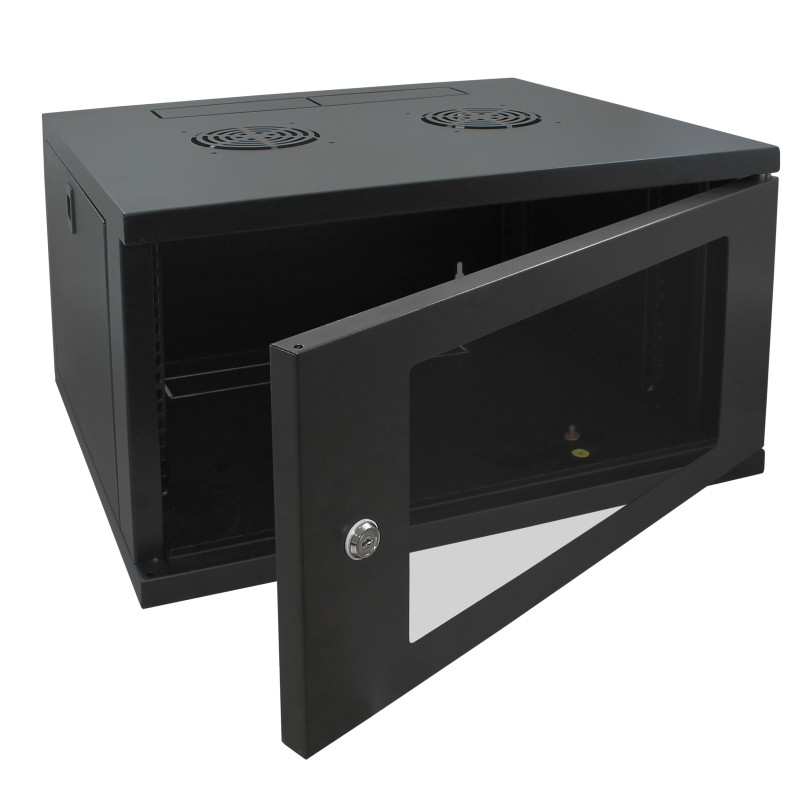

6u 450mm Deep Data Cabinet shown for illustration


  • Supplied fully assembled
  • Ventilated top
  • Adjustable mounting posts
  • Lockable and removable sides
  • Cable access top and bottom
  • Lockable glass front door

Dimensions By U Height

U HeightSize (HxWxD)Net Weight
6U348x550x550 mm15.5 Kg
9U481x550x550 mm19 kg
12U615x550x550 mm22.5 Kg
15U748x550x550 mm26 Kg
18U881x550x550 mm29.5 Kg
21U1015x550x550 mm33 Kg

Maximum Internal Depth is 440mm
Cable EntryTop & Bottom
