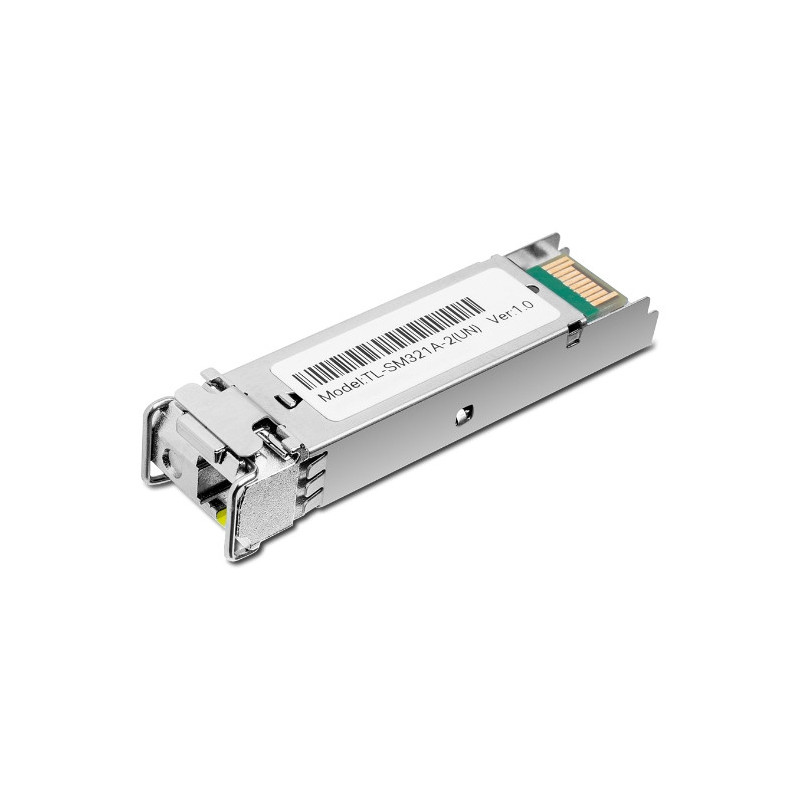

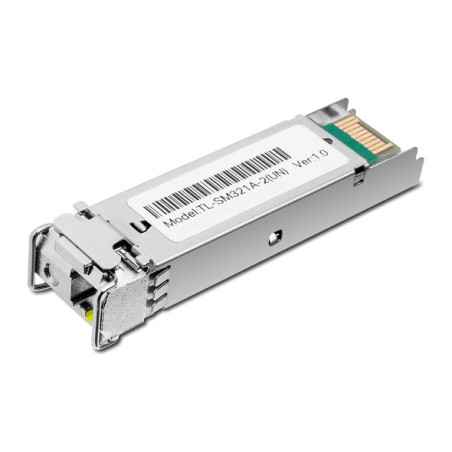

TP-Link TL-SM321A
TP-Link TL-SM321A, Fiber optic, 1250 Mbit/s, SFP, LC (UPC), 9/125 µm, BX
Reasons to Buy
Technical Headlines

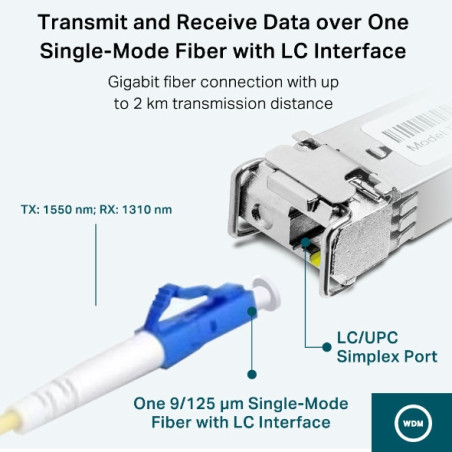

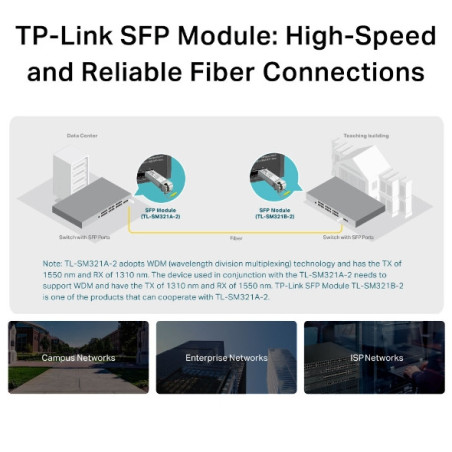

TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km (6.2 miles) paired with TP-LINK TL-SM321A, MC112CS, or compatible third-party WDM module.
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Paired with TL-SM321B or CM112CM

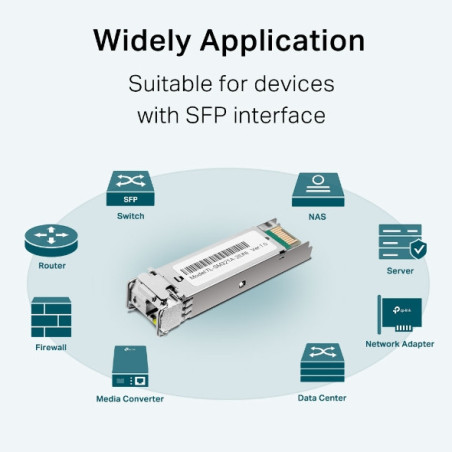

- Compatible with T3700 series, T2700 series, T2600 series, T2500 series, T1700 series, T1600 series, T1500 series, 2/3/5 series switches and MC220L
Technical Headlines
- SFP Fiber optic 1250 Mbit/s
- Hot-swap
- Input voltage: 3.3 V
TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km (6.2 miles) paired with TP-LINK TL-SM321A, MC112CS, or compatible third-party WDM module.
Data sheet
- Certification
- CE, FCC
- Fiber ethernet cabling technology
- 1000BASE
- Fiber optic connector
- LC (UPC)
- Input voltage
- 3.3 V
- Interface type
- SFP
- Maximum data transfer rate
- 1250 Mbit/s
- Maximum transfer distance
- 1000 m
- Networking standards
- IEEE 802.3z
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 70 °C
- Package height
- 38.5 mm
- Package weight
- 60 g
- Package width
- 81.5 mm
- Quantity per pack
- 1 pc(s)
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 80 °C
- Product colour
- Metallic
- Fiber cable diameters supported (core/cladding)
- 9/125 µm
- Harmonized System (HS) code
- 85369010
- SFP transceiver standard
- BX
- Compliance certificates
- RoHS
Specific References
- EAN13
- 0845973030957
