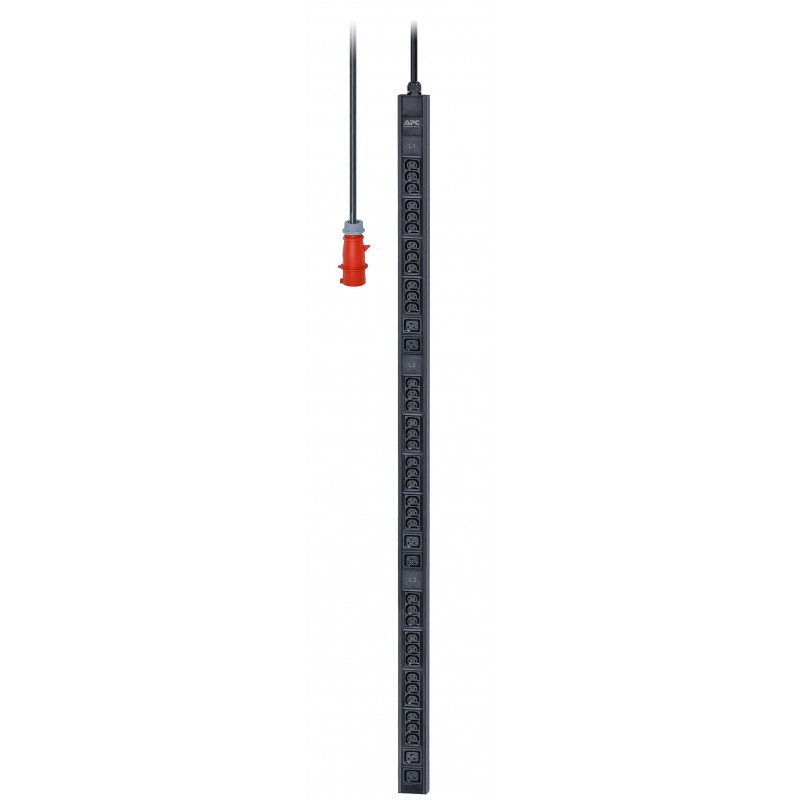

APC EPDU1216B
EPDU1016M, Zero U, 16A, 230V, 36x C13, 6x C19, 1506x62x44 mm, Black
Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.
Cost Savings
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
EPDU1216B
Data sheet
- AC input frequency
- 50/60 Hz
- AC outlet types
- C13 coupler,C19 coupler
- AC outlets quantity
- 42 AC outlet(s)
- Cable length
- 2.5 m
- Certification
- CE, TÜV
- Depth
- 44 mm
- Height
- 1506 mm
- Housing material
- Aluminium
- Load capacity
- 11000 VA
- Manual
- Y
- Maximum current
- 16 A
- Maximum input current per phase
- 16 A
- Mounting
- vertical
- Nominal input voltage
- 400 V
- Nominal output voltage
- 230 V
- Non-operating altitude
- 0 - 15000 m
- On/off switch
- N
- Operating altitude
- 0 - 3000 m
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -5 - 45 °C
- Package height
- 1660 mm
- Package weight
- 4280 g
- Package width
- 160 mm
- PDU types
- Basic
- Power plug
- IEC 60309
- Rack capacity
- 0U
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -25 - 65 °C
- Type
- ZIP
- Weight
- 3080 g
- Width
- 62 mm
- Product colour
- Black
Specific References
- EAN13
- 0731304405054
