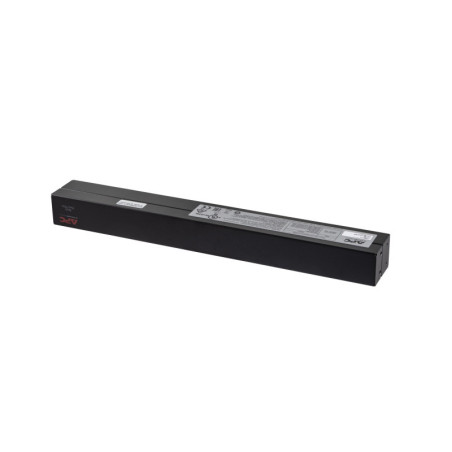

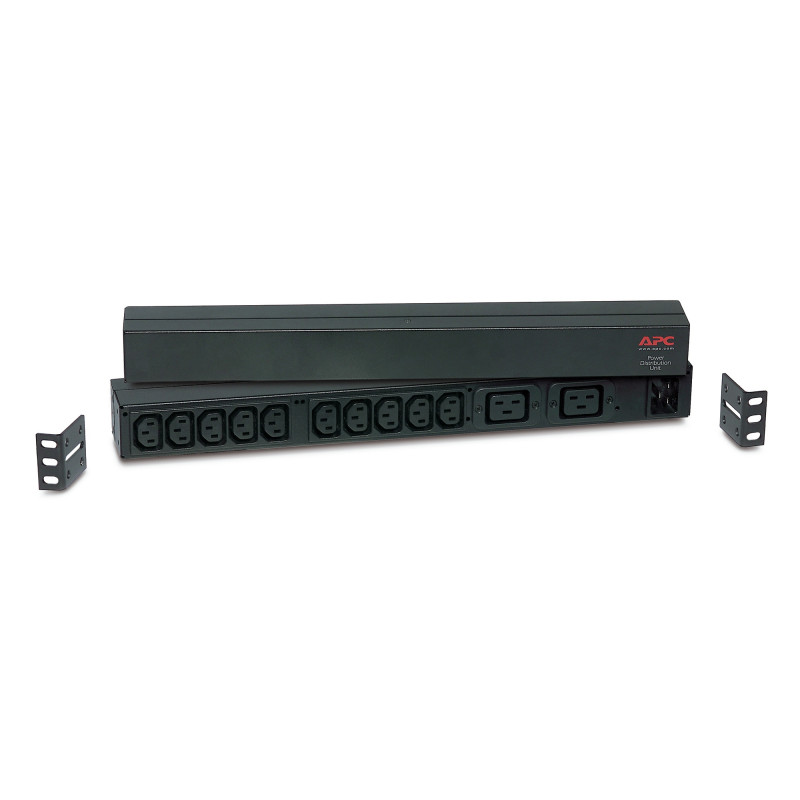

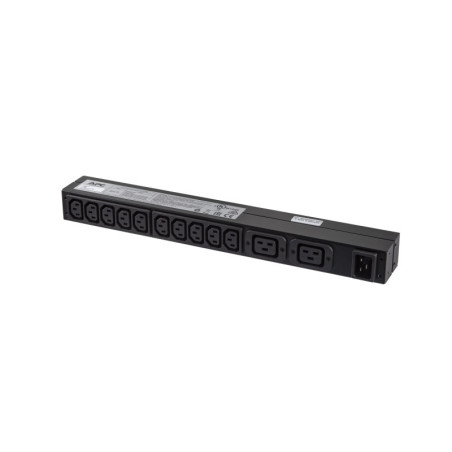

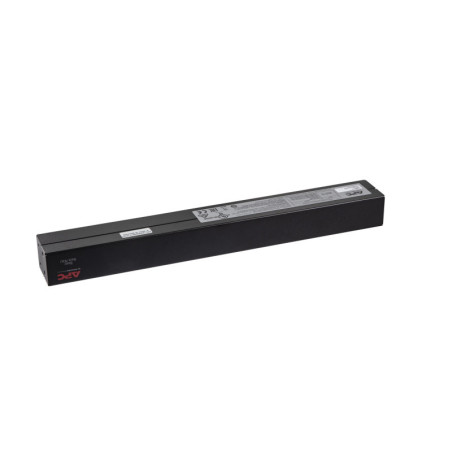

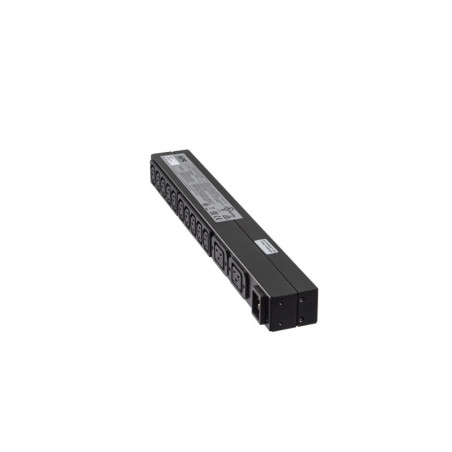

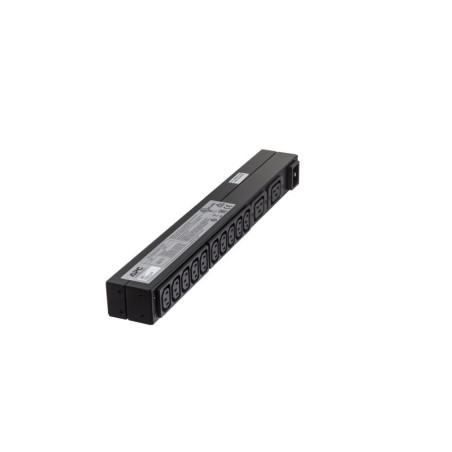

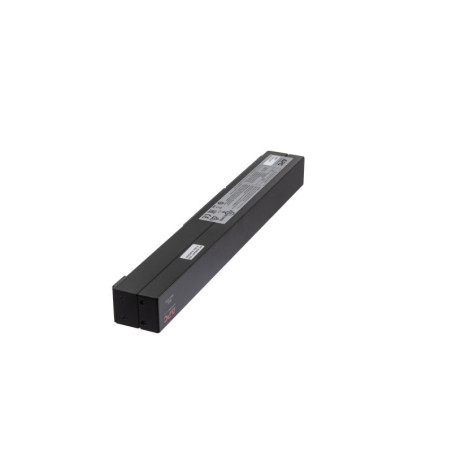

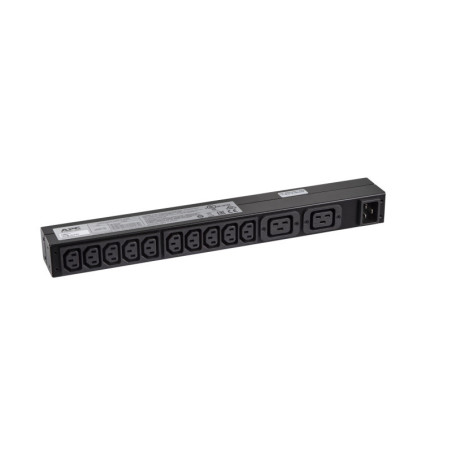

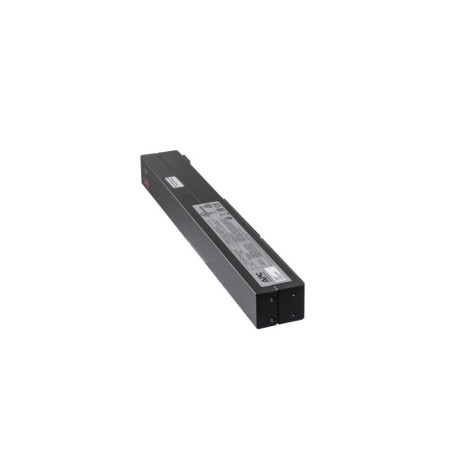

APC RACK PDU BASIC 1 U 16A 230V

APC RACK PDU BASIC 1 U 16A 230V, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 12 AC outlet(s)

In Stock

Description
Product Details

Technical Headlines

Single-phase Basic 0U/1U Black
12 AC outlet(s) C13 coupler, C19 coupler
3680 W

Description:

APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19

Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities

Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual

Output Voltage(s) (main only) - 120, 208, 230 V

Maximum Total Current Draw per Phase - 16 A

Output Connections - (10)IEC 320 C13; (2)IEC 320 C19

Always on Outlets - 12
Overload Protection

Input:

Nominal input voltage - 120, 208, 230

Input frequency (Hz) - 50/60 Hz

Input Connection Type - IEC-320 C20

Cord Length 8.2 feet ( 2.5 meters )

Acceptable Input Voltage - 90-250 VAC

Maximum Line Current per phase - 16.0 A

Maximum Input Current per phase - 16.0 A

Load Capacity - 3680

Brand APC

Reference AP9559

Data sheet

AC outlet types: C13 coupler, C19 coupler
AC outlets quantity: 12 AC outlet(s)
Cable length: 2.5 m
Depth: 57.2 mm
Height: 990mm
I/O ports: • 2 x USB.
• 1 x eSATA.
Load capacity: 9200 VA
Maximum input current per phase: 63 A
Mounting: Yes
Operating temperature (T-T): 8 - 35 °C
Power plug: Type G (BS 1363)
Rack capacity: 9U
Storage temperature (T-T): 8 - 85 °C
Type: ZIP
Weight: VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
Width: 993 mm
Product colour: White,Black
